Operation
54 3A2098S

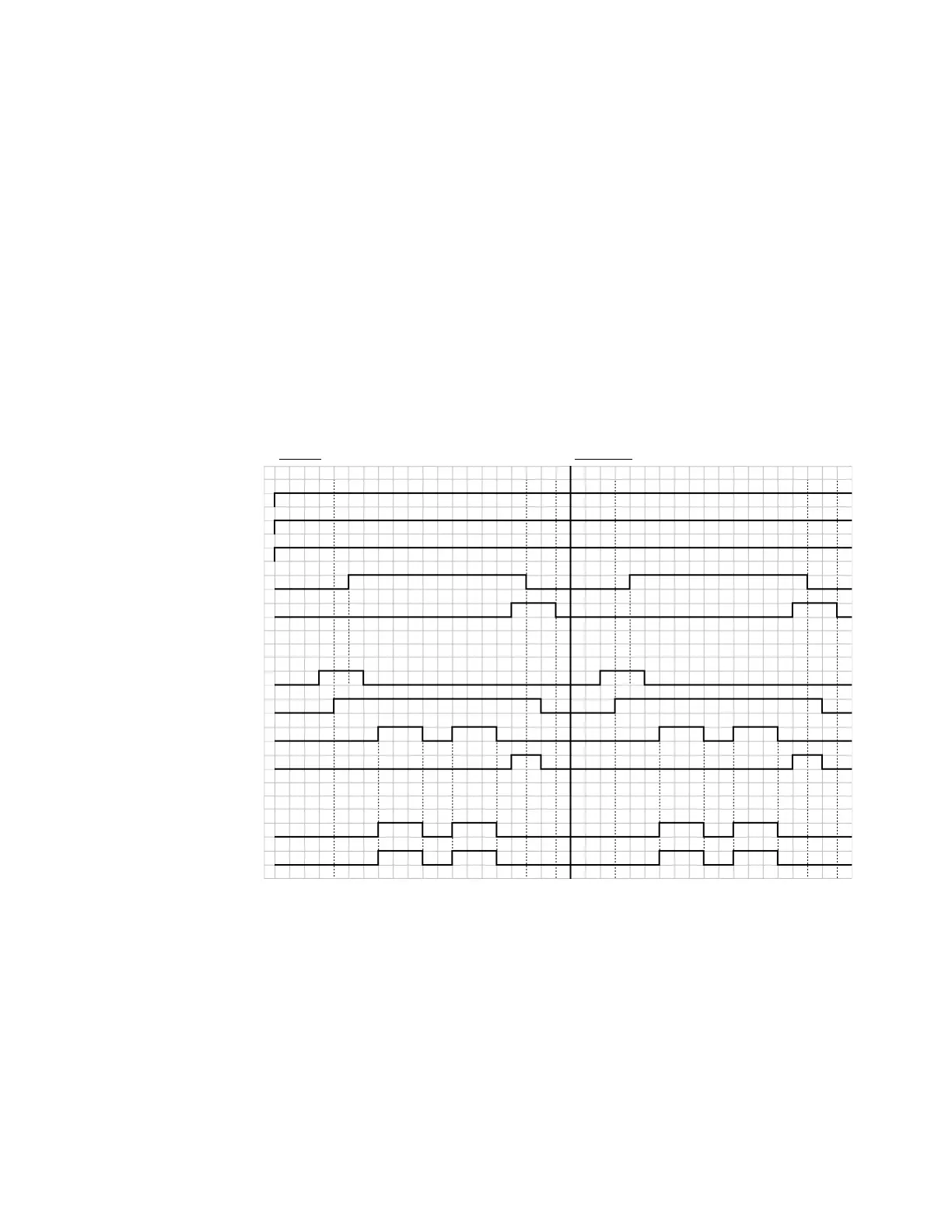

Typical Job Cycle Chart
NOTE: Swirl can be turned on at any point inside of or
outside of a job. Allow time for the swirl to reach desired
RPM. If possible, verify Swirl speed through the
automation interface prior to opening the dispense
valve.
NOTE: A 50ms delay is suggested between each
signal.
NOTE: Dispense Complete must be strobed, not held
high in order to avoid an advisory.
Dispenser (Fluid Plate) No Alarm
Dispenser (Fluid Plate) No Error
Dispenser (Fluid Plate) In Process
Volume OK
Style Bits
Style Strobe
Automation Outputs (PCF Inputs)
Dispense Valve X On
Dispense Complete
Regulator Active (Precharge = 0)
PCF State
Dispense Valve X Open
Dispense Ready
Automation Inputs (PCF Outputs)
First Job
Second Job
To Next Page
