Operation
22 3A8572B
Operation

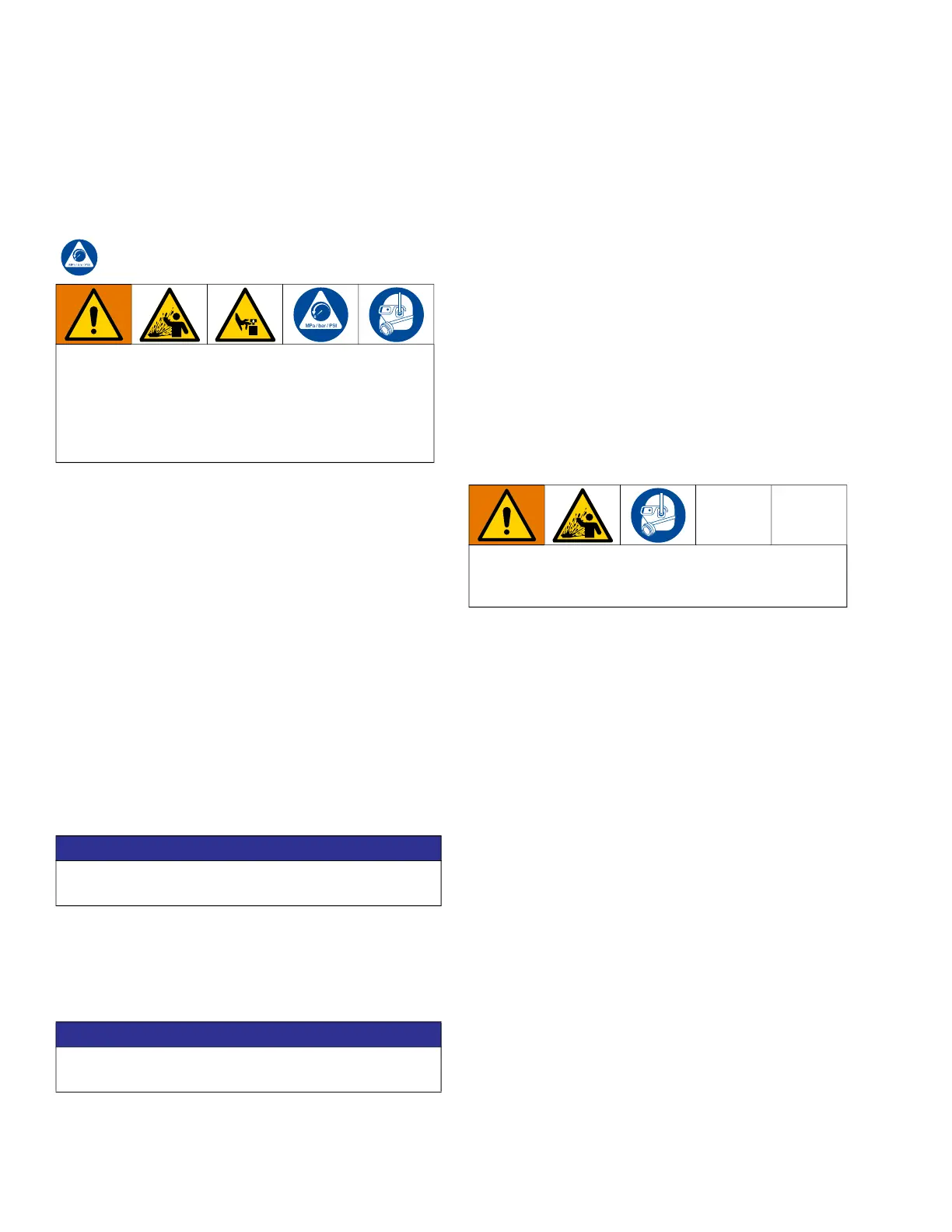

Pressure Relief Procedure
Follow the Pressure Relief Procedure whenever
you see this symbol.
1. Turn the fluid output control knob (K) to off (0) and
disconnect power to the system.
2. Close the fluid shutoff valve (H).
3. Open the fluid drain valve (G) to relieve fluid
pressure. Prepare a container to catch the
drainage.
4. Leave the fluid drain valve (G) open until the system
is ready to be pressurized.
Before Each Use
Tighten Fasteners
Check and tighten all fasteners before operating the
equipment. Re-torque as needed. Follow Torque
Fasteners, page 39.
Tighten Connections
Check and tighten all fluid connections before operating
the equipment. Replace worn or damaged parts as
needed.
Flush the Equipment
Flush the equipment before each use. Determine
whether to disassemble and clean individual parts or
simply flush the equipment with a compatible solvent.
To simply flush the equipment with a compatible
solvent, follow Start the Equipment, page 22, and
Flush the Equipment, page 28.
To disassemble and clean individual parts, see the
applicable repair procedure. See Repair, starting on
page 32.
Start the Equipment
Prepare the Equipment for Startup
1. Turn the control knob (K) to off (0).
2. Confirm that the equipment is properly grounded.
See Grounding, page 15.
3. Check and tighten all fasteners and connections
before operating the equipment. Replace worn or
damaged parts as needed.
4. Insert the suction end of the fluid supply line (F) into
the fluid to be dispensed.
5. Insert the outlet end of the fluid outlet line (J) into
the end container.
6. Close the fluid drain valve (G).
7. Ensure all fluid shutoff valves (H) are open.
8. If the fluid outlet line (J) has a dispensing device,
hold the dispensing valve open into the end
container.
This equipment stays pressurized until pressure is
manually relieved. To help prevent serious injury
from pressurized fluid, such as splashing fluid and
moving parts, follow the Pressure Relief Procedure
when you stop operating and before cleaning,
checking, or servicing the equipment.
NOTICE
To avoid pump damage, do not over-torque the
fasteners on the equipment.
NOTICE
Firmly tighten all connections to avoid leaks and
damage to equipment parts.
To prevent serious injury from splashing fluid,
ensure the control knob (K) is set to off (0) before
connecting the equipment to a power source.
To Next Page
