Torque Fasteners
3A8572B 39
Torque Fasteners
Torque Instructions
To ensure proper sealing, torque fasteners using the
following procedure.
1. Start all fasteners a few turns.
2. Follow the torque sequence to turn down each
fastener until each fastener is slightly under the
specified torque. See Torque Sequence, page 39.
3. Follow the torque sequence to turn each fastener
by 1/2 turn or less until each fastener is at the
specified torque. See Torque Sequence, page 39.
Torque Sequence
Fully torque all fasteners (7, 7b, if applicable) on the
fluid covers (3) before torquing the fasteners (6, 6b, if
applicable) on the manifolds (4, 5).
Follow Torque Instructions, page 39.
NOTICE
To avoid pump damage, do not over-torque the
fasteners on the equipment.

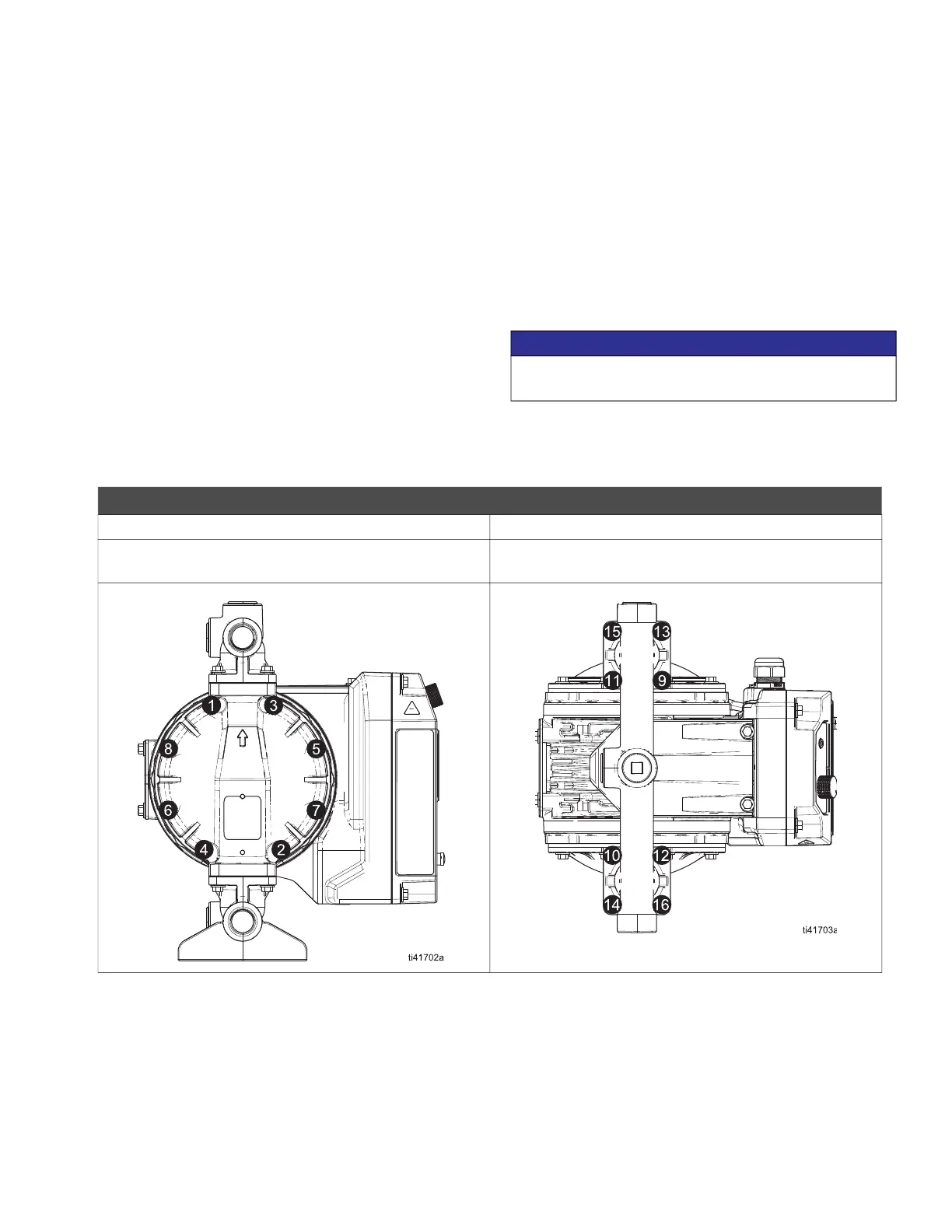

Torque Sequence for i30 (QTC) Models
Fluid Covers (3) Manifolds (4, 5)
Torque fasteners (7, 7b, if applicable) to 110 in-lb
(12 N•m).
Torque fasteners (6, 6b, if applicable) to 100 in-lb
(11 N•m).
