Graco QUANTM i30 - Page 40

Torque Fasteners
40 3A8572B

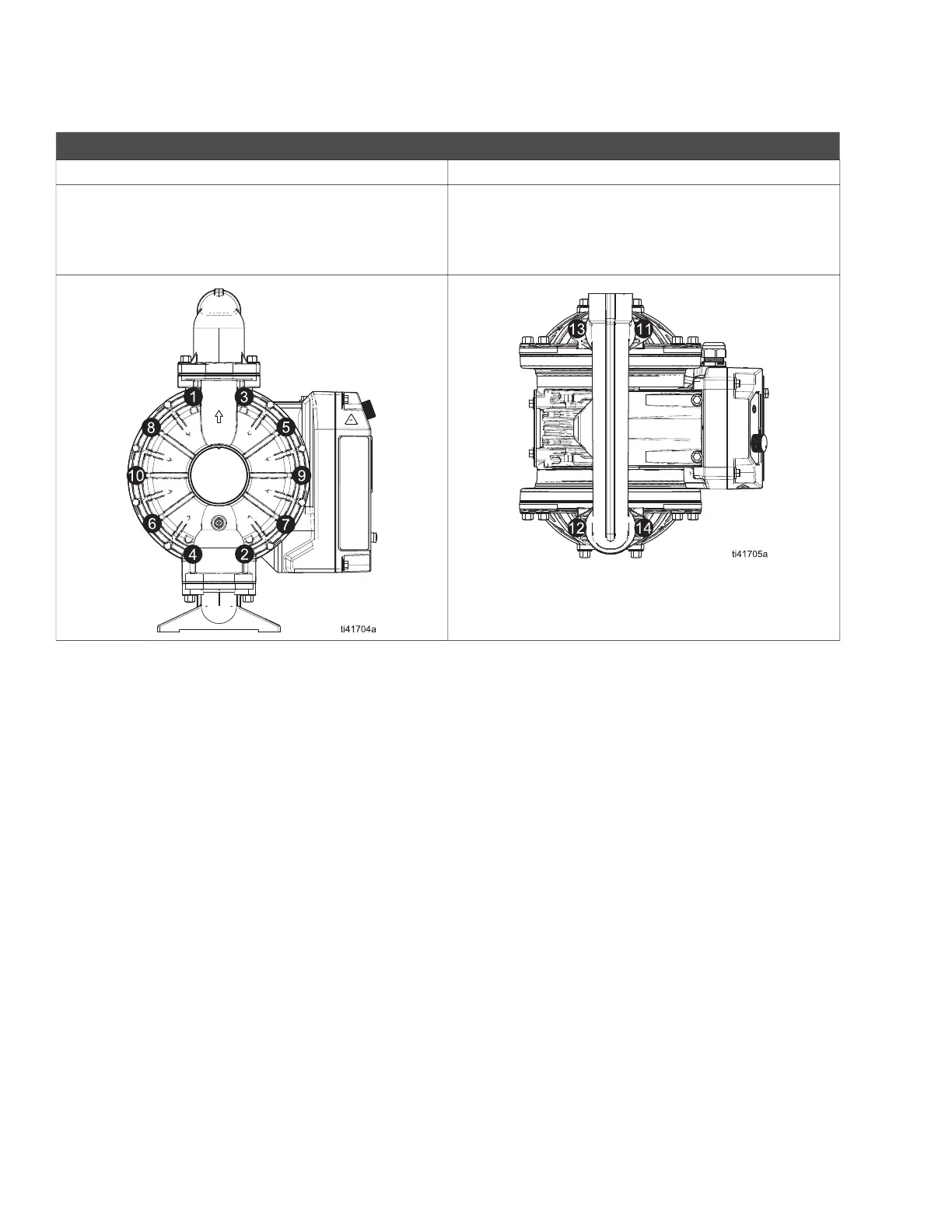

Torque Sequence for i80 (QTD) Models
Fluid Covers (3) Manifolds (4, 5)
Torque fasteners (7, 7b, if applicable) to 190–220 in-lb
(21–25 N•m).
For i80 (QTD) plastic models: Torque fasteners (6, 6b,
if applicable) to 80–90 in-lb (9–10 N•m).
For i80 (QTD) metal models: Torque fasteners (6, 6b, if
applicable) to 120–150 in-lb (14–17 N•m).
