Torque Fasteners
3A8572B 41

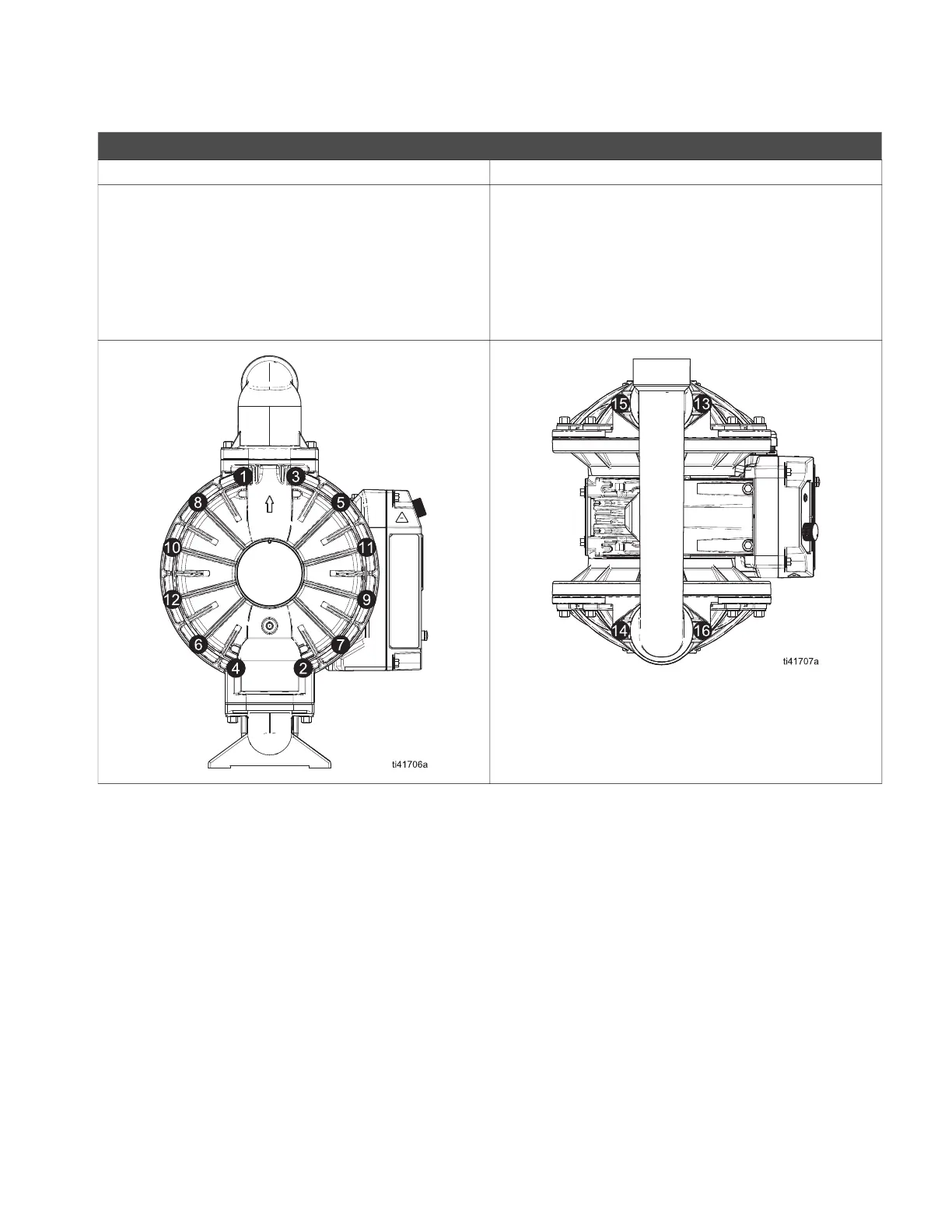

Torque Sequence for i120 (QTE) Models
Fluid Covers (3) Manifolds (4, 5)
Torque fasteners (7, 7b, if applicable) to 190–220 in-lb
(21–25 N•m).
For i120 (QTE) plastic models: Torque fasteners (6,
6b, if applicable) to 150–160 in-lb (17–18 N•m).
For i120 (QTE) aluminum models: Torque fasteners (6,
6b, if applicable) to 120–150 in-lb (14–17 N•m).
For i120 (QTE) metal models, except aluminum:
Torque fasteners (6, 6b, if applicable) to 190–220 in-lb
(21–25 N•m).
