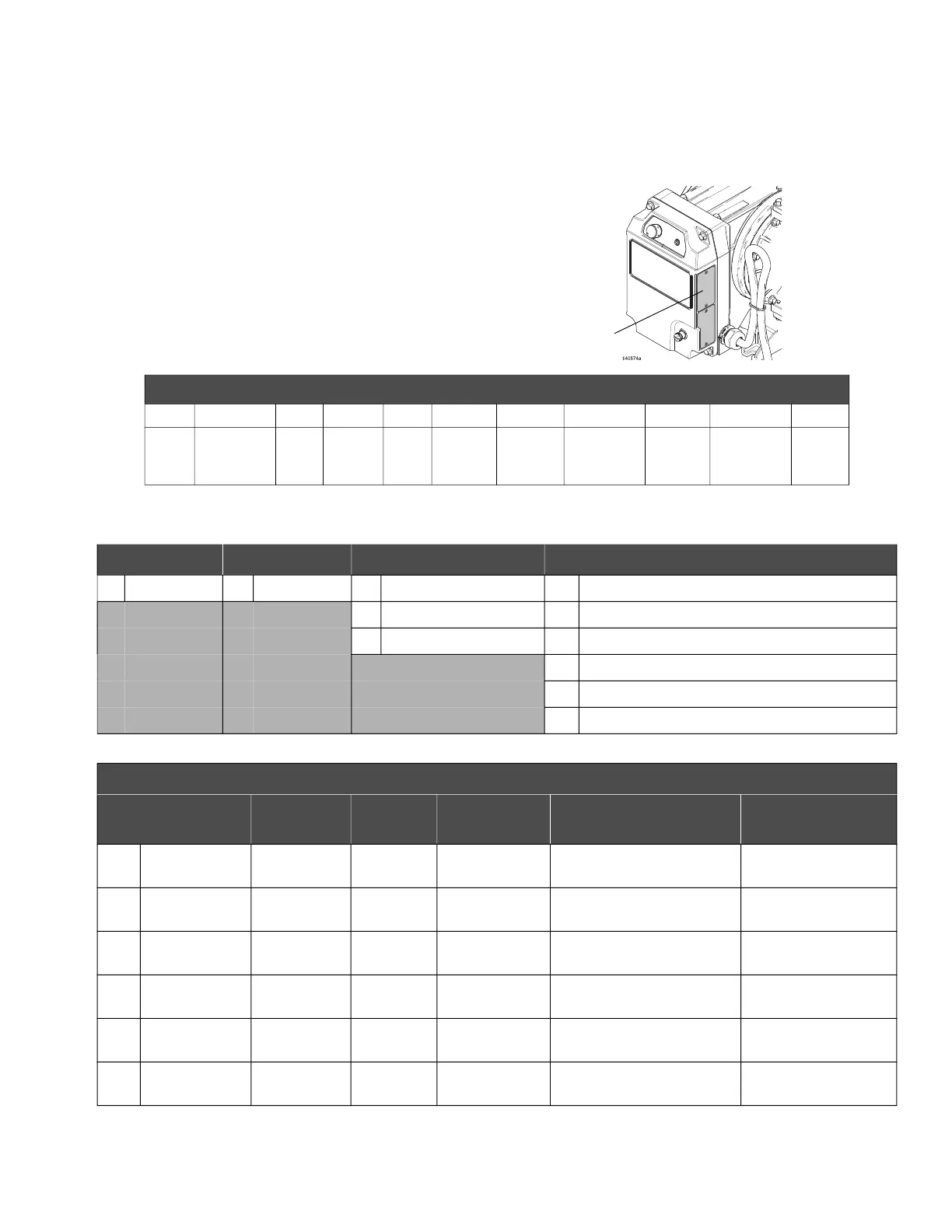

Configuration Matrix
3A8572B 7
Configuration Matrix
Record the model part number and configuration
sequence found on your equipment identification plate
(ID) to assist you when ordering replacement parts.
Model Part Number:
_______________________________________________
Configuration Sequence:
_______________________________________________
NOTE: Some combinations are not possible. Check with your local distributor.
ID
Sample Configuration Sequence: QTC-ACFC2ACACBNBNA100
Q T C AC FC2 AC AC BN BN A1 00
Brand Application Model Wetted
Section
Material
Motor Seat
Material
Check
Material
Diaphragm
Material
Manifold
Seal
Material
Connection Options
Brand Application Model Wetted Section Material
Q QUANTM T Industrial (i) C 30 (1 in. port) AL Aluminum
D 80 (1-1/2 in. port) CI Cast Iron
E 120 (2 in. port) CP Conductive Polypropylene
PP Polypropylene
PV PVDF
SS 316 Stainless Steel
Motor - Industrial Models
Drive Coat
Input
Voltage
Phase Location
Cord/Cable
Termination
FC1* Aluminum Direct
Drive
Black powder
coat
200-240 V 3-Phase Industrial, Ordinary Locations Cord with plug
FC2 Aluminum Direct
Drive
Black powder
coat
200–240 V Single-Phase Industrial, Ordinary Locations Cord with plug
FC3* Aluminum Direct
Drive
Black powder
coat
200-240 V 3-Phase Industrial, Ordinary Locations Cord with plug
FC4 Aluminum Direct
Drive
Black powder
coat
200–240 V Single-Phase Industrial, Explosive
Atmospheres
Cable with flying leads
FC5 Aluminum Direct
Drive
Black powder
coat
100–120 V Single-Phase Industrial, Ordinary Locations Cord with plug
FC6 Aluminum Direct
Drive
Black powder
coat
100–120 V Single-Phase Industrial, Hazardous
(Classified) Locations
Cable with flying leads
*Not available with i30 (QTC).
