Graco Reactor 2 H-XP3 Repair Parts

Repair
Repair Repair
Repair
Fluid Fluid
Fluid
Temperature Temperature
Temperature
Sensor Sensor
Sensor
(FTS) (FTS)
(FTS)
Installation Installation
Installation
TheFluidTemperatureSensor(FTS)issupplied
withthesystem.InstallFTSbetweenmain
hoseandwhiphose.SeeHeatedHosemanual
309572forinstructions.
Test/Removal Test/Removal
Test/Removal
1.PerformShutdown,page50.
2.Removetapeandprotectivecoveringfrom
FTS.Disconnecthosecable(F).
3.IfFTSisnotreadingproperly
attheendofthehose,see
CheckRTDCablesandFTS,page65.
4.IfFTSfails,replaceFTS.

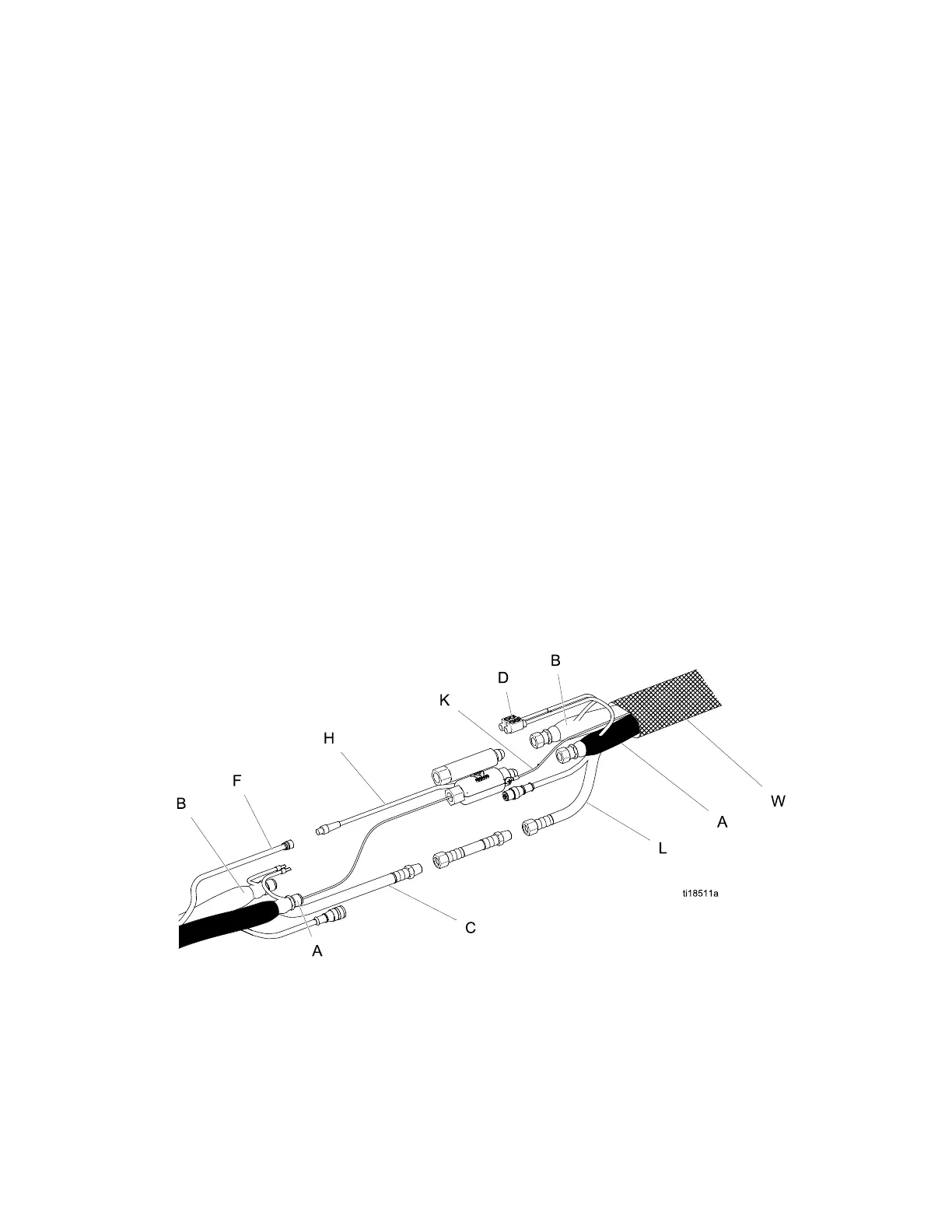

a.Disconnectairhoses(C,L)andelectrical
connectors(D).
b.DisconnectFTSfromwhiphose(W)and
uidhoses(A,B).
c.Removegroundwire(K)fromground
screwonundersideofFTS.
d.RemoveFTSprobe(H)fromcomponent
A(ISO)sideofhose.
334946J
67
