Graco Reactor 2 H-XP3 Repair Parts

Parts

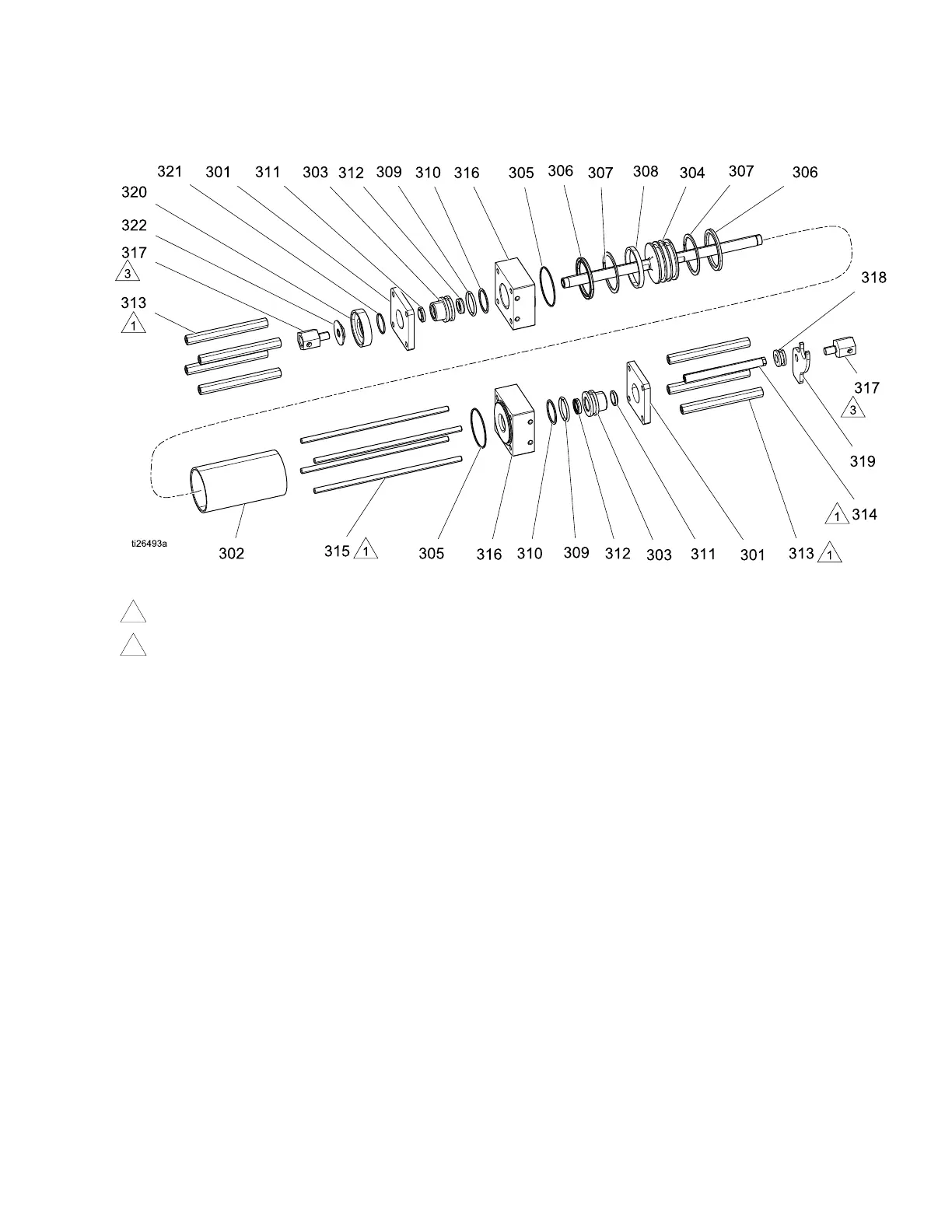

Hydraulic Hydraulic
Hydraulic
Cylinder Cylinder
Cylinder
Parts, Parts,
Parts,
17G499 17G499
17G499
1
Torquespacers(313,314)androd(315)to
200in-lb(22.5N•m).
3
Torqueto40+/-5ft-lb(345+/-54N•m)
4.
Applygreasetoallsoftpartsbefore
assembly.
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty. Qty.
Qty.
301295029
PLATE,retainer
2
302295030CYLINDER
1
303*295031
BUSHING,rod
2
304296642
PISTON,cylinder,
hydraulic
1
305*295640O-RING2
306*295641SEAL,u-cup2
307*295642
RING,back-up
2
308*296643RING,wear
1
309*158776PACKING,o-ring2
310*295644
RING,back-up
2
311*295645
WIPER,rod
2
312*295646
SEAL,shaft
2
Ref. Ref.
Ref.
Part Part
Part
Description Description
Description
Qty. Qty.
Qty.
313295032SPACER,proportioner
7
314261502SPACER,reversing
switch
1
315295034ROD,tie
4
316295035BLOCK,port2
317261864
CLEVIS,hex
2
31817G527
BUSHING,clocking
1
31917G529
PLATE,clocking,driver
1
320
---
ADAPTER,lube,
cylinder(included
inkit261863)
1
321177156PACKING,o-ring
1
322295852
NUT,jam,bafe
1
*
Parts are also included in Hydraulic Cylinder Repair Kit 296785. Purchase separately.
334946J
91
