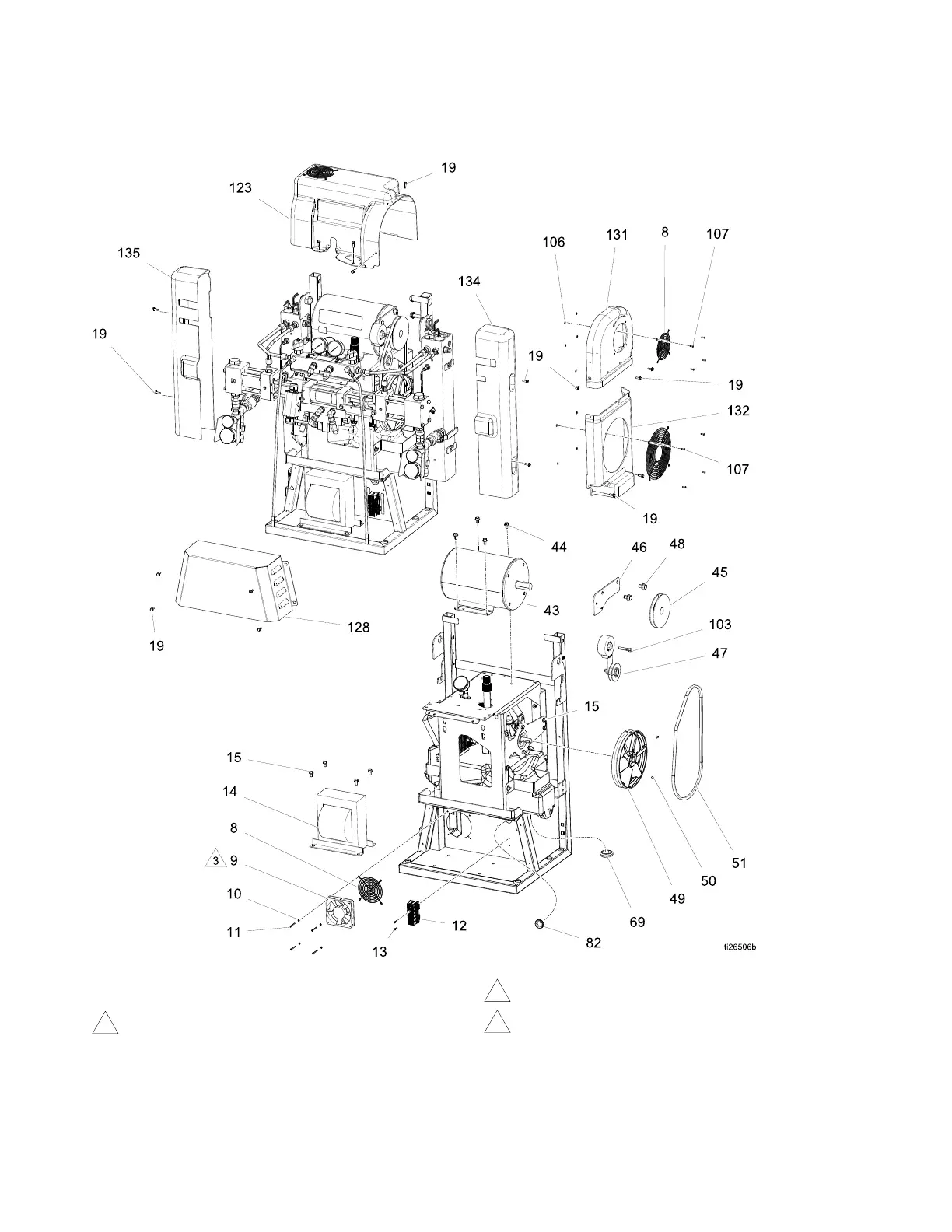

Parts
Proportioner Proportioner
Proportioner
Parts Parts
Parts
1.
Applyanaerobicpipesealanttoall
non-swivelingpipethreads.
3
Ensurethatthefan(9)directionarrowpoints
awayfromthemountingpanel.
4
Installpulley(45)ushwithmotorshaft(43).
5
Installpulley(44)overhungonpumpshaft
(27)by.18+/-.03in.Onmodels17H031,
17H032,and17H074:Installpulley(49).49
+/-.03in.frompumpshaft(27)end.
76
334946J
