L-SOLUTION 800 machine . 14
First contact
Rear view of the machine
Each connection responds to one of the following security levels :
- Dangerous voltage.
- Very low security level.

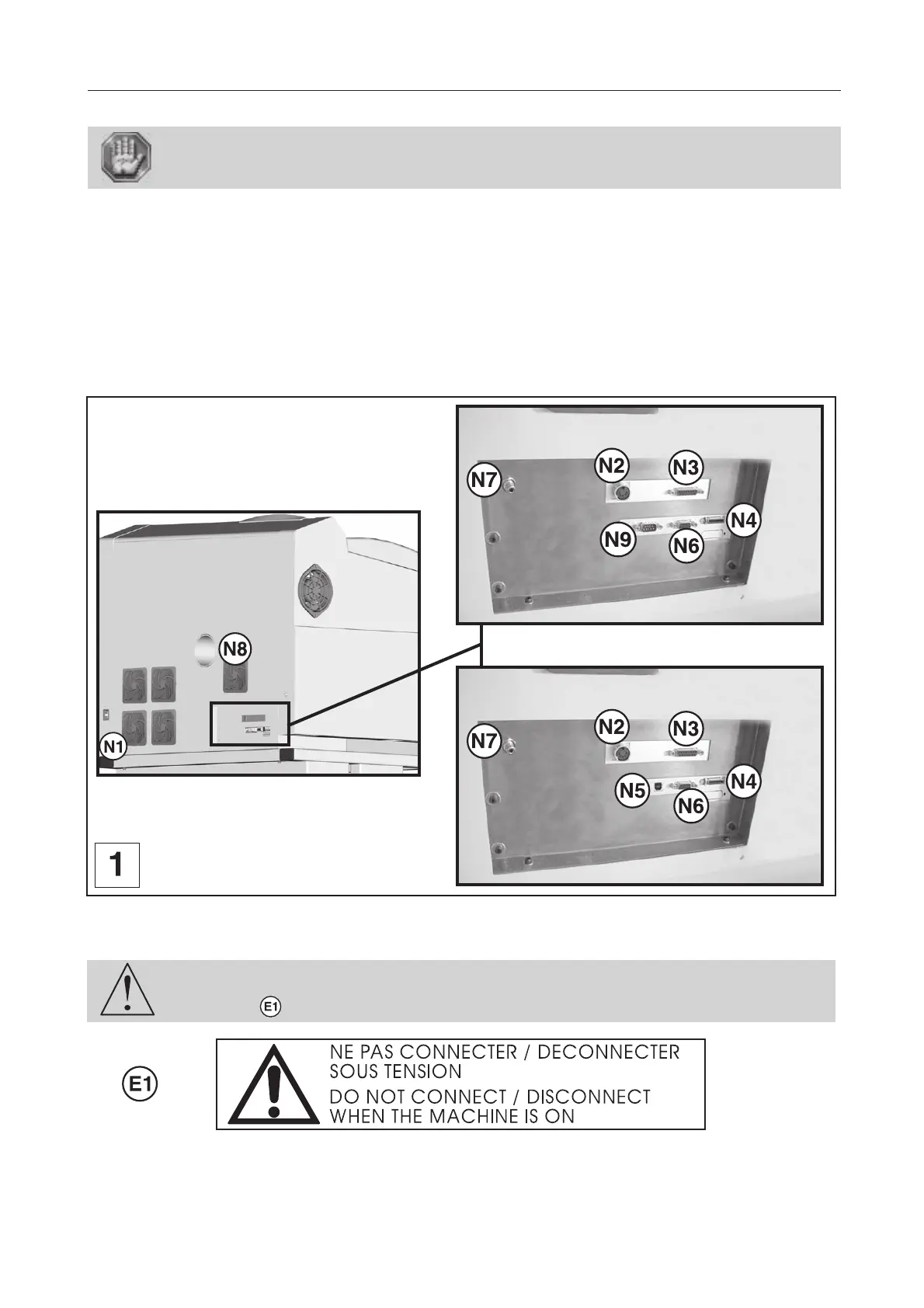

N. Connection socket (diagram 1)
N1 - Mains supply plug - Dangerous voltage
N2 - Exhaust system Inputs /Outputs - Very low security level
N3 - Standard Inputs /Outputs - Very low security level
N4 - Parallel port - Very low security level
N5 - USB port - Very low security level
N6 - Do not use (the protection cap is not to be removed for any reason)
N7 - Pneumatic supply for the air assist
N8 - Hole for the air evacuation pneumatic tube to the exhaust system.
N9 - Serial port (old machines) - Very low security level
The machine must always be switched off before connecting or disconnecting a cable
or the cylinder attachment (optional accessory), as indicated on
label :
Description
L-SOLUTION 800
OR
Old machines
New machines
