L-SOLUTION 700 / 800 / 900 machines . 72 First contact
The engraving menu

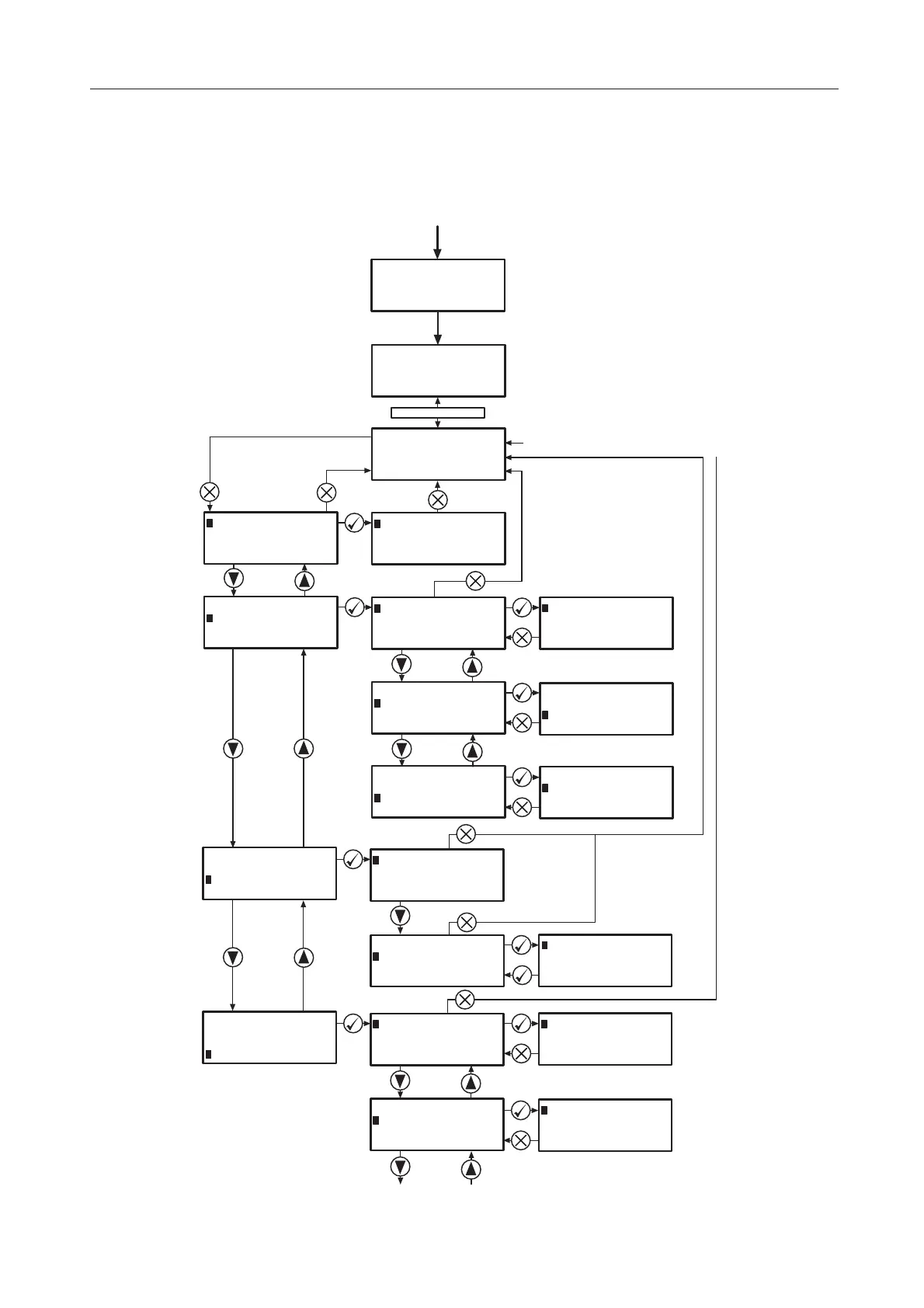

The LCD displays the menus of the LASER system. Since this LASER system has many features, we have included a «Menu
System Flow Chart» on this page and the next page :
POWER 40
SPEED 10
DPI-X 400
DPI-Y 400
001 FILENAME1
DELETE THIS FILE
DELETE ALL
90% FREE MEMORY
001 FILENAME1
DELETE THIS FILE
DELETE ALL
90% FREE MEMORY
001 FILENAME1
DELETE THIS FILE
DELETE ALL
90% FREE MEMORY
PARAMETERS
FILE
INFO
CONFIGURATION
PARAMETERS
FILE
INFO
CONFIGURATION
PARAMETERS
FILE
INFO
CONFIGURATION
L-SOLUTION 800
LANGUAGE ENGLISH
SERIAL PORT
DISPLAY UNIT MM
L-SOLUTION 800
LANGUAGE ENGLISH
SERIAL PORT
DISPLAY UNIT MM
001 FILENAME1
DELETE THIS FILE
NO
YES
DELETE ALL
NO
YES
GRAVOGRAPH
LASER Version X.XX
LCD SOFT X.XX
16 Mo BOOT X.X
< READY TO RECEIVE >
001 FILENAME1
PUI 40 VIT 10
DPIX 400 DPIY 400
ENGLISH
FRENCH
GERMAN
SET UP
FPGA X.XX
LCD SOFT X.XX
16 Mo BOOT X.X
001 FILENAME1
002 FILENAME2
003 FILENAME3
004 FILENAME4
L-SOLUTION 700
L-SOLUTION 800
L-SOLUTION 900
L-SOLUTION 500XL
PARAMETERS
FILE
INFO
CONFIGURATION
# : 1 0:01:29
001 FILENAME1
PUI 40 VIT 10
DPIX 400 DPIY 400
# : 1 0:01:29
001 FILENAME1
PUI 40 VIT 10
DPIX 400 DPIY 400
001 FILENAME1
002 FILENAME2
003 FILENAME3
004 FILENAME4
ENGRAVING
MENU
3 SECOND DELAY
... continued on next page
POWER ON
System operation
