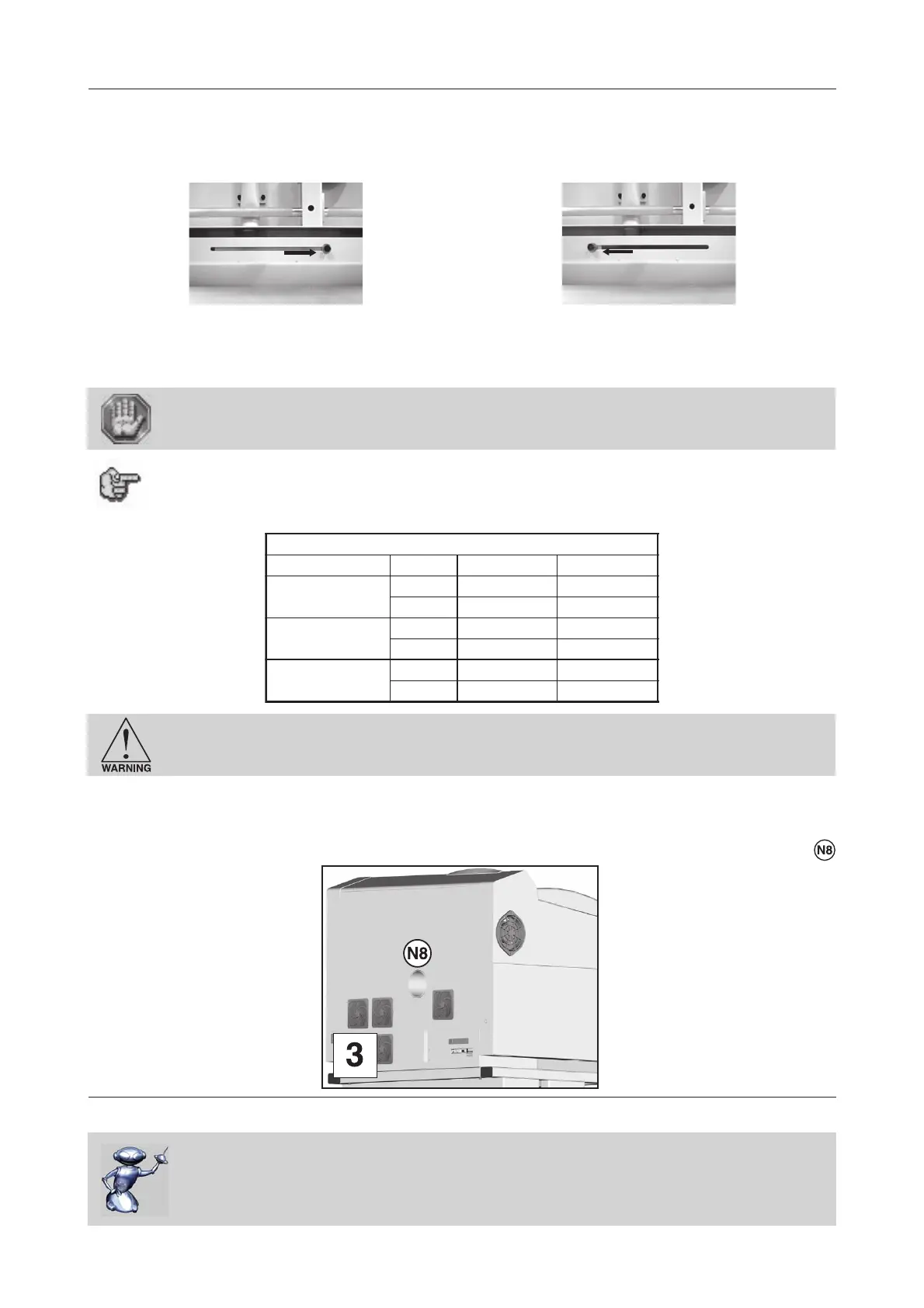

Exhaust system installation recommendations
To properly exhaust fumes and smoke from the LASER engraving system during operation, you must have a proper exhaust
system.
A slide gives the possibility to select two distinct air exhaust system modes :
SCITSIRETCARAHCROTCARTXEDEDNEMMOCER.NIM
edomdaeHedomlareneG
tuphguorhtria.xaM
m
3
h/051≥003≥
dray
3
nim/72.3≥45.6≥
muucav.xaM
aPk02≥5.0≥
ISP9.2≥70.0≥
retemaidteltuO
mm05001
ni"1
23/13
"3
61/51
Never operate the LASER engraving system without a properly installed and operating
exhaust system. When cut or engraved, some materials can produce fumes that are
hazardous in concentrated amounts.
To install the exhaust system properly, we recommend having the exhaust system installed by a licensed contractor
compliant with safety and local code requirements as well as being able to calculate the correct size blower required for
your particular installation.
The fume exhaust to the air exhaust system goes through the tube connected on the rear side of the LASER machine
(pict. 3).
Air-assist requirements (compressor optional)
In order to use the Air-assist system (air seal), you should use an air compressor
(optional accessory, not delivered) that has the following characteristics :
- Power = 30 W
- Air draught = 0.0196 yard
3
/mn or 3.87 US gallon/mn
(15 l/mn)
Installation
- Head mode (Exhaust to the level of the head):
the more effective but a high-performance vacuum
exhaust system is required.
- General mode (general Exhaust ) :
gives the possibility to adapte with an air exhaust system
which have a good air draught but with a small vacuum.
An air inlet is provided in the double door.
Avoid to combine the two exhaust system modes.
For the cutting works, it is also possible to have an exhaust to the level of the table (in
general mode).
The air exhaust system MUST comply with the following minimum requirements (according to the mode):
