Compressor kit (air assist)

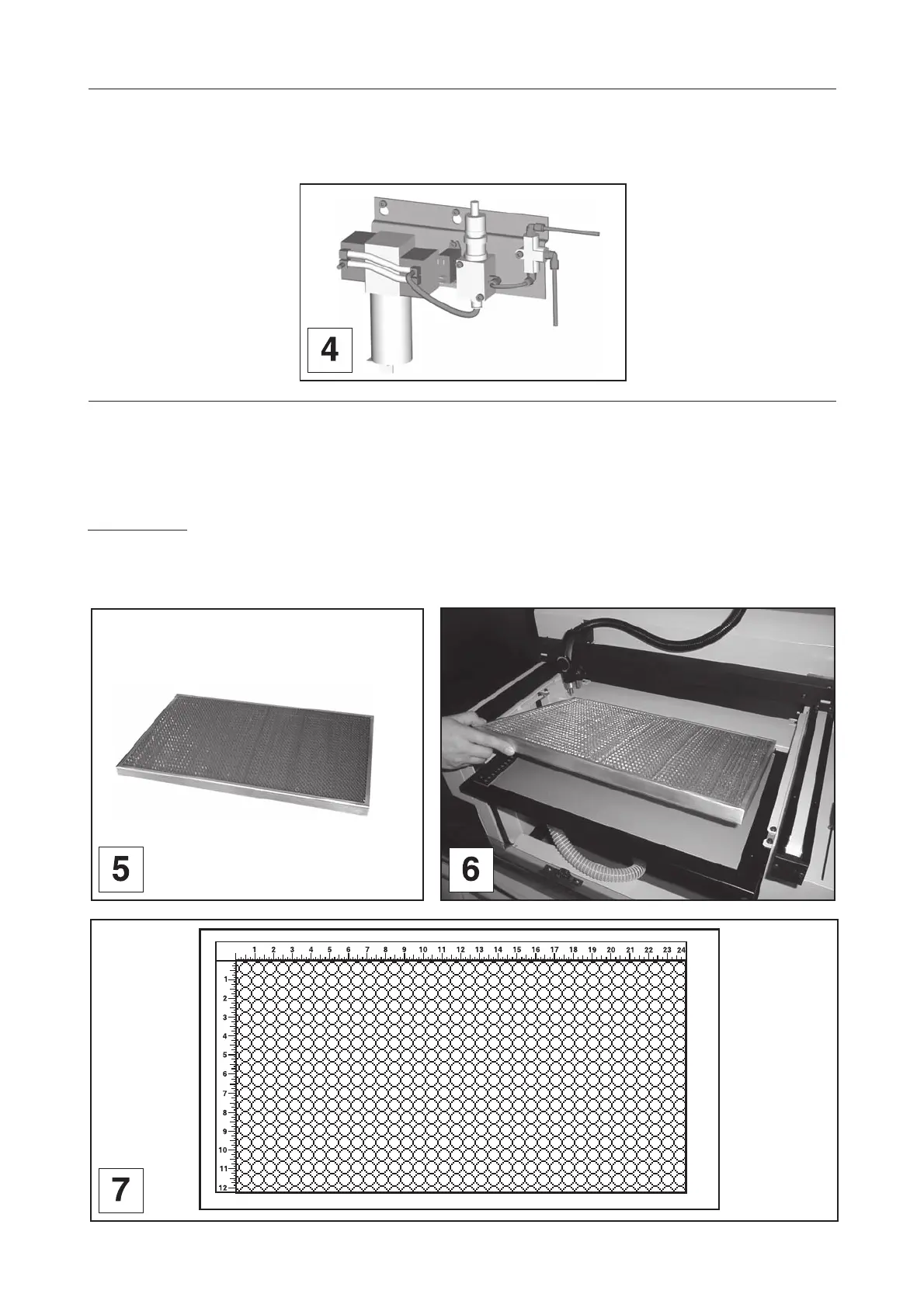

The compressor kit is first mounted on a plate which must be installed on the machine (photo 4).The installation is described
in the user manual provided with the kit. It permits to supply compressed air (1,5 bar - 12 l/min opened valve <---> 21.75
PSI- 0.0157 yard
3
/min opened valve) in order to ensure the air assist function without connecting an external compressor
to the (N7) air inlet (Pneumatic supply for the air assist).
Options and accessories
Honeycomb cutting table
(diagram 5)
The purpose of the Cutting Table is to support the material that you are cutting off of the engraving table’s surface to
minimize surface contact area. It also redirects exhaust airflow below and above the material for better smoke removal.
The honeycomb material is reflective only in the area that contacts your material to minimize LASER beam reflection.
Installation :
1. Place the cutting table on the machine engraving table (photo 6)
2. Position the cutting table by leaning it against the engraving table rulers (diagram 7)
