Electric installation recommendations

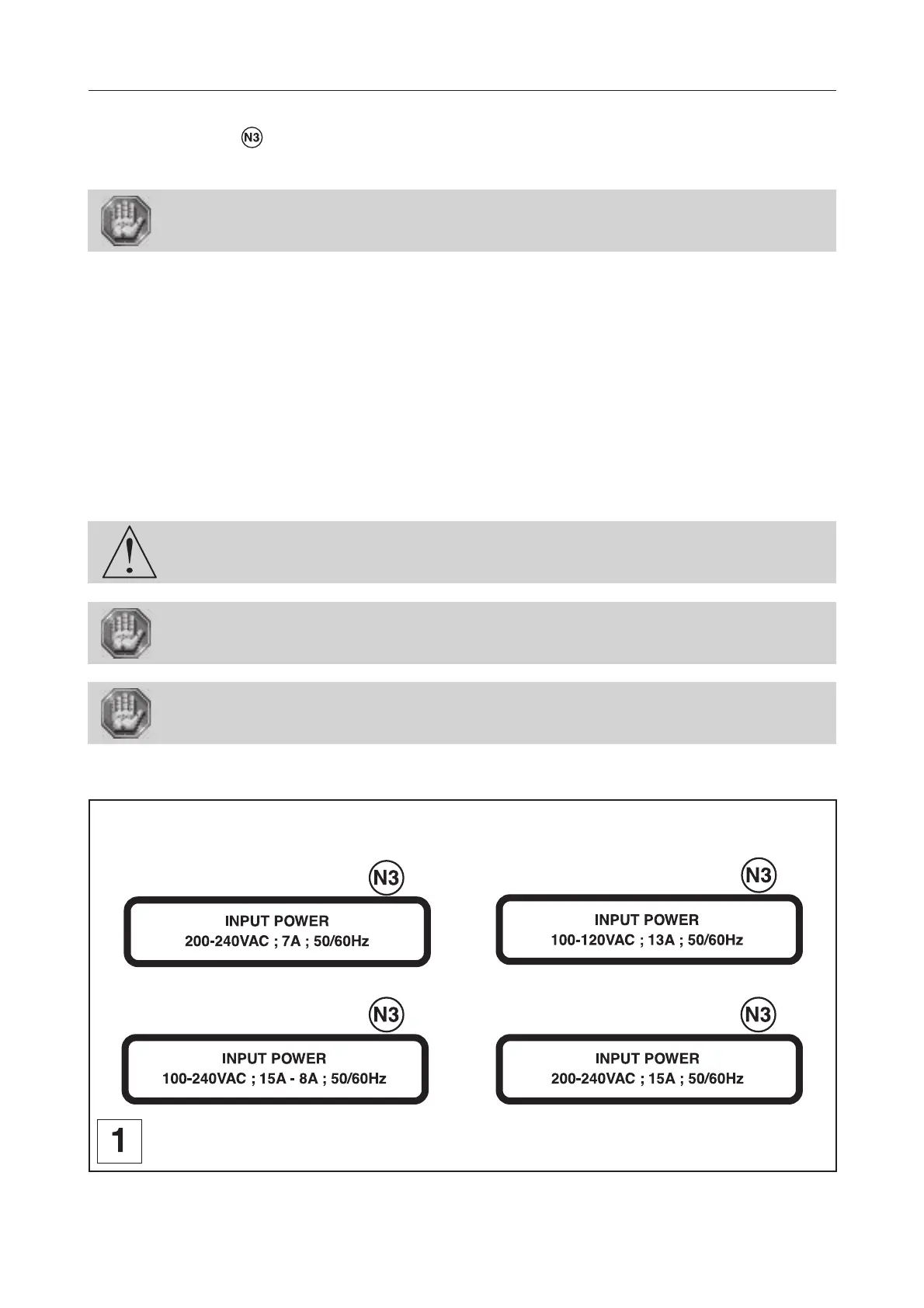

Please refer to the label (diagram 1) « INPUT POWER » near the system’s ON/OFF switch and power inlet for your
system’s electrical requirements. Make sure that your electrical outlet is capable of providing the proper voltage, frequency
and amperage that your LASER system needs.
This material is «class 1». The mains plug MUST always be connected to a neutral
socket and comply with the regulations in force in the country of installation. If you
do not have a plug of this type, have one installed by an approved electrician. Under
no circumstances should you depart from this instruction.
In order to avoid any interference with the outside, the user is advised to follow the instructions below.
• Plug the Gravograph machine into a mains line, avoiding having several machines on the same line (several plugs on the
same line or using a multi-plug).
Exception : If other items are connected to the machine (e.g. a computer or an ISIS console linked
to an IS table), all your machines should be connected to the same mains line.
• Avoid using the same line to supply inductive or capacitive machines as well as the Gravograph machine (motors,
electrosluices, chargers, etc.).
• Avoid using a manual or automatic switch on the same mains line as the Gravograph machine (relay, temporizer,
programmer, automatic circuit breaker, automatic switch, etc.).
• Check that machines surrounding your Gravograph machine comply with the standards relative to radioelectric
interference (please refer to the technical leaflet shipped with each machine). If they are not compliant, place them as
far away as possible from the Gravograph machine.
• Only use Gravograph accessories (Gravograph relay box, etc ...).
The machine must always be switched off before connecting or disconnecting a cable
or the cylinder attachment (optional accessory).
The electrical plug acts as a sectioning device. It is therefore important that you set
up the machine in order to always have easy access to the power cable.
Do not connect this equipment to an IT power supply card..
Installation
OR
10/20 W :
25/30/40 W : 60/80 W :
