GRAVOGRAPH L-Solution 700 - Connecting via Parallel Port

First contact L-SOLUTION 700 / 800 / 900 machines . 25
Connecting L-SOLUTION to your PC using the parallel port

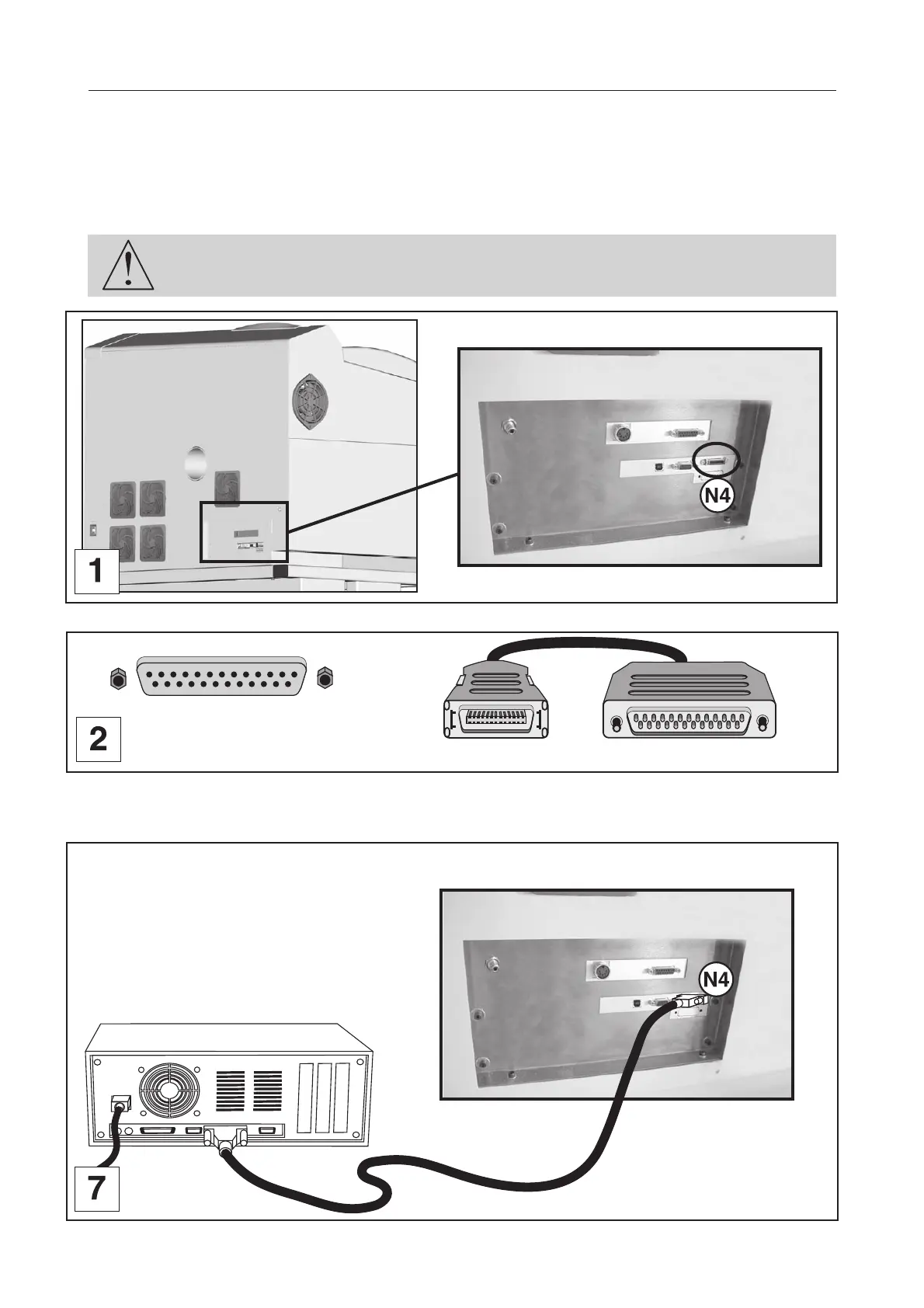

1. Plug the parallel cable into the parallel port (N4) of the L-SOLUTION machine (diagram 1).
This is a 26-pin Mini-Delta Ribbon connector.
2. Plug the parallel cable into the parallel port of the PC (diagrams 2 and 7).
Refer to the installation manual of the computer for the parallel port.
The connector screws must be very tight to avoid any accidental disconnection of the
cables while the machine is turned on, as this could damage the electronic boards
permanently.
1
25
L-SOLUTION
PC
1
25
L-SOLUTION 800
Installation
