L-SOLUTION 700 / 800 / 900 machines . 70 First contact

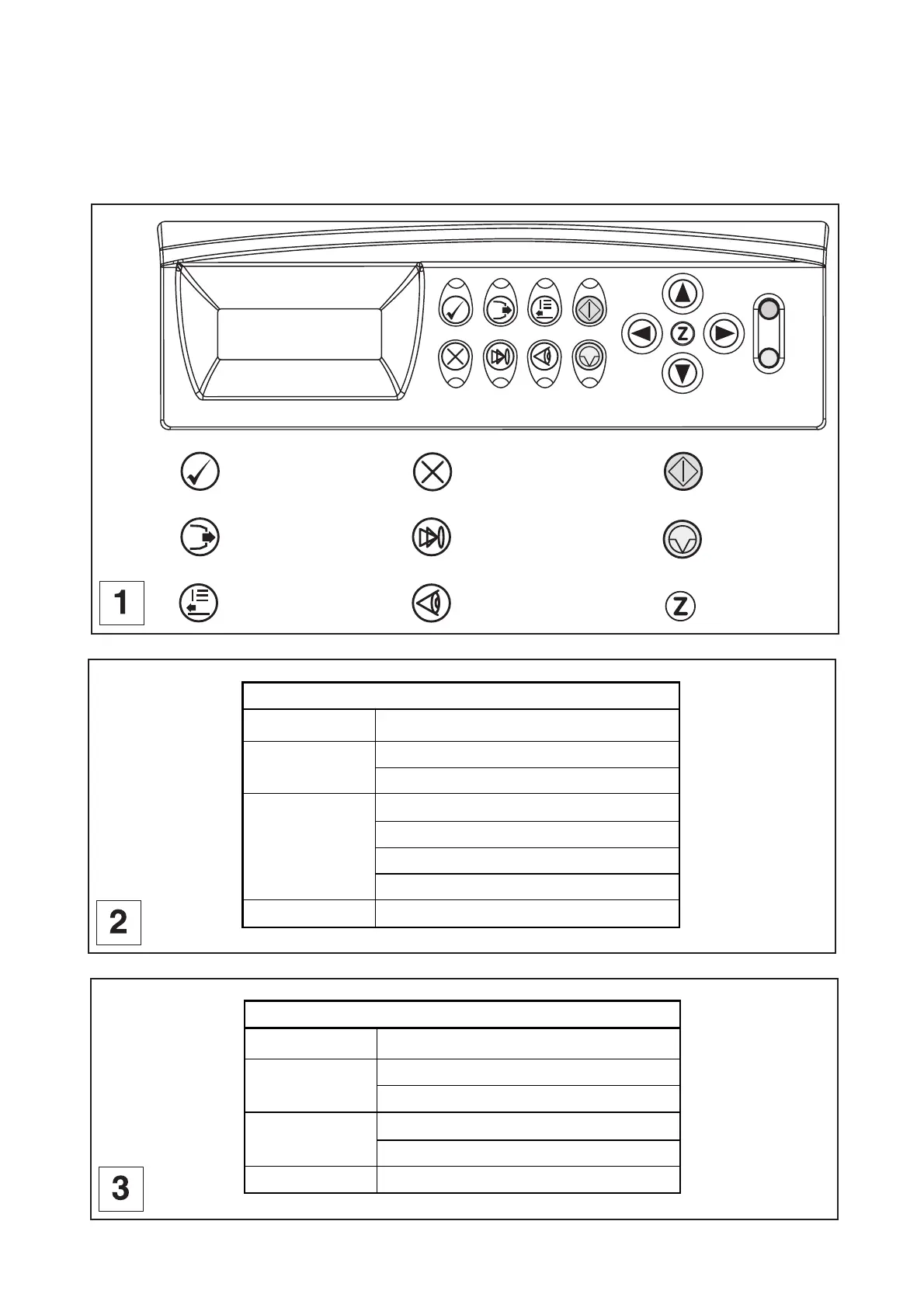

The indicator lights
(diagram 1)
The indicator lights will act differently depending on the current state of the LASER system.
Charts 2 and 3 describes the conditions of the indicator lights during different modes of operation.
GREEN INDICATOR LIGHT
CONDITION REASON
ON
The LASER machine is initializing.
OFF
The LASER machine has finished processing a file
and has returned to the home position.
The LASER machine is ready to receive a file.
The LASER machine has been paused while running a file.
During a Pause.
FLASHING
RED INDICATOR LIGHT
CONDITION REASON
ON
The LASER machine is initializing.
OFF
The LASER machine has finished initializing
and is ready to receive a file.
During a Pause
FLASHING
The file is engraving.
Validation
Air assist
File selection
Cancel
Autofocus
Positioning red diode
Start
Engraving start
Pause
Focus adjustment
Joystick
Indicator
lights
System operation
