7.Installation of Hydro Box

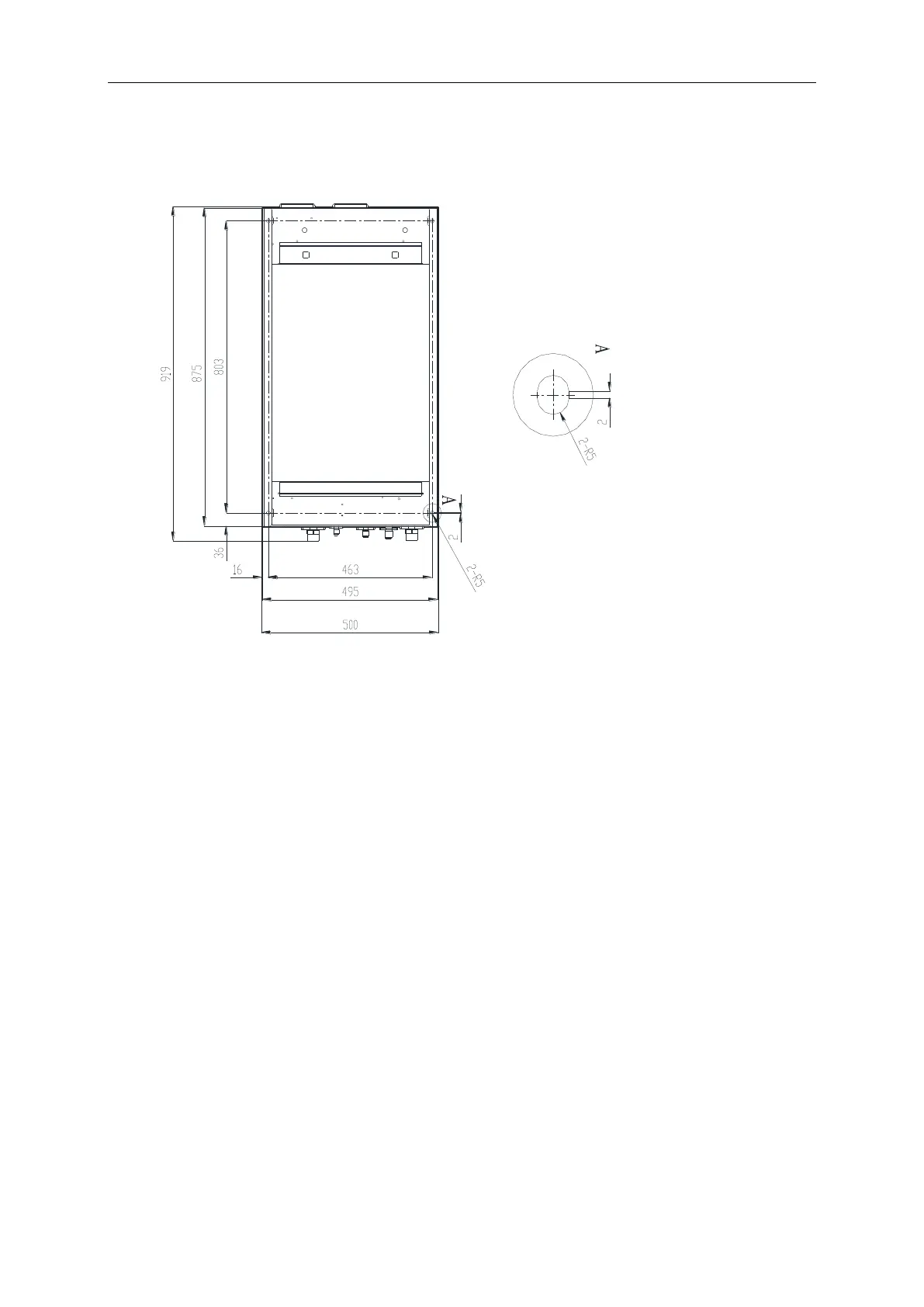

7.1 Outline dimension and installation hole dimension of hydro
box
7.2 Installation Position of Hydro Box
◆ The hydro box shall be installed indoors with ambient temperature from 4℃~35℃. Prohibit
install the hydro box outdoors. Otherwise, malfunction may be caused;
◆ The hydro box must be vertically installed facing upwards and wall-mounted installation
method shall be adopted;
◆ The installation place should be able to withstand the weight of hydro box;
◆ The installation position shall be well ventilated to ensure there is no obstacle at the top
grille of unit and sufficient maintenance space shall be reserved;
◆ The hydro box shall not be affected by garbage and oil fog.
7.3 Requirements for Installation Space of Hydro Box (Unit:
mm)
The hydro box must be vertically installed facing upwards and wall-mounted installation
method shall be adopted.
