Hydro box.
Assembly and disassembly of hydro box
Precondition: No refrigerant exists in the pipeline system and the power supply has been disconnected.
Step

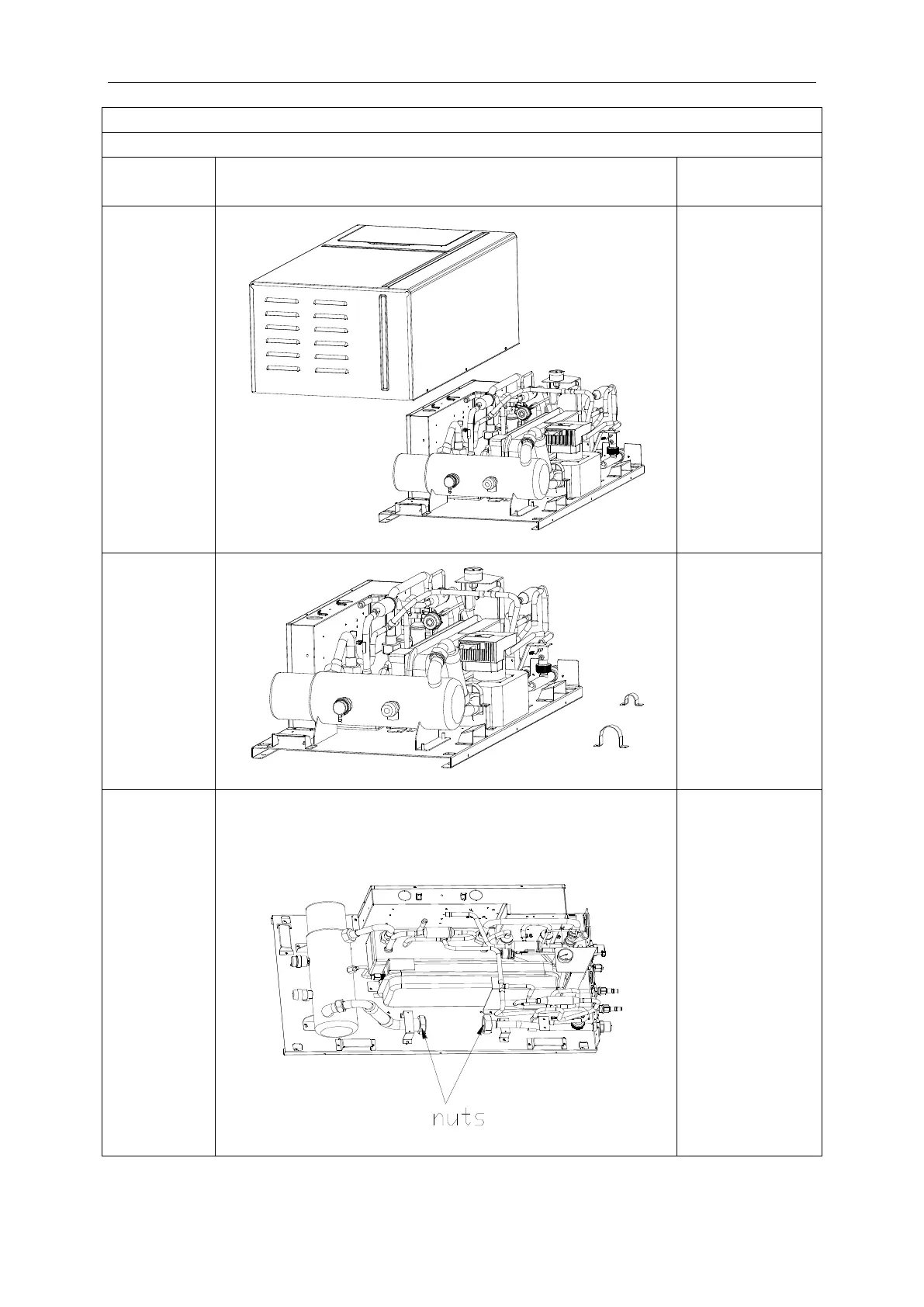

Diagram
Operation
Instruction
1. Remove the
panel.
●Unscrew the
screws of panels
with screwdriver and
remove the panel;
●Note to lift the
panel.
2. Disassemble
the parts of
water pipe and
pipe clip of
electric heating
water pipe.
●Unscrew the
screws with
screwdriver and take
out the pipe clip.
3. Disassemble
the water
pump.
●Unscrew the nuts
in two ends of water
pump.
●Remove sponge of
water pump and
take out the water
pump.
