GMV5 Home DC Inverter Multi VRF Units
186
12.3.2 Communication connection between the IDU and wired controller
Connection modes for the communication cable between the IDU and wired controller are
shown in the following figures:

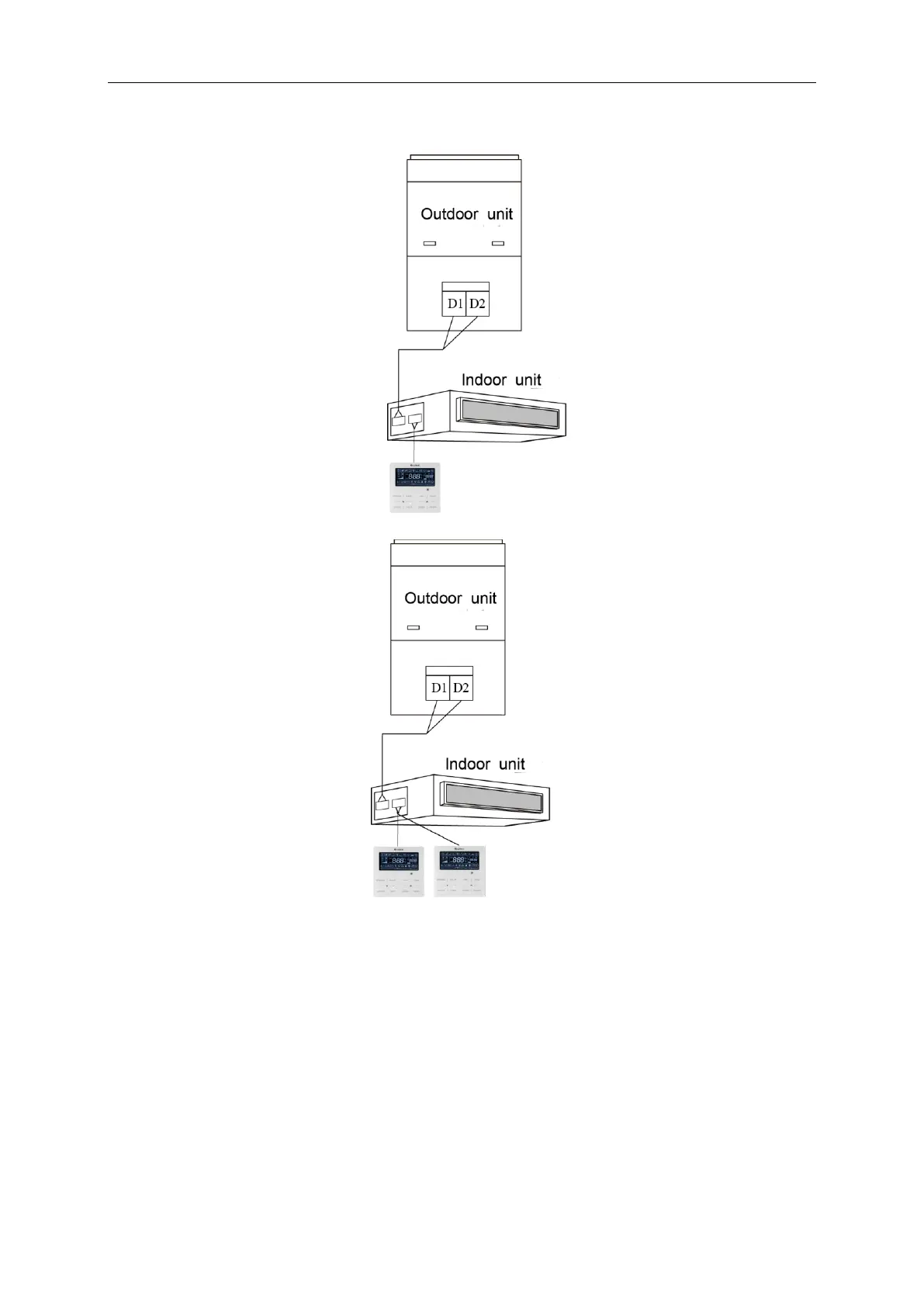

Figure 2 One wired controller controlling one IDU
Figure 3 Two wired controllers controlling one IDU
