GMV5 Home DC Inverter Multi VRF Units
310

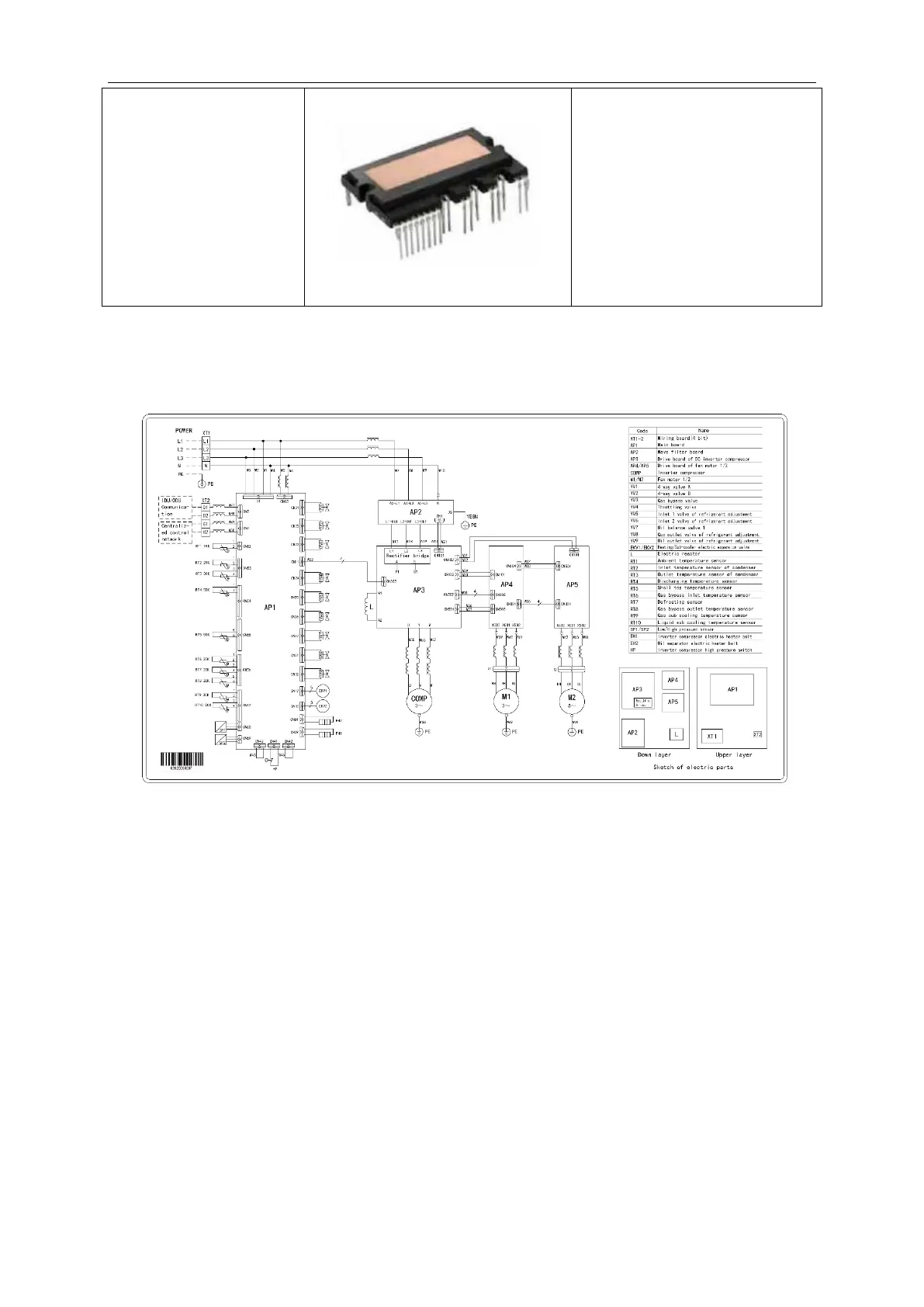

Inside the PFC module, it has
integrated four diodes and 2 MOS
tubes, which can convert inputted AC
power source into outputted DC
power source, at the same time
control connection and disconnection
of MOS tube via PWM wave, and
resort to inductance to increase the
voltage.
5.3 Circuit Diagram
5.3.1 Circuit diagram of outdoor unit
Circuit diagram of GMV-S224W/A-X, GMV-S280W/A-X
Notes: The above circuit diagram is only for reference, for specific contents please
subject to circuit diagram stuck in electric box of unit.
5.3.2 Circuit diagram of hydro box
Electric schematic diagram of NRQD16G/A-S
