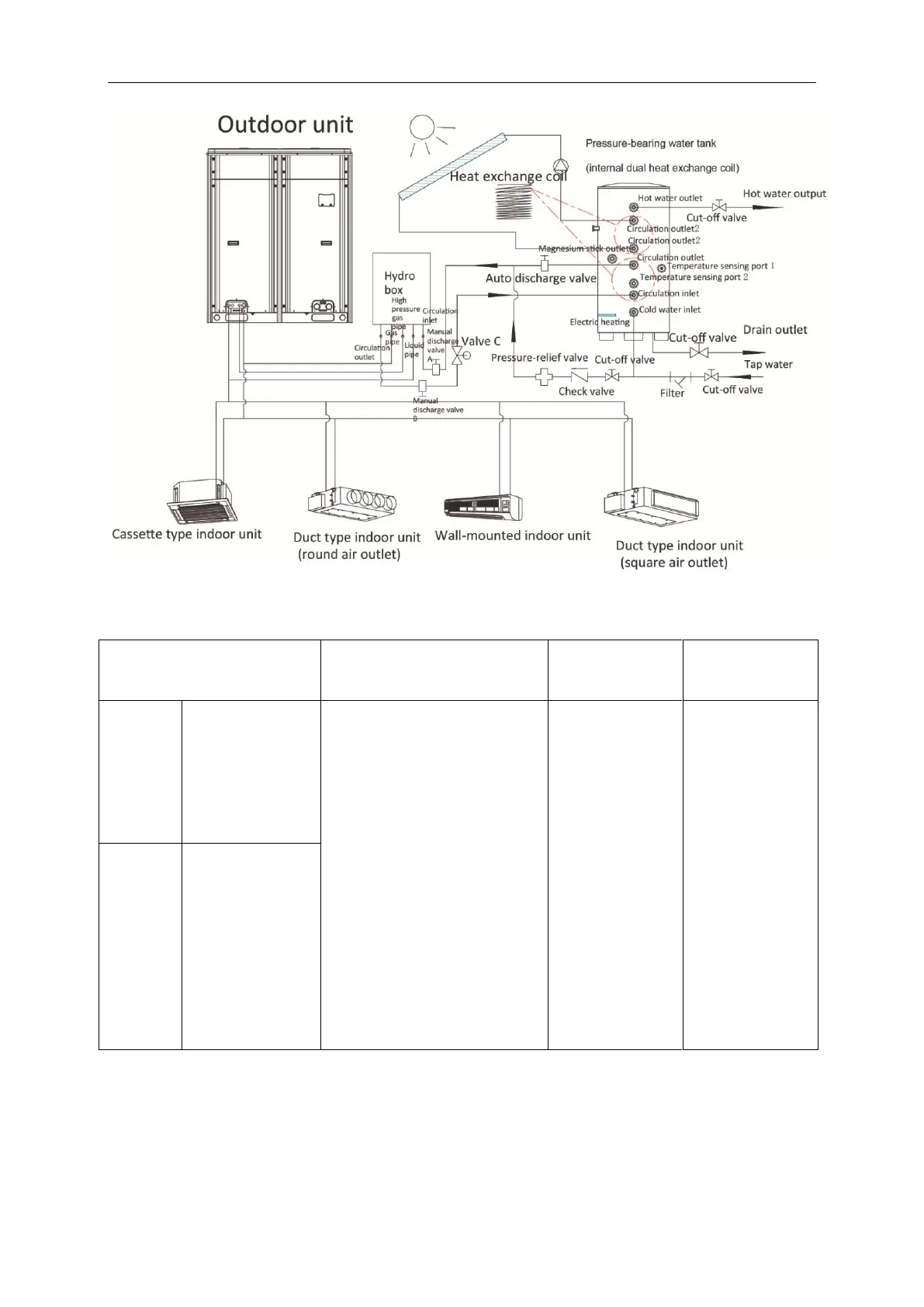

If it needs to connect to solar energy function, installation methods are as below:
6.2 Usage mode 2: air conditioner + hot water + floor heating
Model of outdoor unit
Indoor unit
Hot water
generator
Water tank
Side
discharge
GMV-S120WL/A-S
GMV-S140WL/A-S
GMV-S160WL/A-S
Related indoor unit of GMV5
NRQD16G/A-S
(1) Inner-coil water
tank
SXVD200LCJ/A-K
SXVD300LCJ/A-K
SXVD350LCJ/A-K
SXVD400LCJ/A-K
(2) Inner-coil water
tank can connect to
solar energy
function:
SXVD200LCJ2/A-K
SXVD300LCJ2/A-K
SXVD350LCJ2/A-K
SXVD400LCJ2/A-K
Top
discharge
GMV-S224W/A-X
GMV-S280W/A-X
Notes: C valve and D valve should be straight-through magnetic water valve with small
resistance
Installation methods are as below:
