GMV5 Home DC Inverter Multi VRF Units
181
For example, S2 as shown in the figure:
Note: The black part is the dial rod.

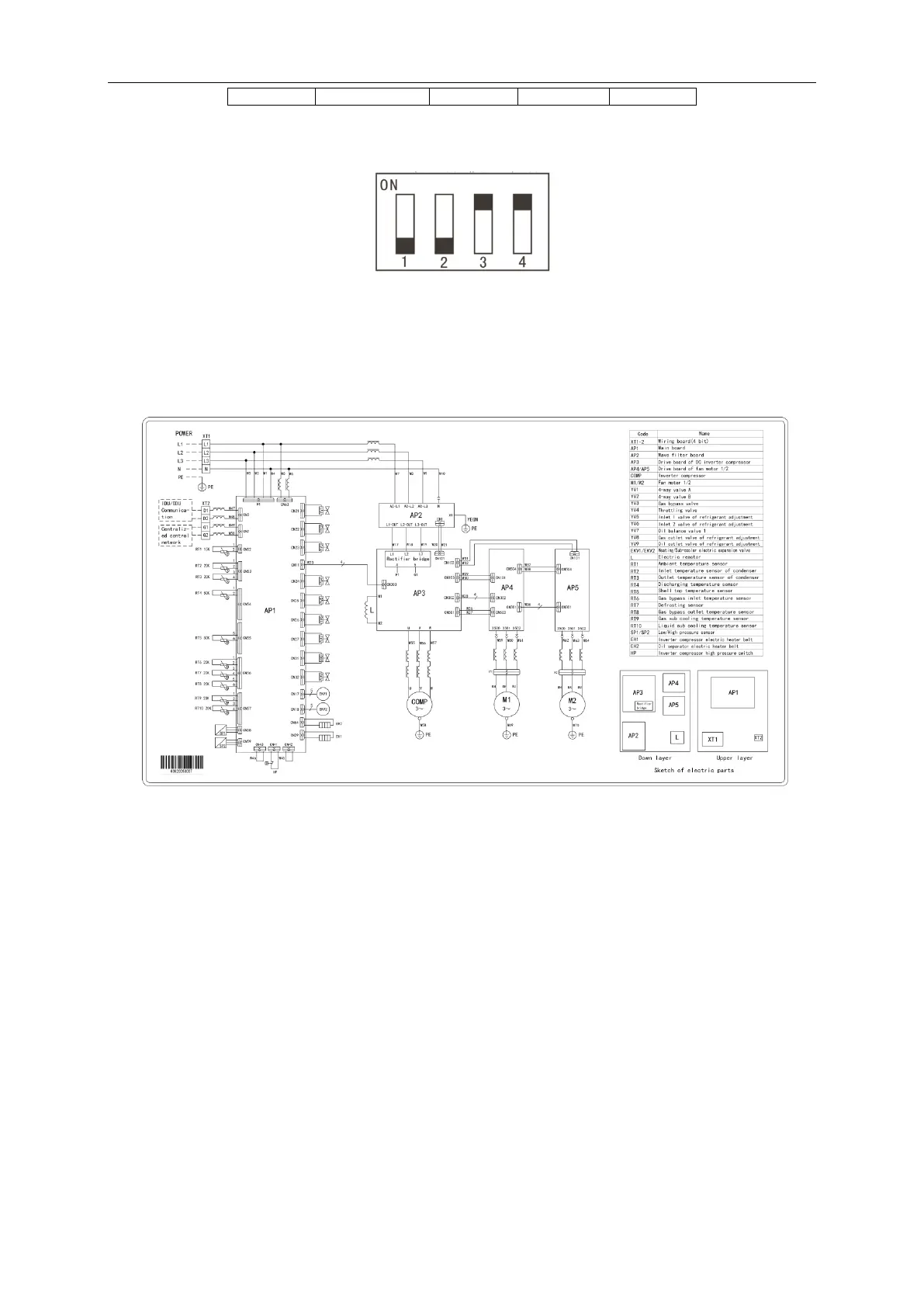

12.3 Wiring diagram
12.3.1 Wiring diagram of ODU
Wiring diagram of GMV-S224W/A-X, GMV-S280W/A-X
Note: The above wiring diagram is only for reference. Detailed content please refer to the
wiring diagram stuck in the electric box of unit.
12.3.2 Wiring diagram of hydro box
Electric principle diagram of NRQD16G/A-S
To Next Page
