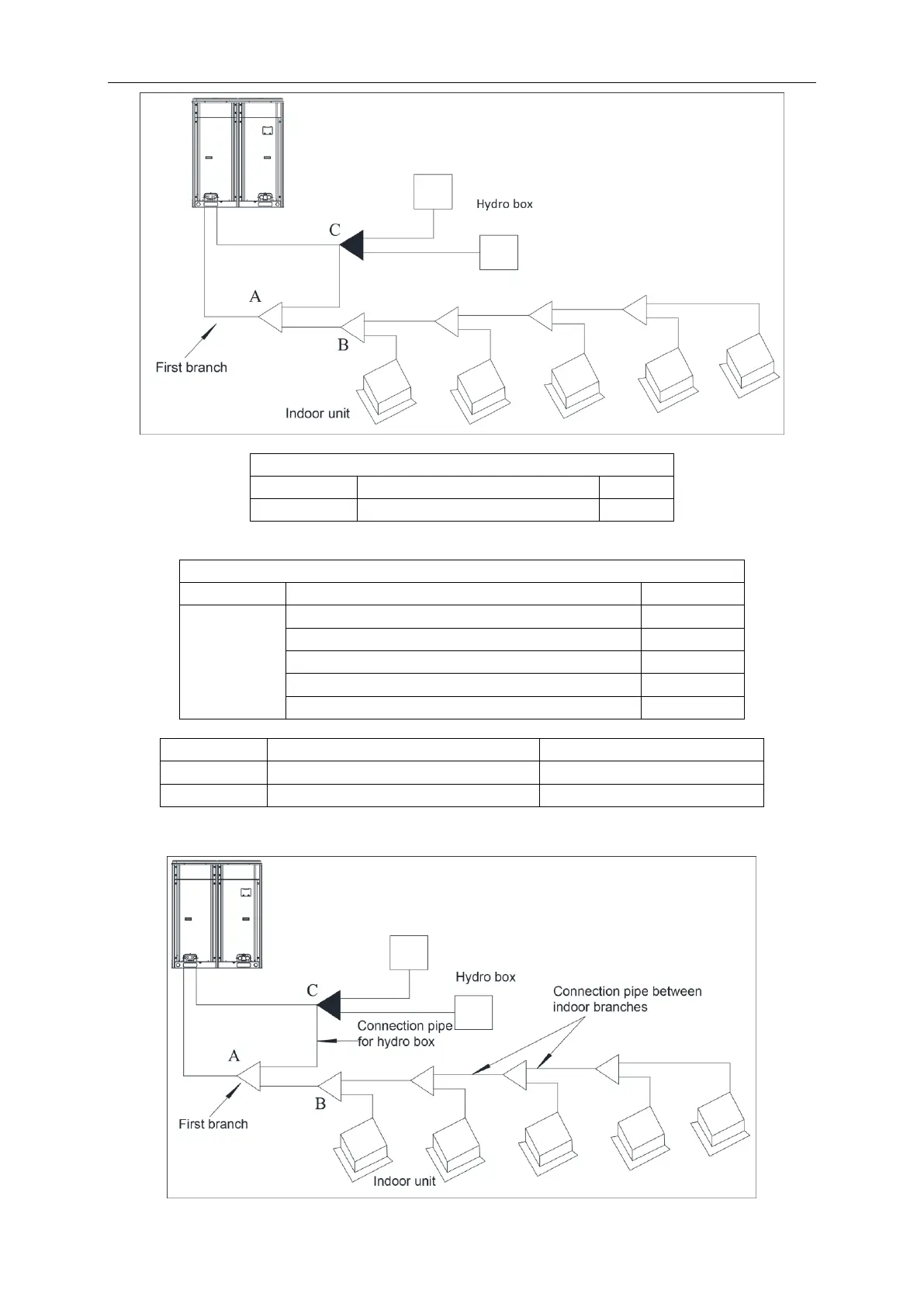

Selection of branch pipe A (the first branch pipe)
Selection of branch A (i.e. first branch)
R410A system
Outdoor unit
Model
Y-type branch
GMV-S224W/A-X, GMV-S280W/A-X
FQ01B/A
Selection of branch pipe B (branch pipe between IDUs)
Selection of branch B (i.e. branch between indoor units)
R410A system
Total rated capacity of downstream indoor units: X(kW)
Model
Y-type branch
X≤ 20
FQ01A/A
20 ＜X≤ 30
FQ01B/A
30 ＜X≤ 70
FQ02/A
70 ＜X≤ 135
FQ03/A
135 ＜X
FQ04/A
Selection of branch pipe C (connected to hydro box)
R410A system
Total number of downstream hydro box
Model
Y-type branch
X=1
Unnecessary
Y-type branch
X=2
FQ02W/A
(3) Piping size between branch pipes
