English (GB)
26

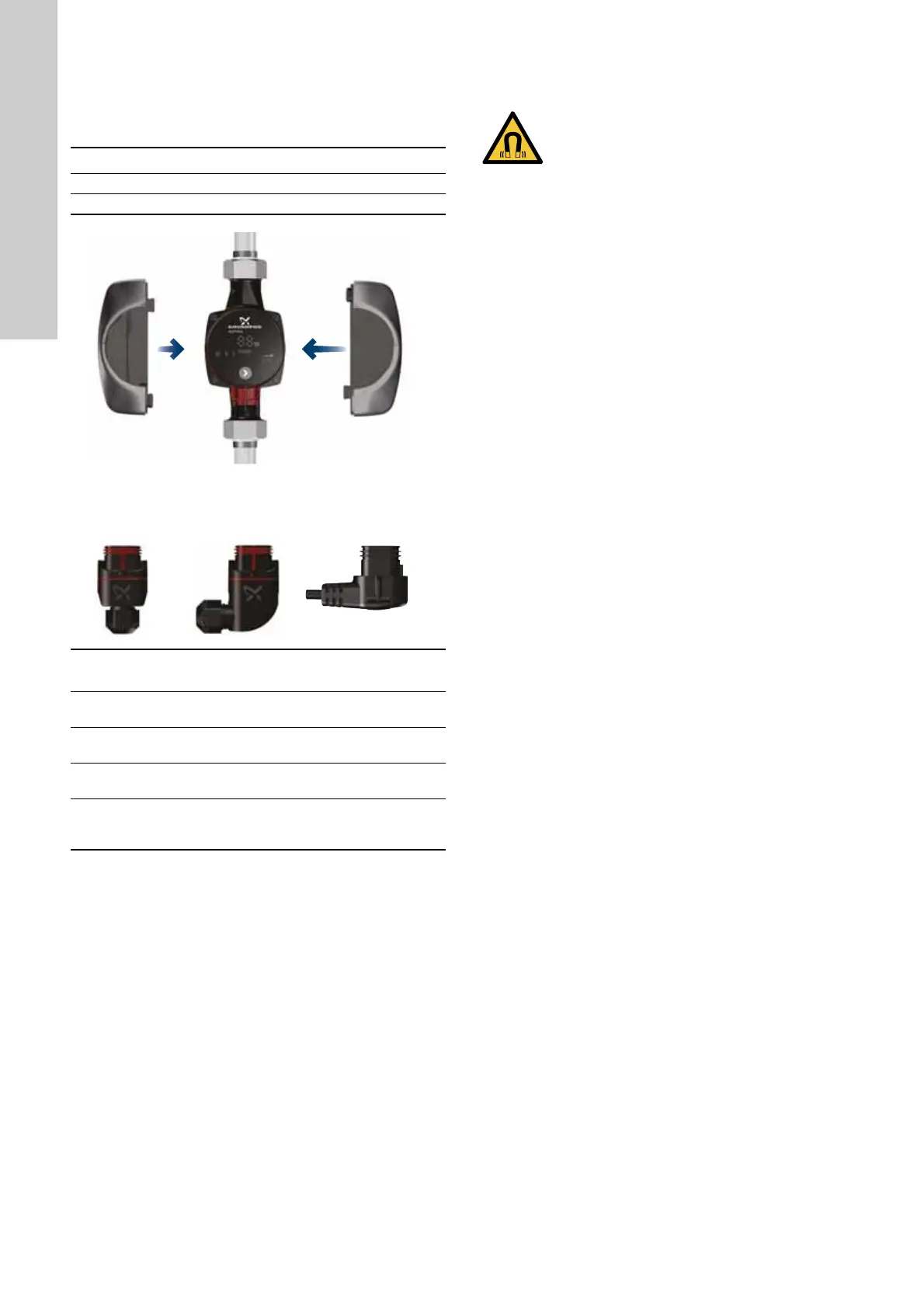

11.2 Insulating shells
The pump is supplied with two insulating shells. The insulating
shells, which are tailored to the individual pump type, enclose the
entire pump housing. The insulating shells are easy to fit around
the pump. See fig. 32.
Fig. 32 Insulating shells
11.3 ALPHA plugs
* This special cable with an active built-in NTC protection
circuit, reduces possible inrush currents. To be used in case of
for instance poor quality of relay components that are
sensitive to inrush current.
12. Disposing of the product
This product has been designed with focus on the disposal and
recycling of materials. The following average disposal values
apply to all variants of ALPHA1 pumps:
• 92 % recycling
• 3 % incineration
• 5 % depositing.
Dispose of this product or parts of it in an environmentally sound
way according to local regulations.
See also end-of-life information at
www.grundfos.com/product-recycling.
Pump type Product number
ALPHA1 XX-XX 130 98091786
ALPHA1 XX-XX 180 98091787
TM06 9093 4317TM06 5823 0216
Pos. Description
Product
number
1
ALPHA straight plug, standard plug
connector, complete
98284561
2
ALPHA angle plug, standard angle plug
connection, complete
98610291
3
ALPHA plug, 90 ° bend to the left,
including 4 m cable
96884669
*
ALPHA plug, 90 ° bend to the left,
including 1 m cable and integrated NTC
protection resistor
97844632
WARNING
Magnetic field
Death or serious personal injury
- Persons with pacemakers dismantling this product
must exercise caution when handling the magnetic
materials embedded in the rotor.
