Grundfos ALPHA1 model B User Manual

Deutsch (DE)
44
10.3 Kennlinien, ALPHA1, XX-40 (N)

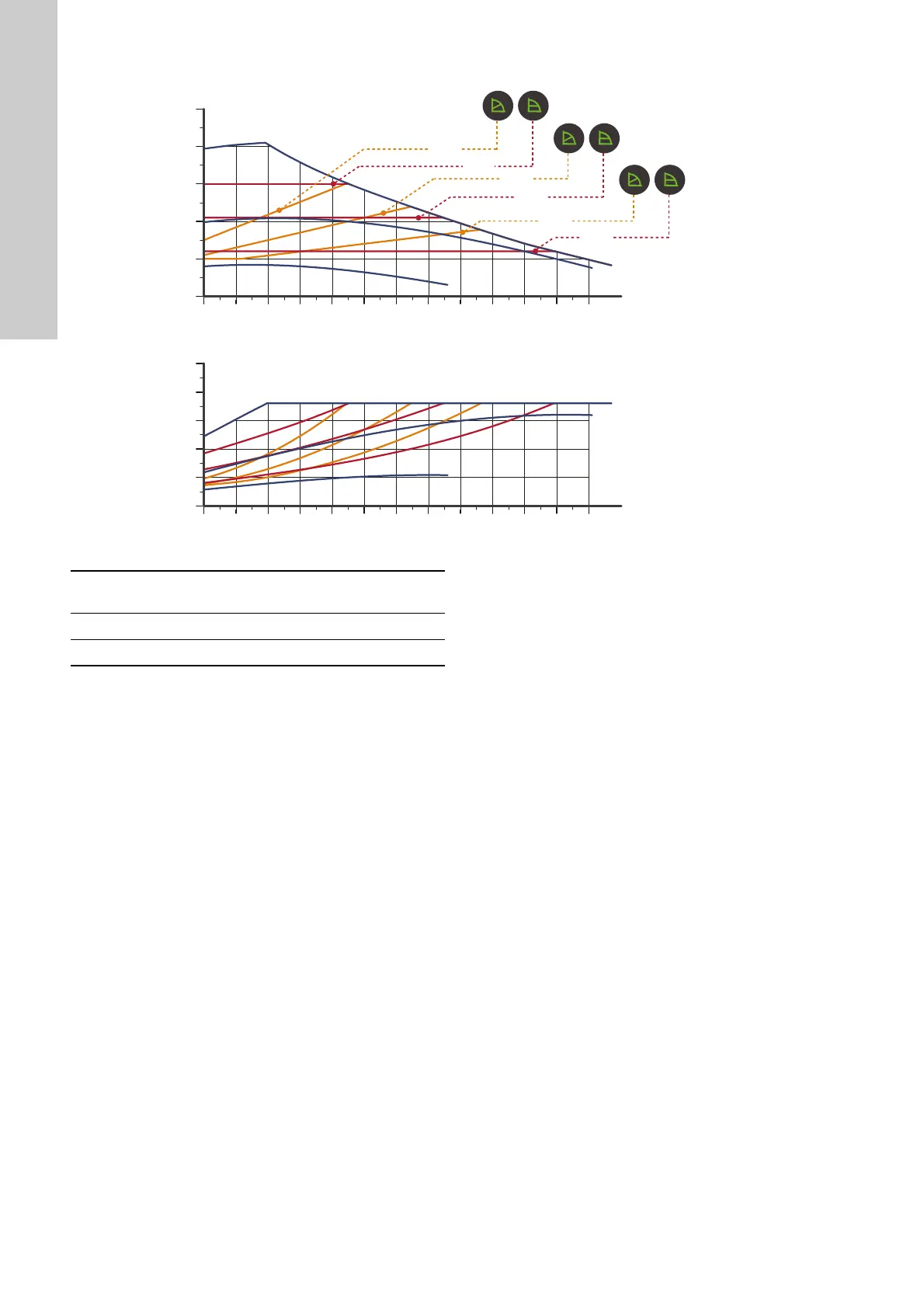

Abb. 27 ALPHA1, XX-40
TM07 0056 4017
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
Q [m³/h]
0
1
2
3
4
[m]
H
III
II
I
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
Q [m³/h]
0
5
10
15
20
[W]
P1
III
II
I
PP1
CP1
PP2
CP2
PP3
CP3
Einstellung
P1
[W]
I
1/1
[A]
Min. 30,04
Max. 18 0,18

Grundfos ALPHA1 model B Specifications

General

Maximum Operating Pressure	10 bar
Supply Voltage	230 V
Enclosure Class	IP42
Insulation Class	F
Pump Type	Circulator
Port-to-port length	180 mm
