Grundfos ALPHA1 model B User Manual

Italiano (IT)
93

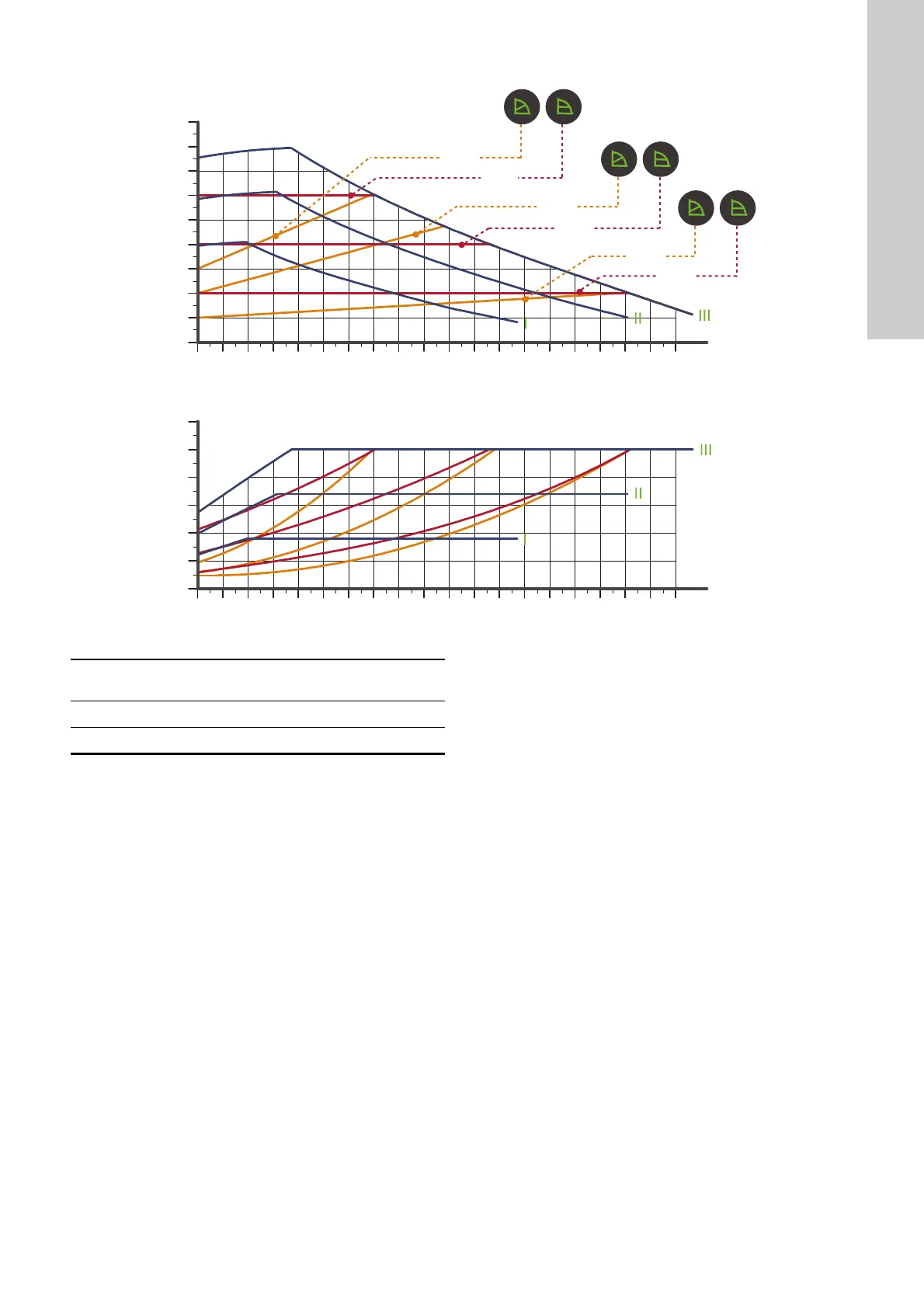

10.6 Curve di prestazione, ALPHA1, XX-80 (N)
Fig. 30 ALPHA1, XX-80
TM07 0057 4017
PP1
CP1
PP2
CP2
PP3
CP3
[m]
H
[W]
P1
Q [m³/h]
Q [m³/h]
8
7
6
5
4
3
2
1
0
50
40
30
20
10
0
0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6
0.0 0.4 0.8 1.2 1.6 2.0 2.4 2.8 3.2 3.6
Impostazione
P1
[W]
I
1/1
[A]
Min. 30,04
Max. 50 0,44

Grundfos ALPHA1 model B Specifications

General

Maximum Operating Pressure	10 bar
Supply Voltage	230 V
Enclosure Class	IP42
Insulation Class	F
Pump Type	Circulator
Port-to-port length	180 mm
