7-6 GTECH Technical Training and Support Services
5. Unplug the Top of Form Harness Assembly, Anti-Jam Sensor Harness
Assembly, Stacker-Motor Harness Assembly, and Power Supply Connector
from the Main Controller PCB Assembly.
6. Unplug the Ground Wire from the Printer Mechanism.

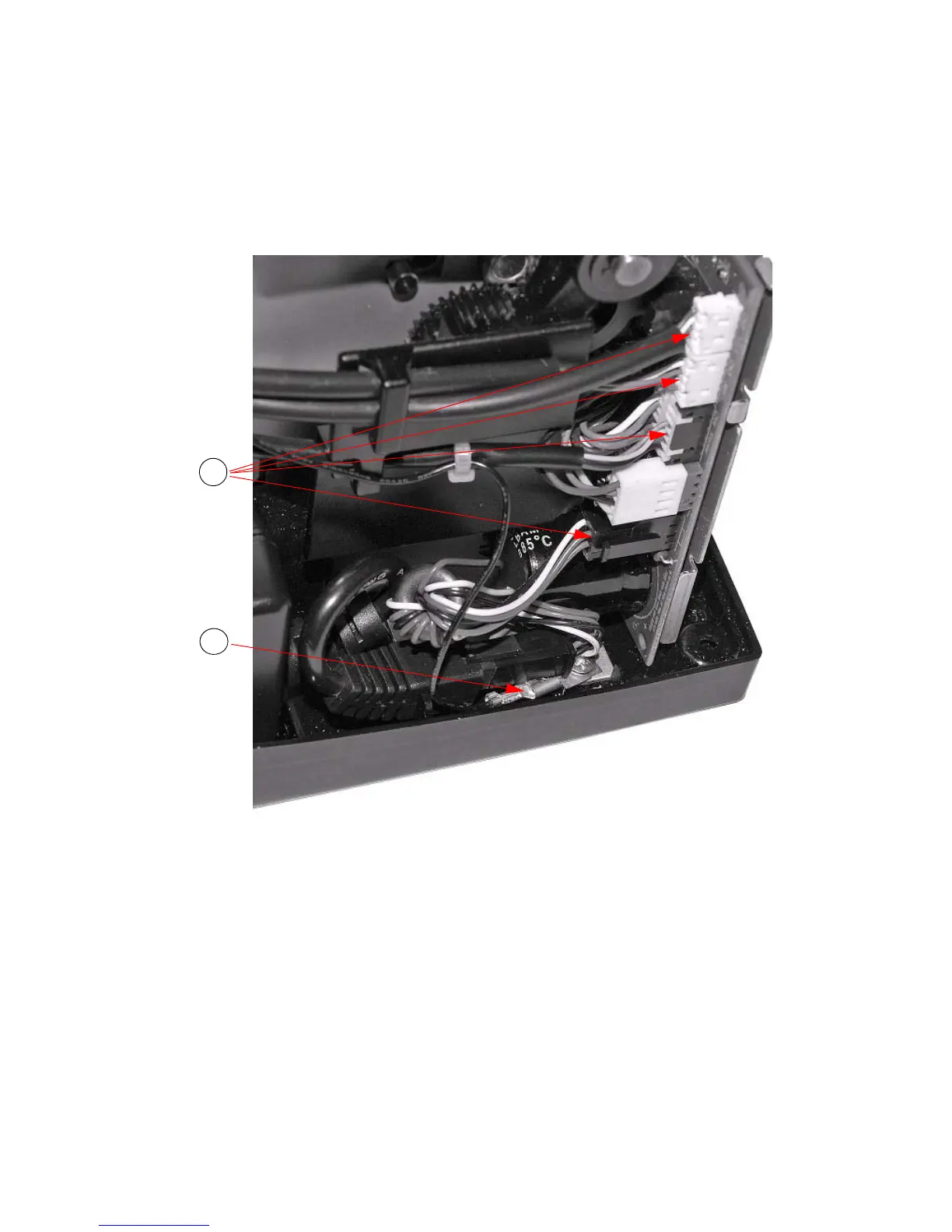

Figure 7-6. Unplug Harness Assemblies
