3. Remove Stacking Gear
4. Remove Stacking Gear/Retaining Ring.
5. Remove Platen Gear.

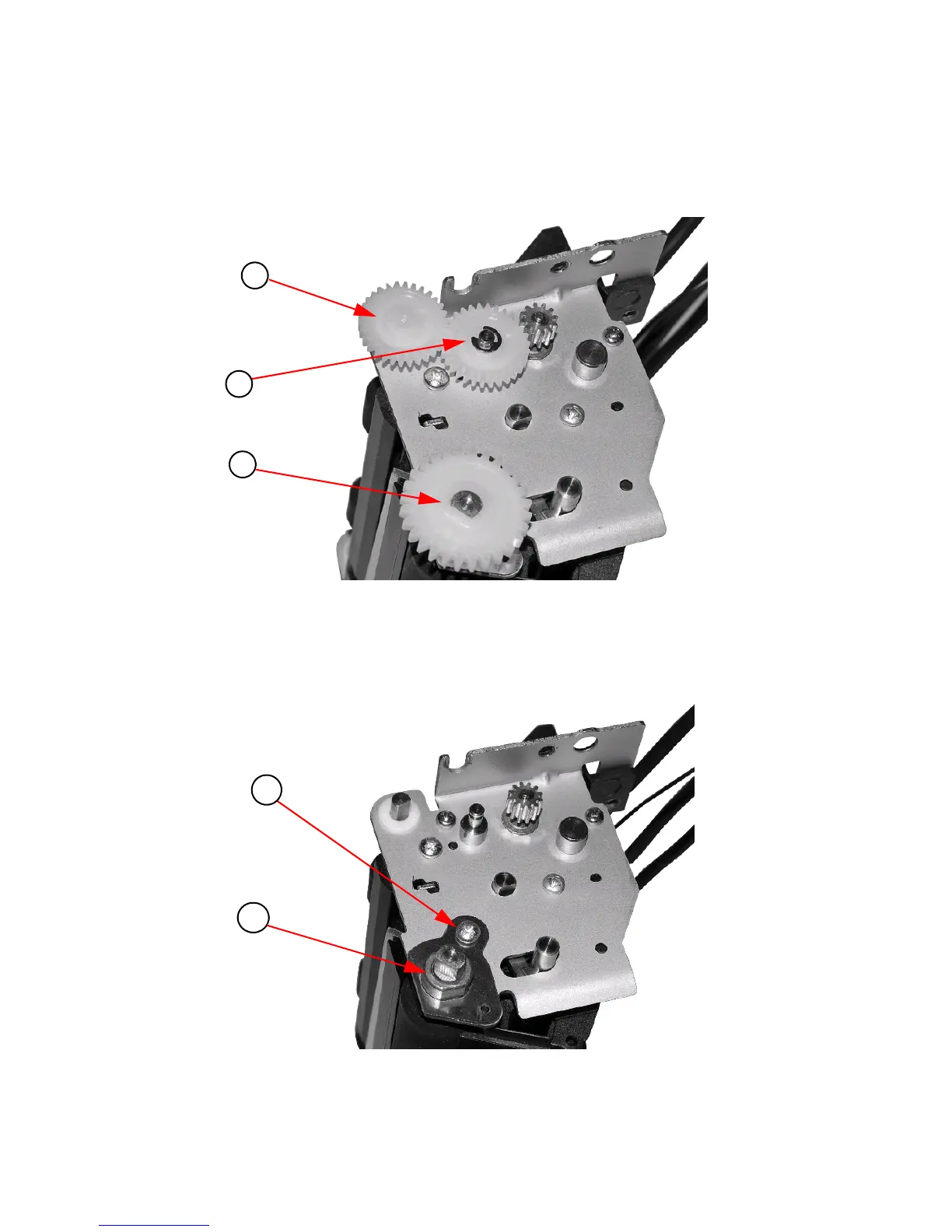

Figure 7-23. Remove Stacking Gear, Retaining Ring and Platen Gear
6. Remove one (1) #4 Thread Forming Screw.
7. Remove the Right Platen Bearing
Retainer.
Figure 7-24. Remove Screw and Right Platen Bearing Retainer
