Disassembly
Service Manual for the Accutherm Ultra Printer 7-27
20. Ensure Latch Arm Hub is in proper location for reassembly.

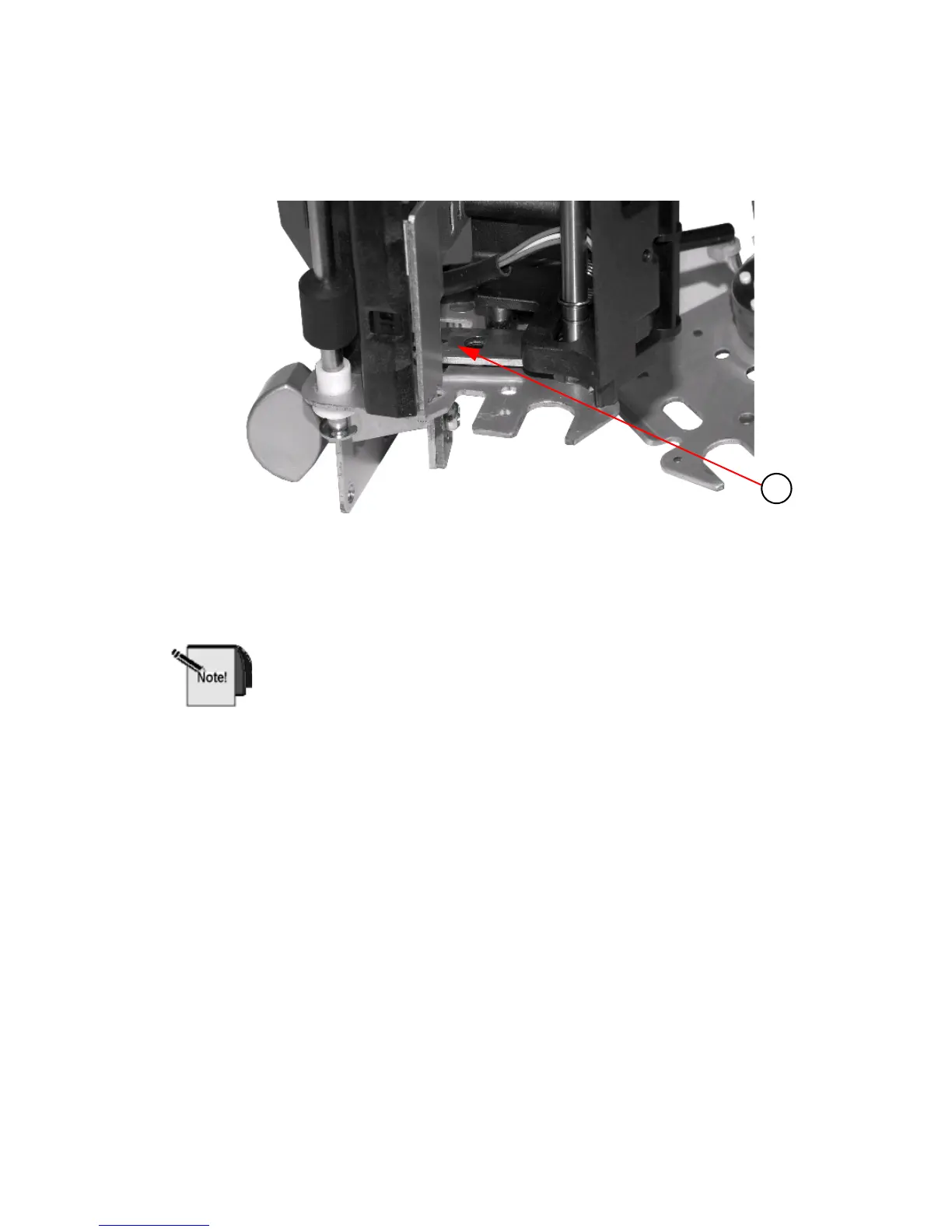

Figure 7-32. Check Location of Latch Arm Hub
Reverse Steps 1 through 20 for reassembly.
When installing Platen, Striper, and Bearings, ensure the Striper
locating bosses are aligned with the mating holes in the Left and Right
Side Plates, and then tighten screws. Platen should spin freely when
assembly is complete.
