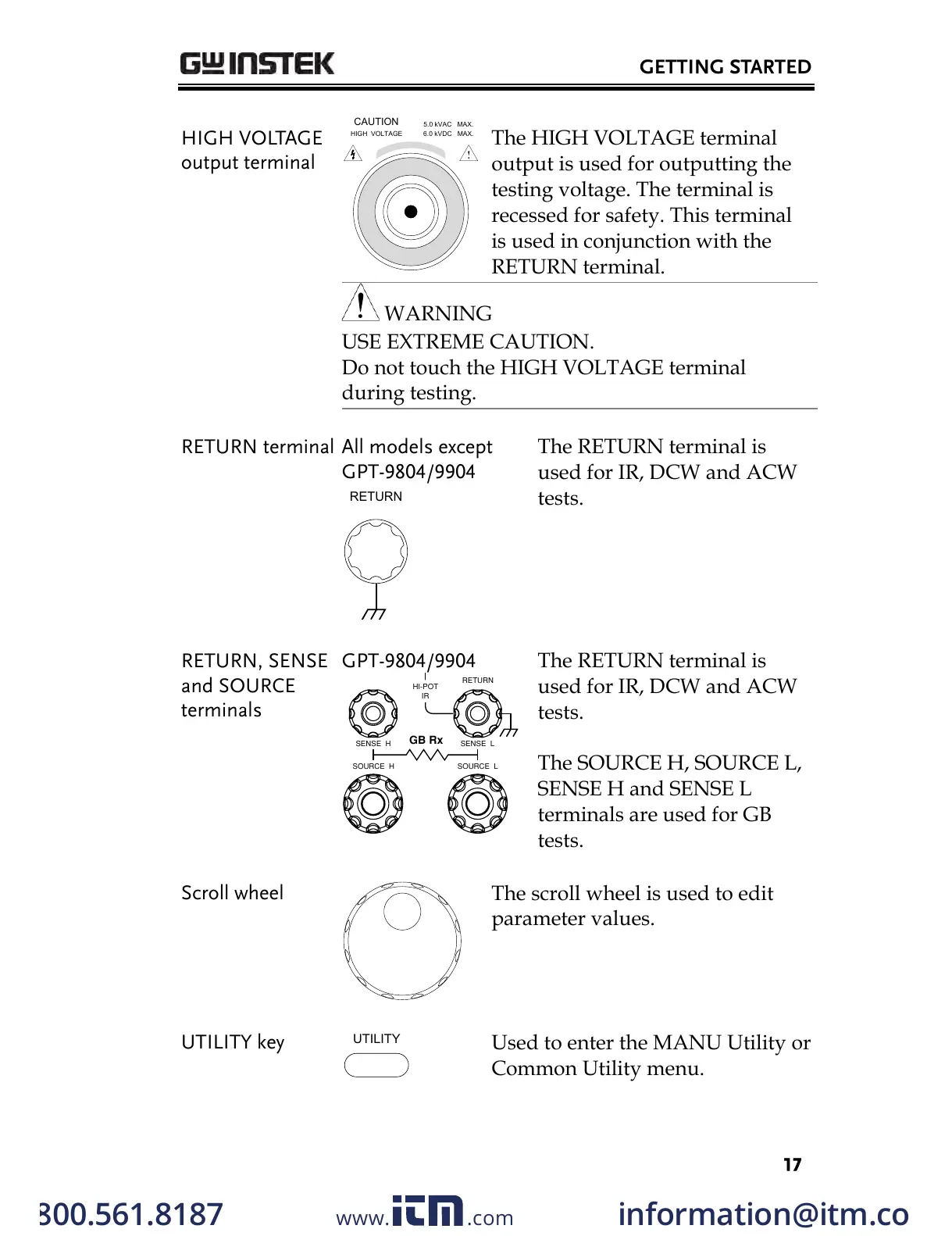

HIGH VOLTAGE
output terminal
HIGH VOLTAGE
CAUTION
5.0 kVAC MAX.
6.0 kVDC MAX.
The HIGH VOLTAGE terminal
output is used for outputting the
testing voltage. The terminal is
recessed for safety. This terminal
is used in conjunction with the
RETURN terminal.
WARNING
USE EXTREME CAUTION.
Do not touch the HIGH VOLTAGE terminal
during testing.
All models except
GPT-9804/9904
The RETURN terminal is
used for IR, DCW and ACW
tests.
RETURN, SENSE
and SOURCE
terminals
SOURCE H
SENSE H
SOURCE L
SENSE L
GB Rx
RETURN
HI-POT
IR
The RETURN terminal is
used for IR, DCW and ACW
tests.
The SOURCE H, SOURCE L,
SENSE H and SENSE L
terminals are used for GB
tests.
The scroll wheel is used to edit
parameter values.
Used to enter the MANU Utility or
Common Utility menu.
