H3C S3600 Series Ethernet Switches Chapter 3 Installation
3-5
Front panel
Screw 1
Front mounting ear
Three installation locations for screw 1 (select one according to the actual requirement)
Front
mounting ear
Screw 1
Front panel
Screw 1
Front mounting ear
Three installation locations for screw 1 (select one according to the actual requirement)
Front
mounting ear
Screw 1

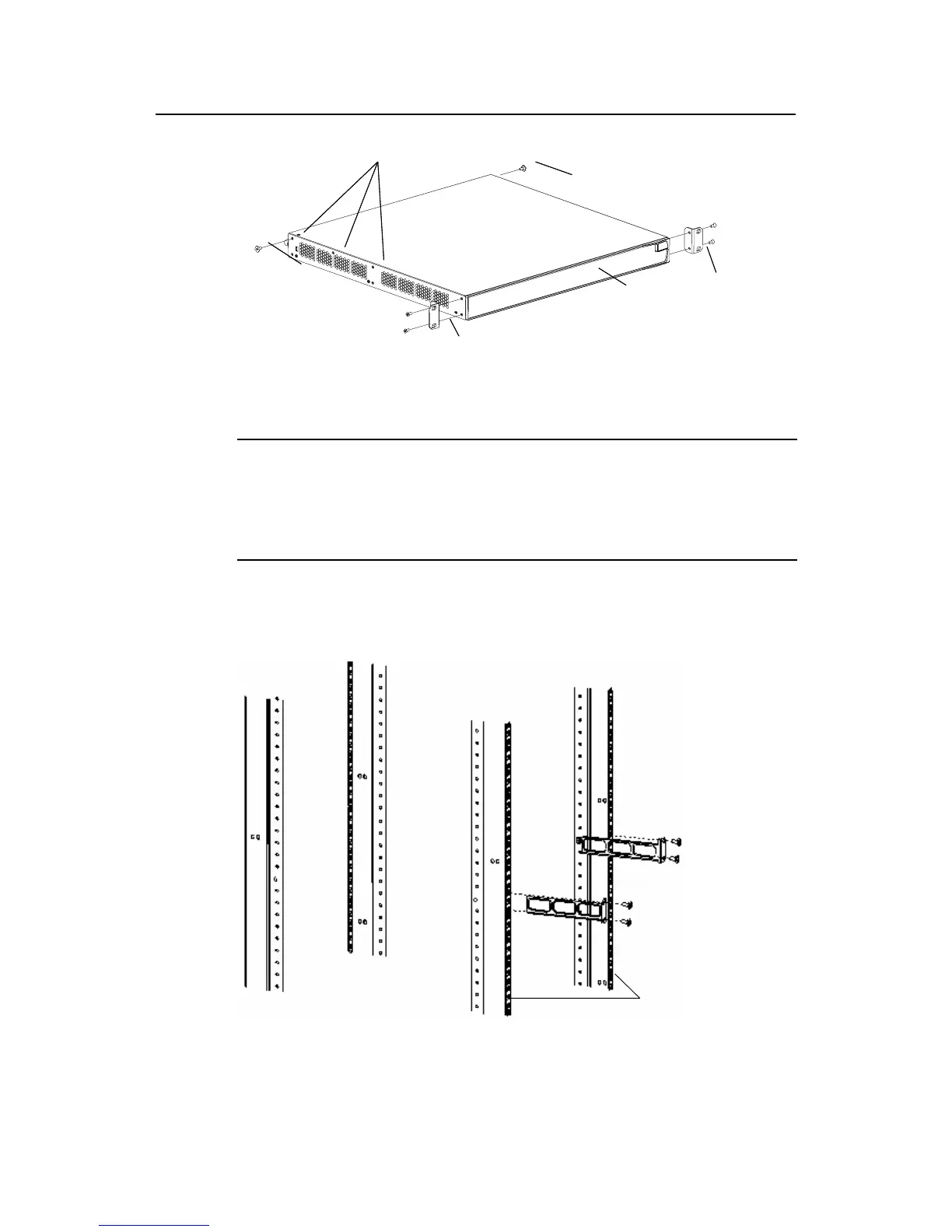

Figure 3-5 Fix front mounting ears and load-bearing screws
 Note:
There are three positions to mount a load-bearing screw on both sides of a switch. You
should select a proper position according to the actual requirements. The rear
mounting ears tightly contacted with the load-bearing screws can support the switch.
4) Select a position to install the switch and fix the rear mounting ears to the rear
brackets with screws and captive nuts, as shown in
Figure 3-6.
Rear square-holed rac
k
Figure 3-6 Fix rear mounting ears
