Switch model
Mounting bracket
position
Distance between the front
and rear rack posts
Chassis rail
installation
position
S9850-4C
Port-side mounting
position, as shown
in Figure 30
675 to 9
23 mm (26.57 to 36.34 in) Position a
611 to 858 mm (24.06 to 33.78 in) Position b
546 to 793 mm (21.50 to 31.22 in) Position c
518 to 728 mm (20.39 to 28.66 in) Position d
Power module-side
mounting position, as
shown in Figure 31
518 to 728 mm (20.39 to 28.66 in) Position e
546 to 793 mm (21.50 to 31.22 in) Position f
611 to 858 mm (24.06 to 33.78 in) Position g
S9850-32H
(long slide rails)
Port-side mounting
position, as
shown Figure 32
621 to 7
88 mm (24.45 to 31.02 in) Position a
621 to 853 mm (24.45 to 33.58 in) Position b
Power module-side
mounting position, as
shown in Figure 33
621 to 853 mm (24.45 to 33.58 in) Position c
621 to 788 mm (24.45 to 31.02 in) Position d
S9850-32H
(short slide rails)
Port-side mounting
position, as shown
in Figure 32
401 to 5
88 mm (15.79 to 23.15 in) Position a
454 to 633 mm (17.87 to 24.92 in) Position b
Power module-side
mounting position, as
shown in Figure 33
454 to 633 mm (17.87 to 24.92 in) Position c
401 to 568 mm (15.79 to 22.36 in) Position d
3. Place the chassis rail against the chassis side panel. Align the chassis rail installation holes with
the screw holes. Use the provided M4 screws to attach the chassis rail to the chassis
(recommended torque: 12 kgf-cm). See Figure 22 to Figure 31.
You ca
n use super-short slide rails and long chassis rails to rack-mount the S6850-56HF switch.
Based on the rack depth, install the long chassis rails with the chassis rails not reaching out of
the chassis, as shown in Figure 23 and Figure 26 or
with the chassis rails reaching out of the
chassis, as shown in Figure 24 and Figure 27.

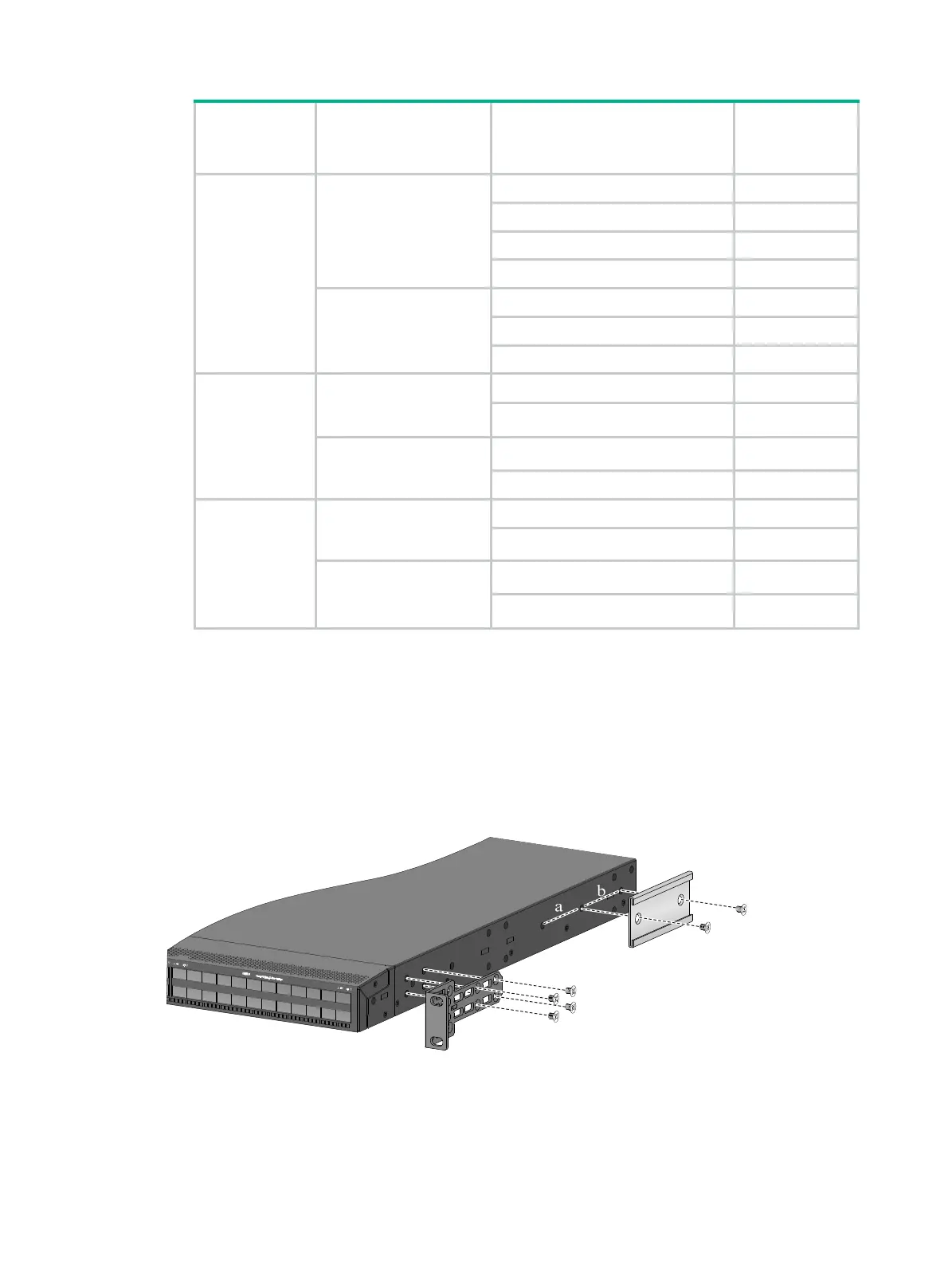

Figure 22
Attaching the mounting brackets and chassis rails to the S6850-56HF switch
(port-side mounting position for the mounting brackets, long slide rails)
