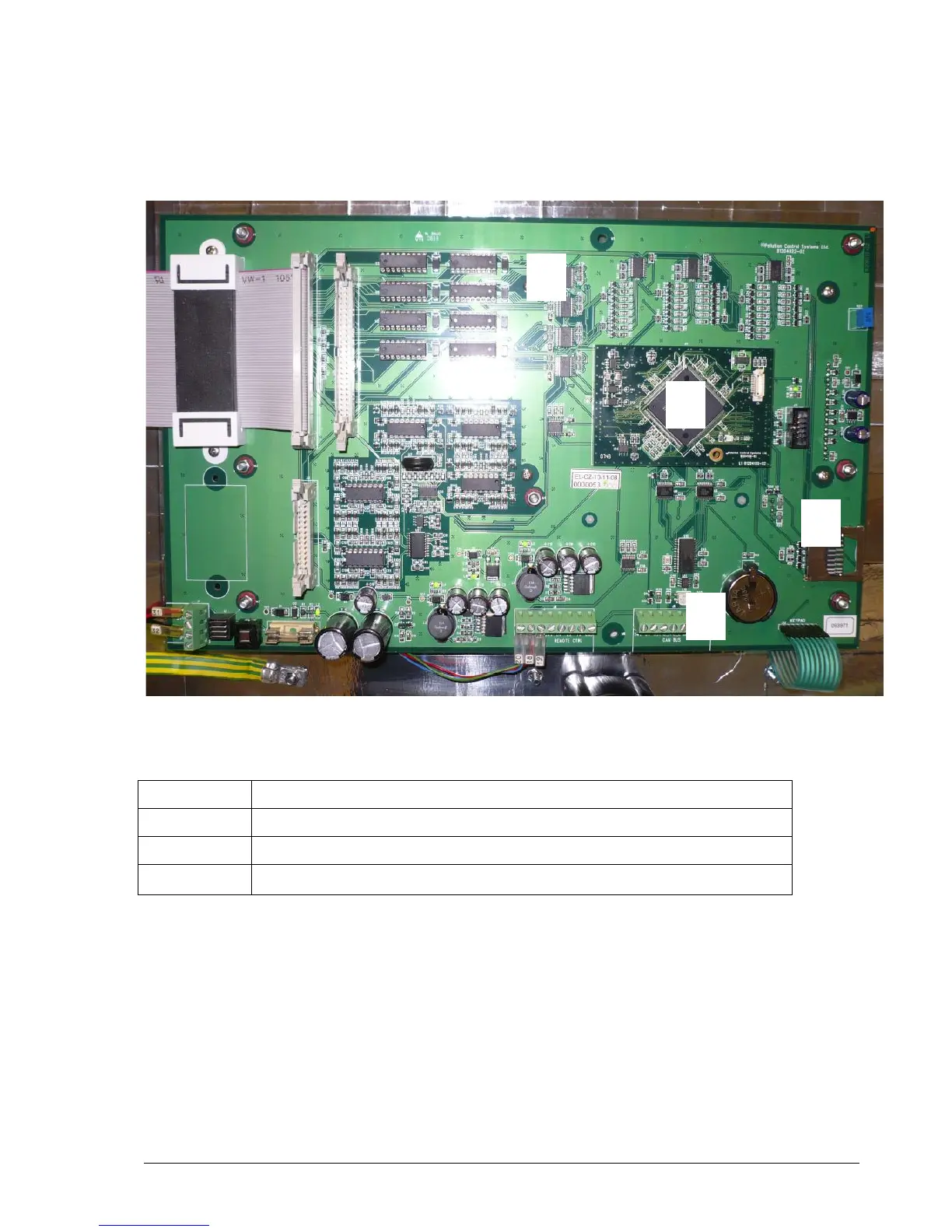

Figure 3 and table 4 below shows the BioTector main board (motherboard) components.
Figure 3 BioTector main board components
Table 4 BioTector main board components
1
Main Board (Motherboard)
2
Processor PCB
3
MMC/SD Flash Memory Card Slot
4
Battery (Varta, CR2430, Lithium, 3V, 285mAh)
Hazardous area analyzers may have a special battery. Contact manufacturer for details.
