5.2.1 Analyzer Dimensions and Mounting
The BioTector TOC TN analyzer enclosure is a dual compartment Fiberglass Reinforced Polyester (FRP)
cabinet. This enclosure facilitates easy access to all components and thus eases the service and
maintenance procedures. Figure 7 and table 5 below gives the dimensions of various BioTector enclosures.

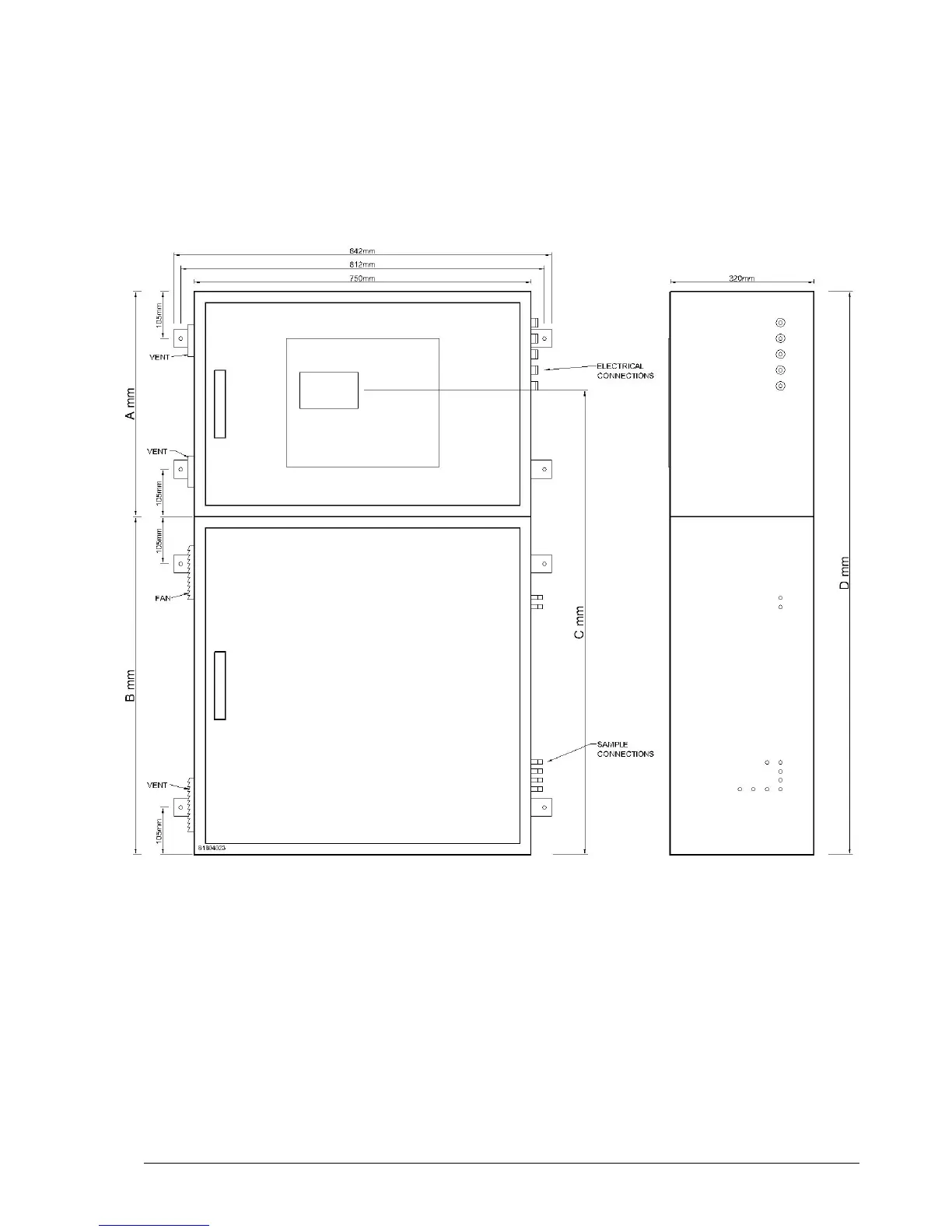

Figure 7 BioTector Dimensions
