Put the remote indicator cable into the analyzer

Pre-requisite: Cut the remote indicator cable so that it a sufficient length to install the loose end in

the analyzer.

Put the remote indicator cable through the cable fitting and into the analyzer.

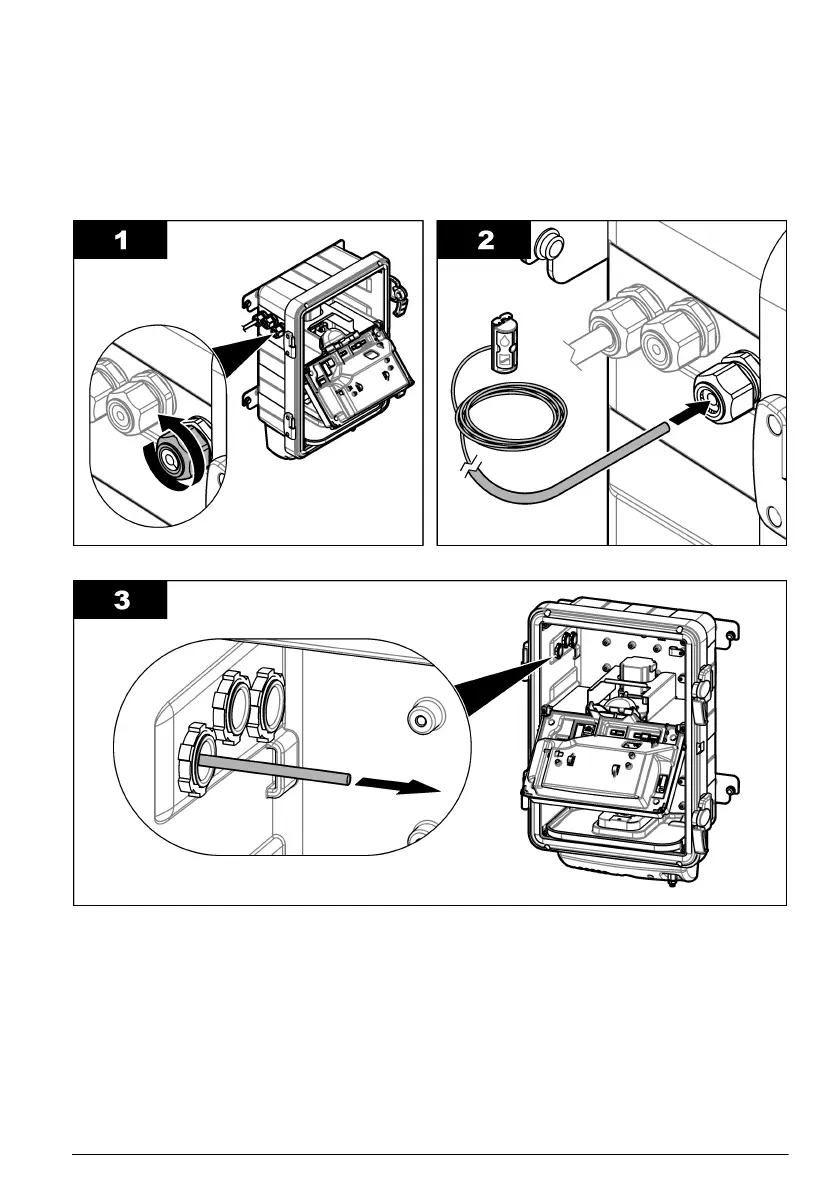

Note: An illustration is supplied for each step number.

1. Loosen the nut of the cable fitting.

2. Push the end of the cable into the cable fitting.

3. Pull the cable through the cable fitting.
