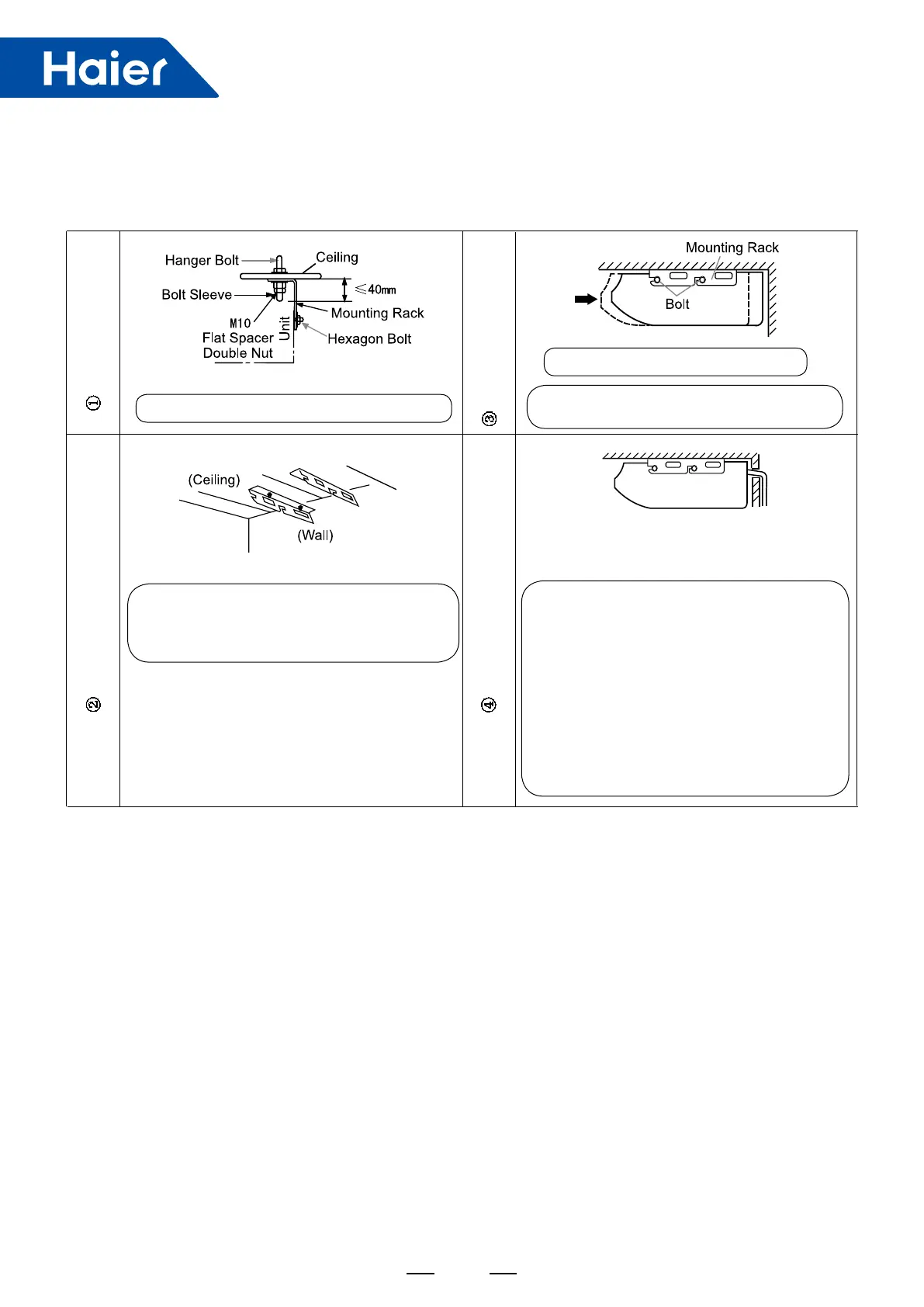

Air Conditioner Installation Diagram
①
Hanger Chain Hook
Hanger bolt is 40mm below ceiling.
③
Installing Air Conditioner
Screw tight hexagon bolt to x air
conditioner.
Insert hexagon bolt into slot.
②
Installing Status of Mounting Rack
④
Drain Pipe Leading-out Direction
Leveling is forbidden after air conditioner is
installed; please make adjustment according to
diagram indication.
CAUTION: Drain pipe shall be positioned high
inside and low outside.
According to requirements on the site, drain
pipes shall be prepared by users on their
own resources and make sure that these
are connected to drain pipes previously
available with the unit (make sure that
measures are taken to guard against water
leakage in junction areas); heat preservation
shall be available with certain indoor drain
pipes through using heat insulant to prevent
condensation.
⑤
Installing Deco Plate and Inlet Grille (after pipeline laying and electric wiring are done).
