Haier AB072MRERA - Wiring Diagram

483
Console Type
Indoor Unit

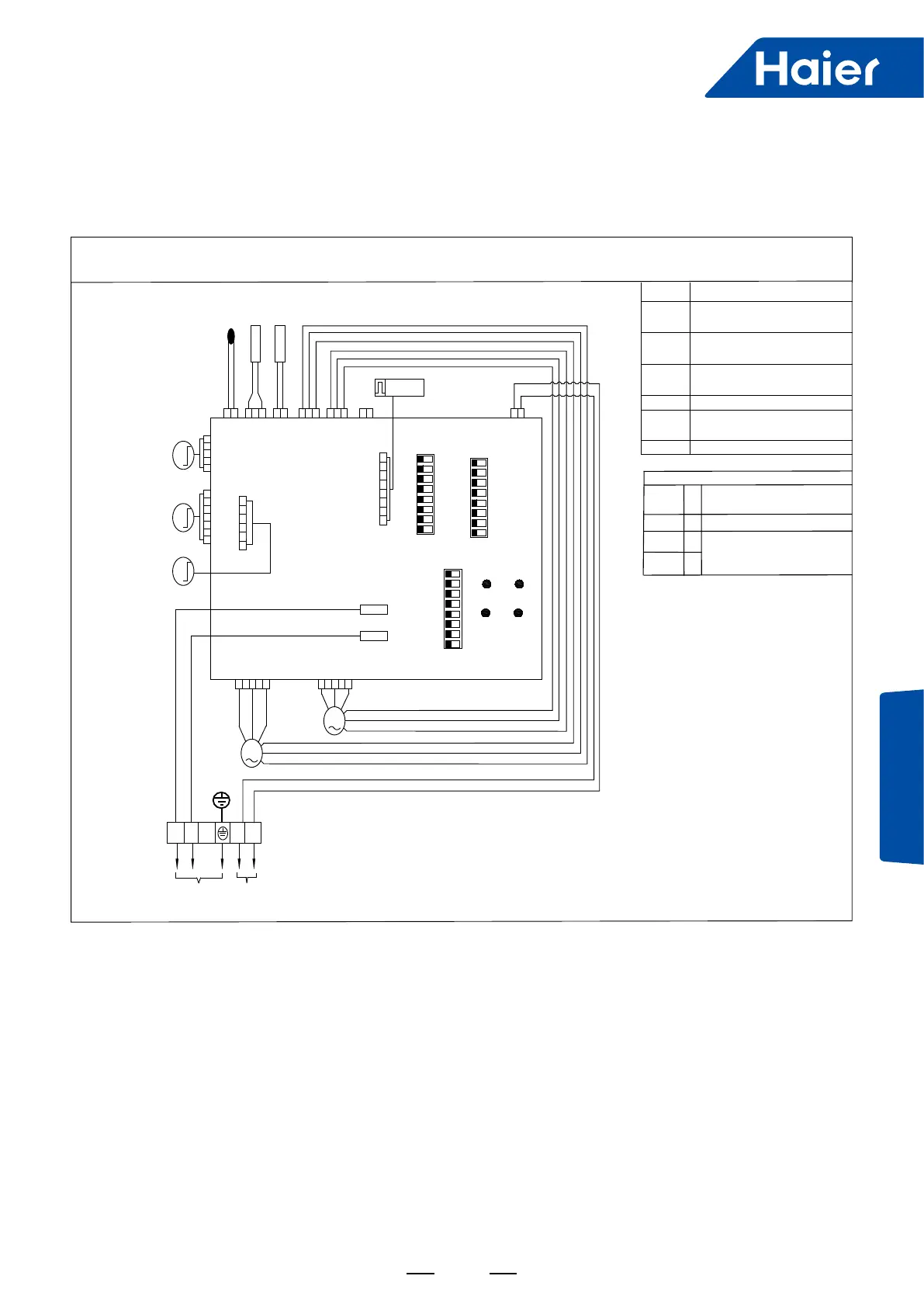

19.5 Wiring diagram
2 3 4 5 6 7 8
1
ON
2 3 4 5 6 7 8
1
ON
2 3 4 5 6 7 8
1
ON
SW1
SW2
SW3
M
SWING
MOTOR
M
SWING
MOTOR
TC1
TC2
TA
CN18
CN17
2NC 3NC
CN10
CN9
CN8
CN7
CN5
CN4
CN6
LED2
LED3
LED1
LED4
M
P/G
MOTOR
M
Q
P
L N
B
W
BR
CN16
LED
P/G
MOTOR
M
EEV
CN12
TO POWER SUPPLY
(To O.D unit)
Transmission
Wiring
1PH,220-230V,50/60Hz
RC
TW
G
G
B
R
Y/G
R
C0N2
C0N1
TC2
TC1
EEV
TA
Symbol
Electronic Expansion
Liquid Pipe Temperature
Gas Pipe Temperature
Ambient Temperature
Description
TW
Terminal Block
RC
Room Card
sensor
sensor
sensor
Valve
LED4
LED3
G
R
Malfunction Lamp for
R
G
LED1
LED2
Transmission lamp
between I.D and
Transmission lamp
LED
I.D unit
O.D unit
R:RED BR:BROWN OR:ORANGE
BL:BLUE G:GREEN GR:GRAY
Y:YELLOW W:WHITE B:BLACK
Y/G:YELLOW/GREEN
248
AF*MAERA PCB code: 0151800086
