DC Slim Duct Type
Indoor Unit
225
Installation modes of Indoor unit
Installation space and method
AD052MSERA(D) AD072MSERA(D) AD092MSERA (D) AD122MSERA(D)
AD162MSERA(D) AD182MSERA (D) AD242MSERA(D)
Air in

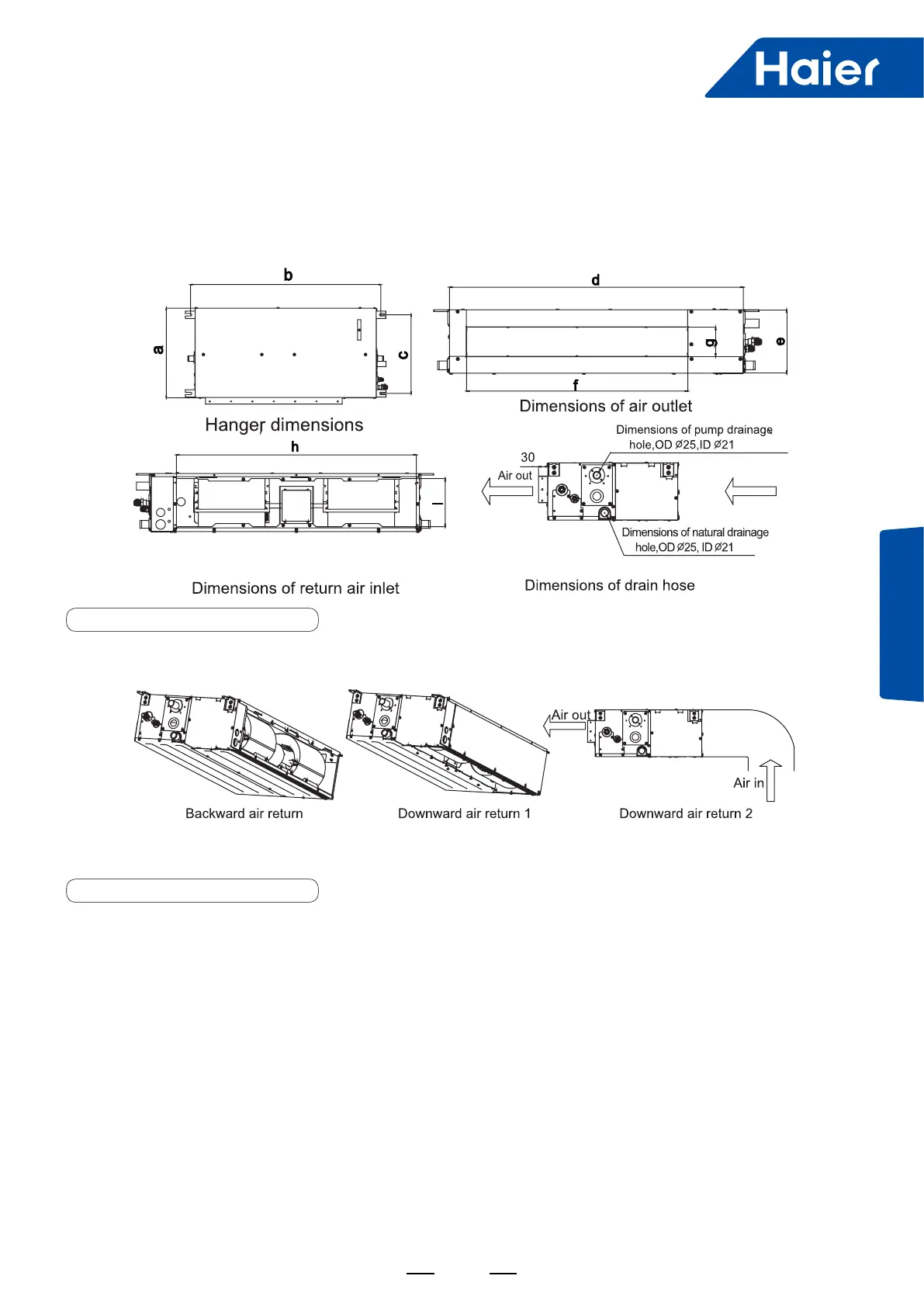

This series of air conditioners can be arranged in two air return modes: 1. backward air return (factory default); 2.
downward air return (can be adjusted on site. See the following gures.)
Note: the downward air return mode would increase noise 3-5dB(A). It is recommended to install the air conditioner
in downward return air mode 2 if enough space is available.
Body installation
1.Use M10 lifting bolts.
2.Ceiling removal: For different building structures, please consult with indoor decoration personnel about actual
conditions.
a.Ceiling reinforcement: To ensure the ceiling is horizontal and will not shake, the ceiling base frame must be
reinforced.
b.Cut off and remove the ceiling base frame.
c.Reinforce the end faces left when the ceiling is removed and further reinforce the base frame that x both ends of
the ceiling.
d.After the body installation is complete, it is time to install pipes and wires. Before installation, choose a suitable
installation position and determine the outgoing direction of pipes. Especially in case that a ceiling exists, please
pull refrigerant tubing, drain hose, indoor and outdoor connecting wires, control wires to their connection positions
prior to hanging the machine.
