Medium ESP Duct Type
Indoor Unit (AD*MNERA)
Choice of Blowing Wind from Blower
(when using the high performance lter)

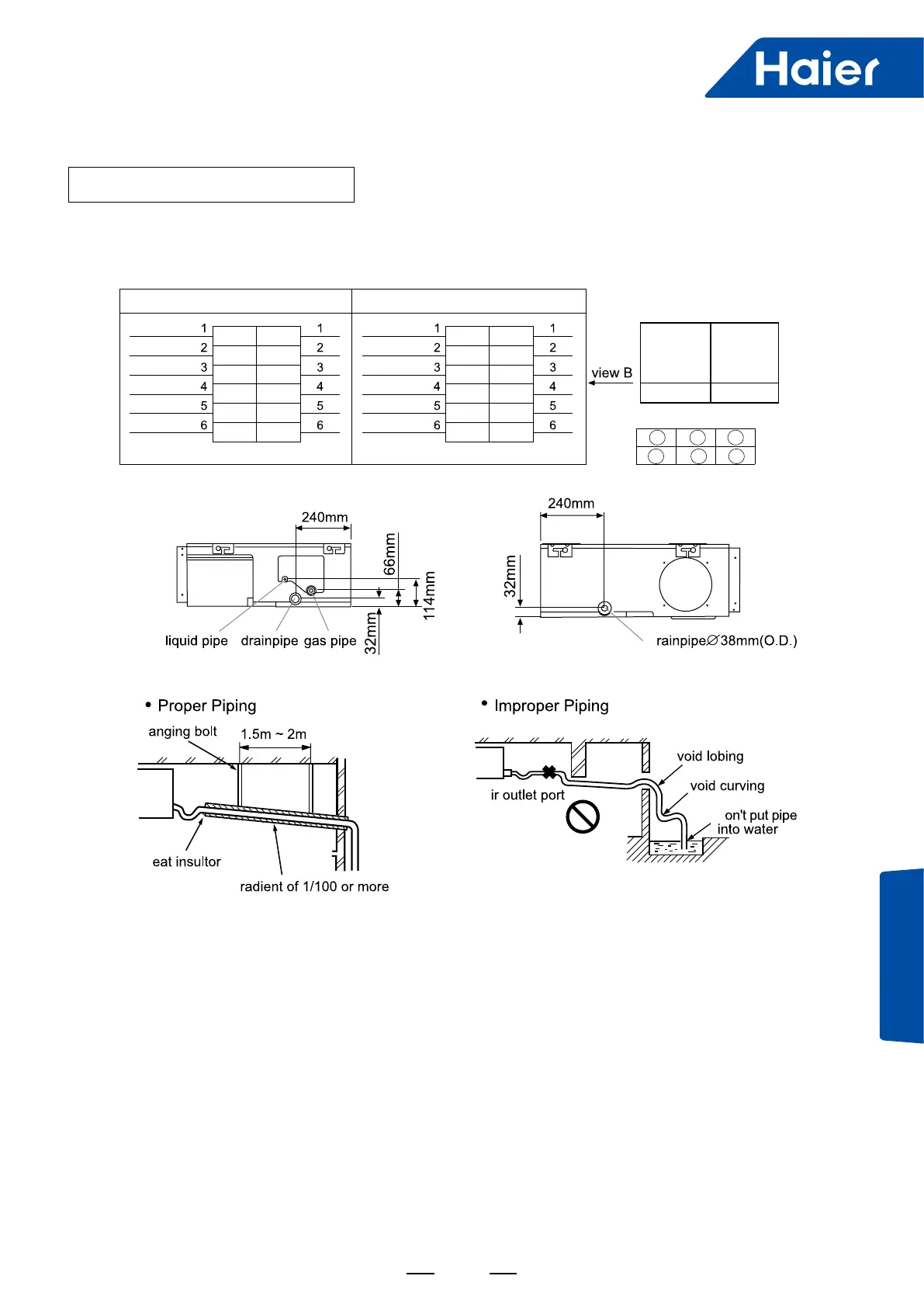

The blower is provided with a red terminal and a white terminal. The standard wind choice has been set before
delivery. When the use of optional components, such as the high performance lter, causes the static pressure
rising, change the connection of the connector mounted on the side of the control cabinet, as shown as follows.
Standard
static
pressure
Maximal
static
pressure
80 120
Static Pressure Range
unit: Pa
terminal gure of view B
1
6
3
54
2
4. Drain pipes
(a) Keep a gradient (1/50-1/100) of the drainpipes and avoid lobbing or curving.
(b) When connecting the drainpipe to the equipment, don't apply too much force on one side of the equipment.
Meanwhile, the piping should be positioned as close to the equipment as possible.
(c) For the drainpipe, the general purpose hard PVC tube can be purchased at local shops. During the connection,
insert the end of PVC tube into the wash port and fasten it with drainage hose and thread clip. Binding agents
shouldn't be used to connect the wash port and drainage hose.
Standard blowing wind (at delivery)
White RedWhite White
High High
Blue Blue Blue
Capacitance line Capacitance line
High-speed blowing wind
Low Low
Black BlackBlack Black
Montor side Montor side
Middle Middle
Yellow Yellow Yellow
Capacitance line Capacitance line
Communal port Communal port
Orange OrangeOrange Orange
Orange OrangeOrange Orange
PCB side PCB side
D
A
A
A
G
H
H
D
White
Blue
