HRV

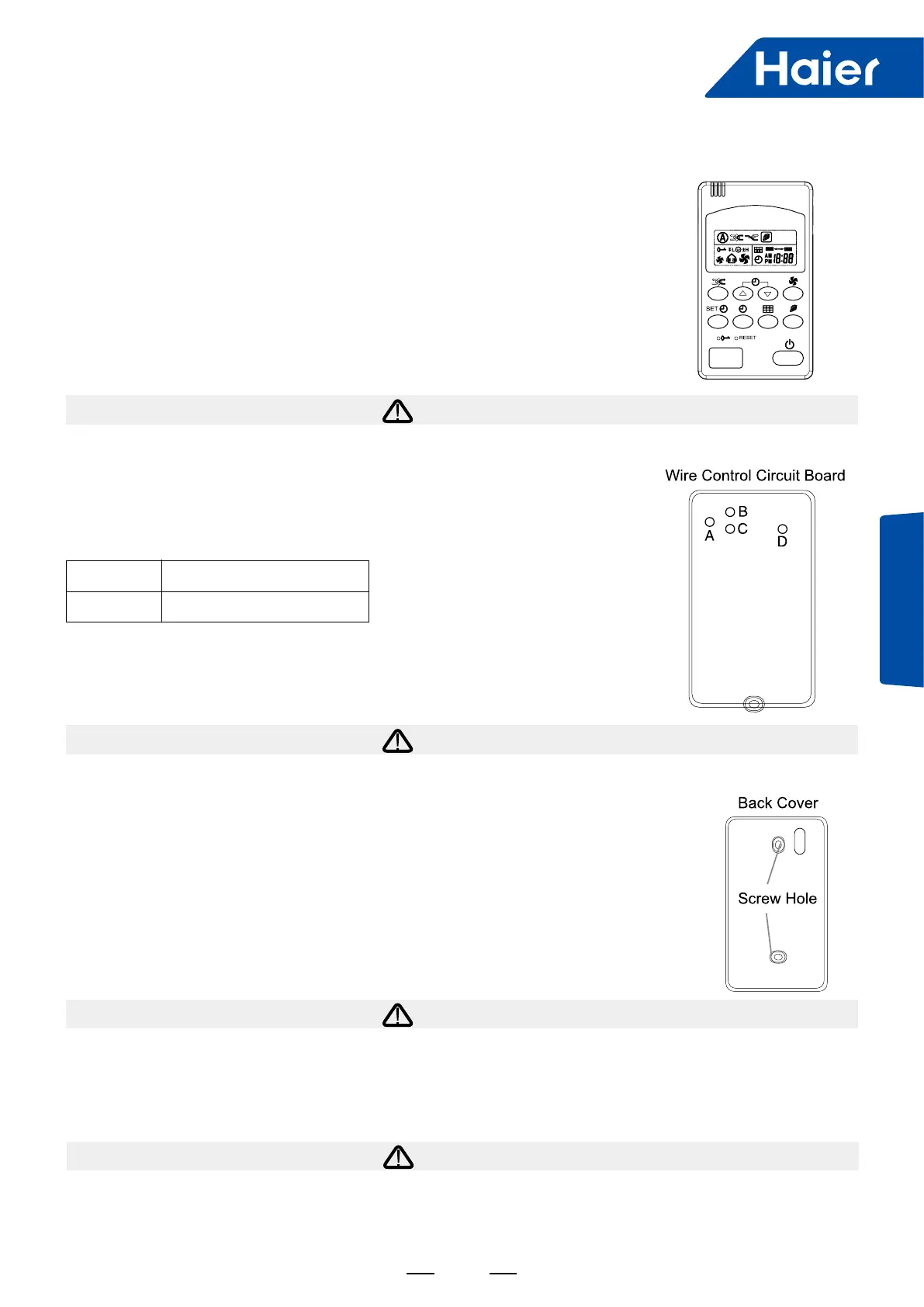

Installing Wire Control
1. Removing Top Cover
2. Indoor Unit Connection
3. Installing Wire Control
4. Close top cover and take care not to press on wire.
Install PC plate on the top cover of wire control.
Take care not to damage PC plate while removing top cover.
Connect terminals (A, B, C) on bottom of wire control to terminals (+12V, GND, s)
on indoor PC panel.
Bore two holes on wall according to the positions of two screw holes on the back
cover of wire control; x back cover with bolts and close front cover.
While conducting connection, keep certain distance (over 10mm) between signal line and power line.
Make sure that terminal joints have been connected tight and no short circuit exists between terminals.
Fix back cover on even wall surface, and do not apply too much force when screwing down bolts lest wire control is
damaged.
Do not touch PCB panel with hands
Size of Signal Line:
Type
Size
Shield Line (three cores)
0.33mm
2
CATUION
CATUION
CATUION
CATUION
