Panel Saw
K3 basic/K3 winner
Setup and installation
The saw guard is mounted onto the splitter. The mounting
depends on the diameter of the saw blade:
• Saw blade recess from 300 up to 315 mm
• Saw blade recess from 250 mm
1. Loosen the thumb nut.
2. Push the hood stud to the back with the thumb nut.
3. Remove the saw guard and insert it into the other
recess.
4. Tighten the thumb nut.
7.4 Chip extraction
The machine has to be connected to a dust extractor.
Requirements for the vacuum system and hoses:
Unit Saw guard
Dust extraction port-Ø 120 mm 50 mm
Air speed, rpm 20 m/s 20 m/s
Vacuum, rpm 1824 Pa 953 Pa
Volume flow, rpm (New at Format4 20 m/s) 814+35 1900 m³/h 680 1900 m³/h
Attention! The vacuum hoses must be flame retardant. Only use original HAMMER vacuum hoses!
• The vacuum system must produce the required vacu-
um and air flow.
• Connect the vacuum system to the machine in such a
way that they run in unison.
• The vacuum hoses must be electrically conductive
and grounded to prevent electrostatic loading.
Before putting the machine into operation for the first
time, inspect it for defects.

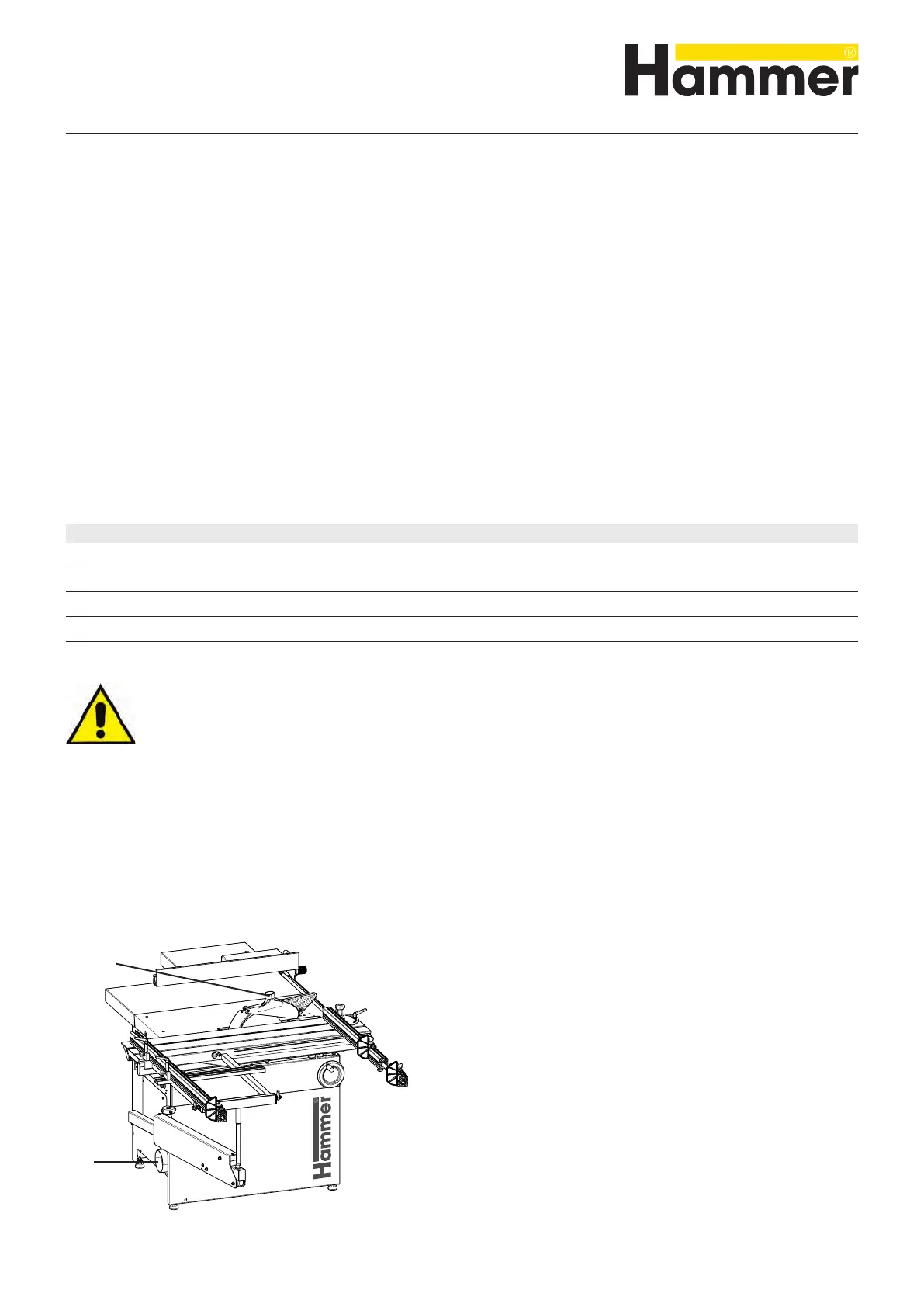

Fig. 34: Connectors
Connection to the exhaust system:
! Connection Ø = 50 mm
" Connection Ø 120 mm
