Panel Saw
K3 basic/K3 winner
Making adjustments and preparations

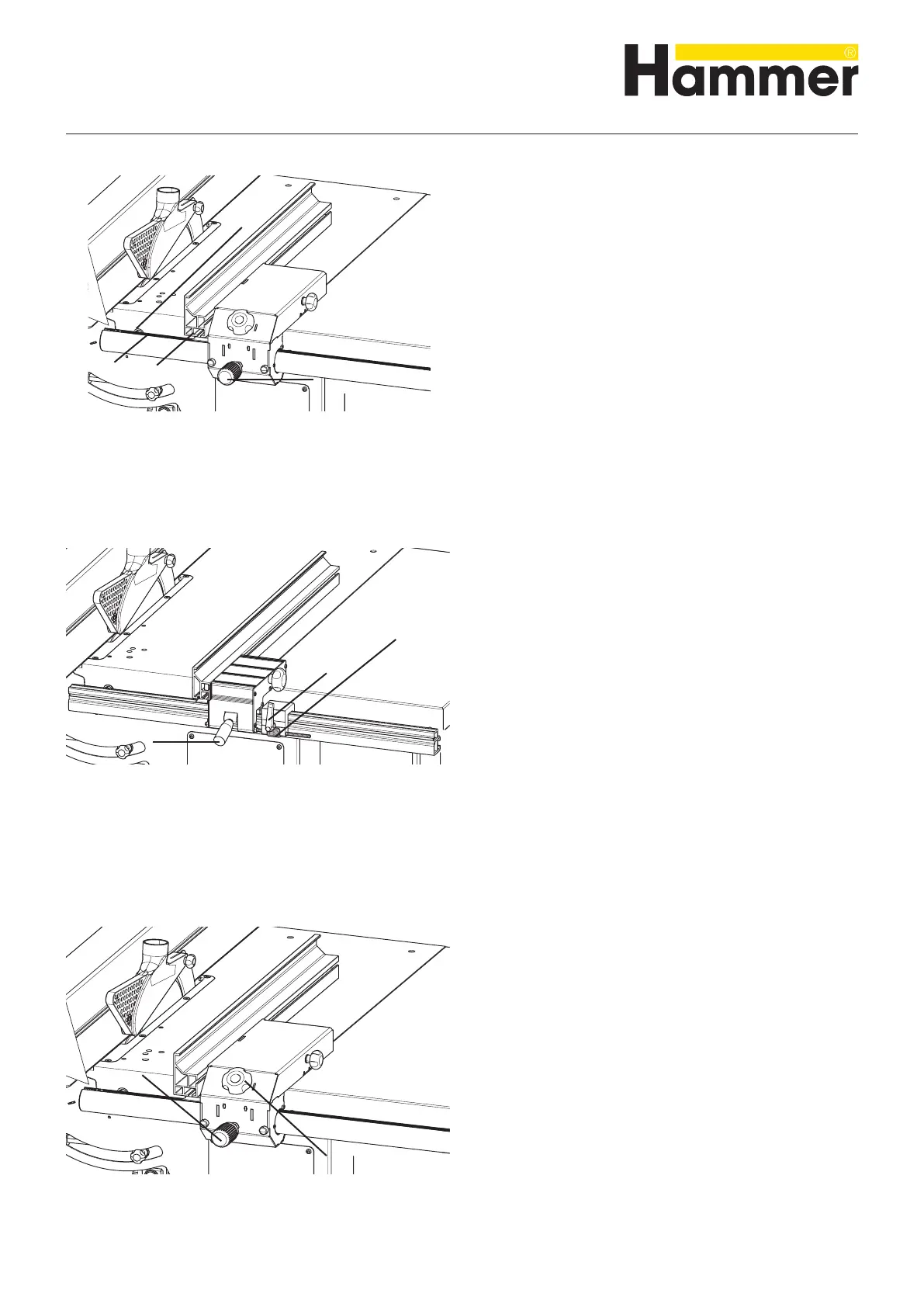

Fig. 43: Parallel cutting fence K3 winner
K3 winner:
1. Loosen the knurled handle.
2. Read the dimension from the scale on the front edge
of the indicator.
3. Move the scale by the measurement required to
adapt the scale to the different widths of the saw
blade:
-Loosen the locking plate.
- Move the scale.
- Tighten the locking plate.
4. Lock the knurled handle.
! Scale #Knurled handle
" Indicator $Locking plate
8.7.2 Fine adjustment
K3 basic (Optional):
1. Loosen the clamping lever.
2. Clamp the clamping lever.
3. Adjust finely with the thumb nut.
! Clamping lever
" Clamping lever
# Thumb nut
Fig. 44: Parallel cutting fence K3 basic
Attention: Always carry out the adjustment towards the circular saw to be able to compensate for the
thread clearance.
Fig. 45: Parallel cutting fence K3 winner
K3 winner:
1. Loosen the knurled handle.
2. Press the thumb nut inwards.
3. Adjust finely by turning the thumb nut.
4. Tighten the knurled handle following the fine adjust-
ment.
! Knurled handle
" Thumb nut
