80
!
"
Panel Saw
K3 basic/K3 winner
Faults
11.8 Adjusting the locking force of the parallel cutting fence
Attention: Adjusting the clamping force is only possible with the K3 winner circular saw.
Attention! Risk of material damage! Only adjust if the clamping force of the parallel cutting fence is not
sufficient. If the clamping force is too great, it will damage the parallel cutting fence and the fence hous-
ing.

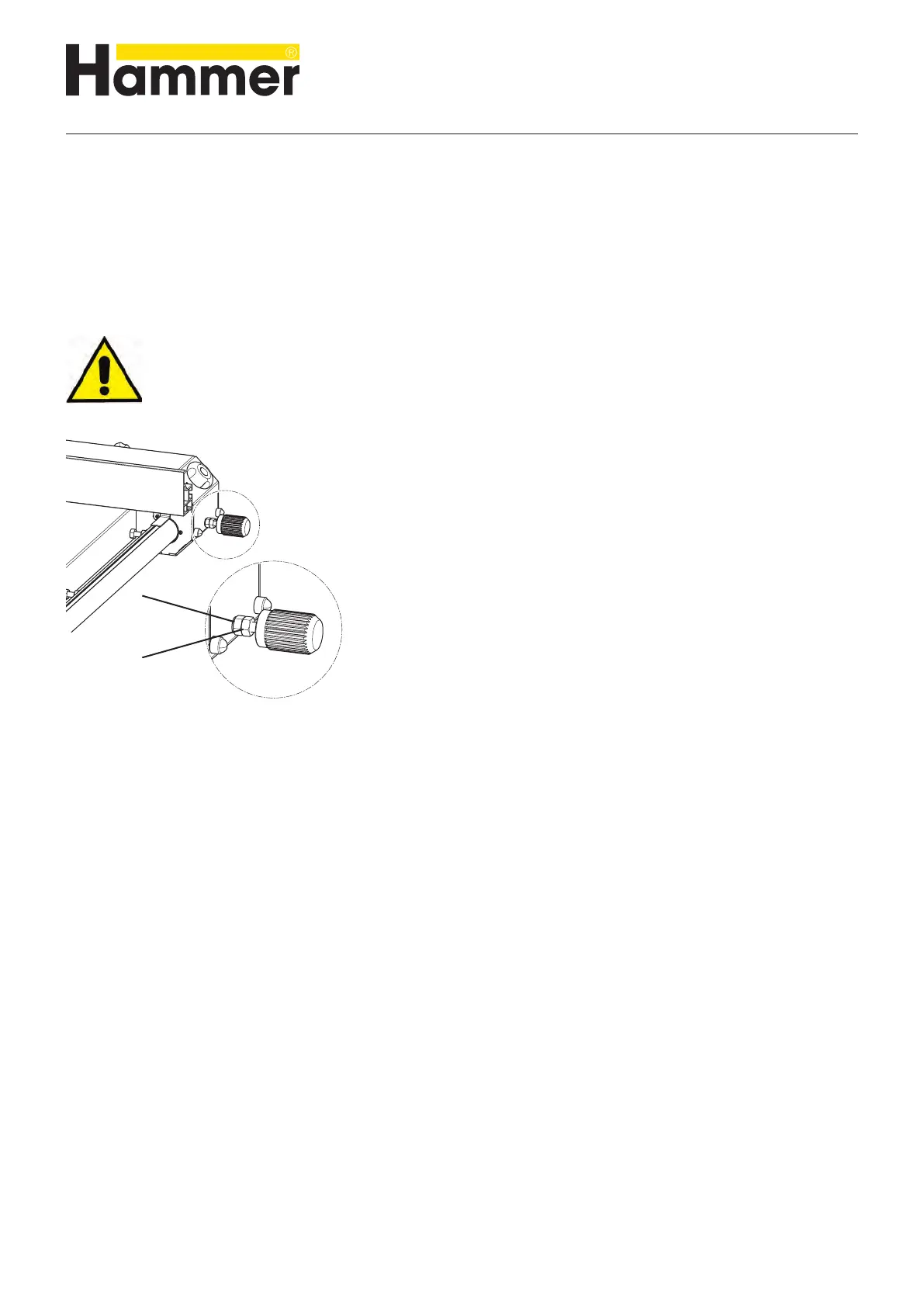

Fig. 118: Adjusting the locking force of the parallel cutting fence
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Hold the inner nut tight with a spanner.
3. Loosen the counter nut with a spanner.
4. Turn the inner nut half a turn anti-clockwise.
5. Tighten the counter nut.
6. Check the clamping force and adjust if necessary.
! Nut
" Counter nut
