Panel Saw
K3 basic/K3 winner
Making adjustments and preparations
Attention: Only use original manufacturer tools!
Attention! Minimum tightening torque: 20 Nm!
8.10 Splitter
8.10.1 Loosening/adjusting the splitter

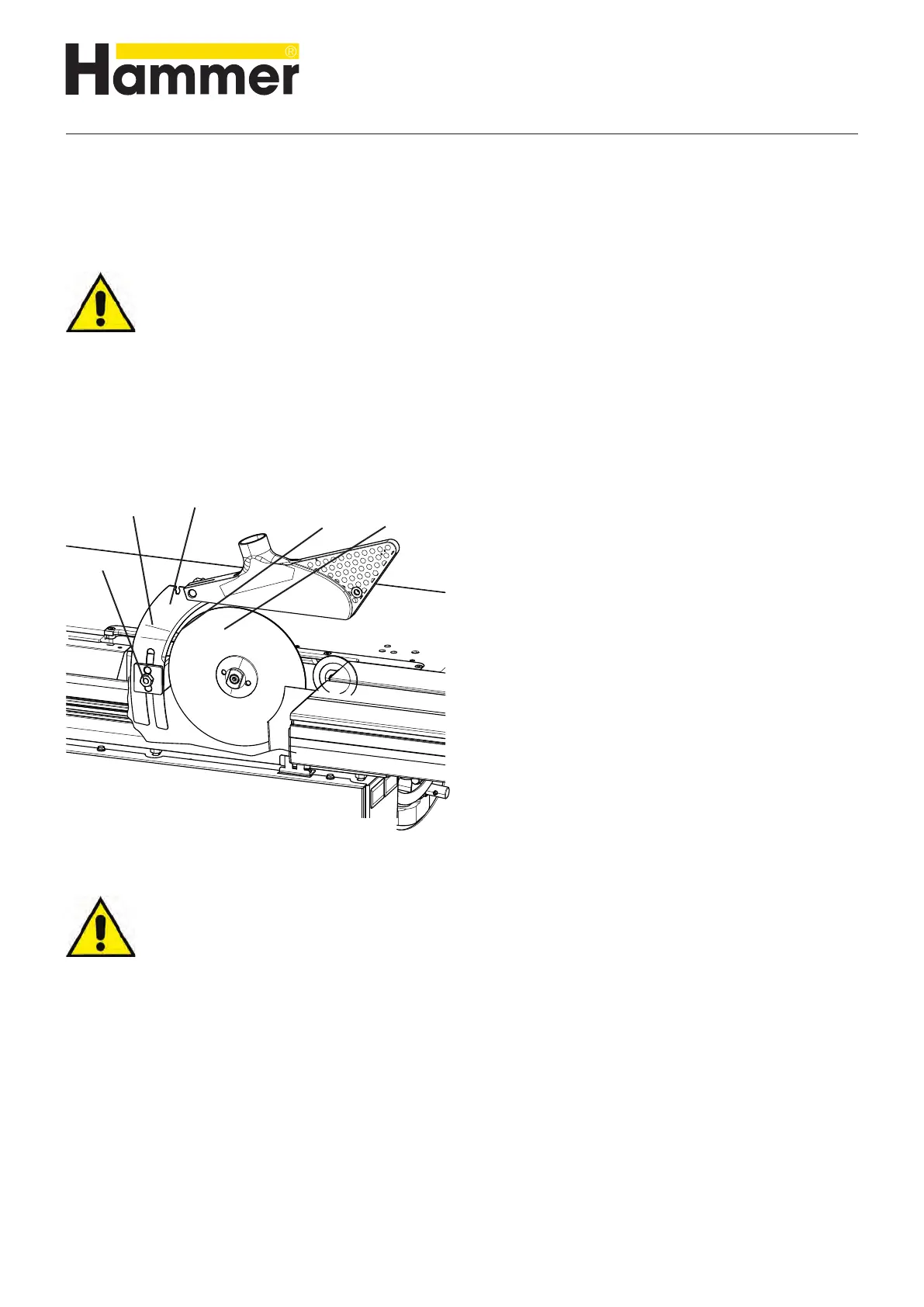

Fig. 56: Setting the splitter
1. Prepare to change tooling.
2. Loosen the nut.
3. Move the splitter so that there is always a space of 3
to 8 mm between the saw blade and the splitter.
4. The marking on the splitter must match the top edge
of the sliding table at the max. cutting height (inde-
pendently of the saw blade used).
5. Tighten the nut.
! Nut
" Marking
# Splitter
$ Distance
% Saw blade
Attention! Minimum tightening torque: 25 Nm!
