79
!
"
!
"
#
$
Panel Saw
K3 basic/K3 winner
Faults
Attention: Readjusting the height is only possible with the K3 winner circular saw.
11.7 Adjusting/correcting the parallel cutting fence angle
Attention: Readjusting the angle is only possible with the K3 winner circular saw.
Required tools
- 2 pcs. Spanner 13 mm

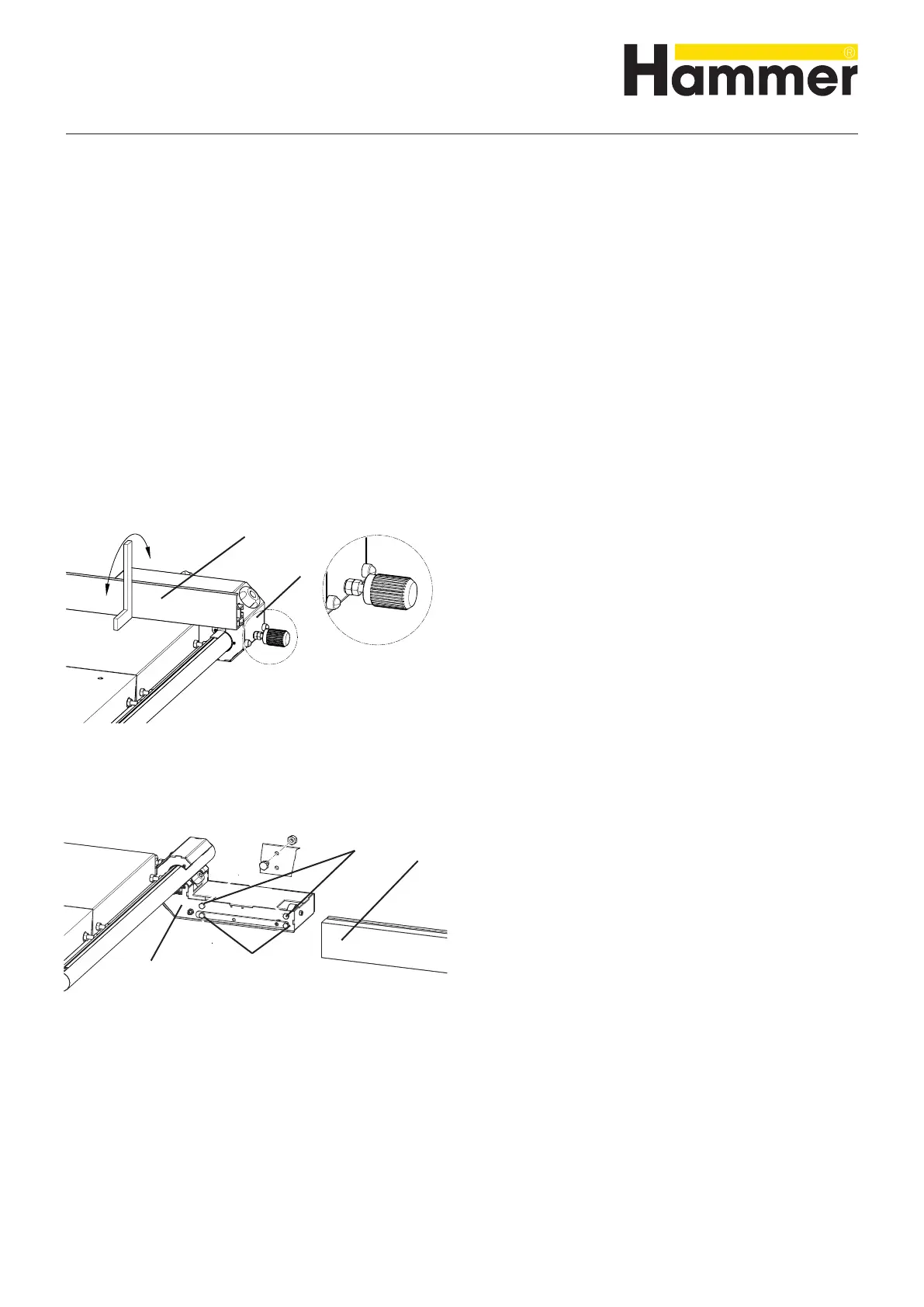

Fig. 116: Check the parallel cutting fence guide angle
Fig. 117: Readjust the parallel cutting fence guide angle
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Check the guide angle and readjust if required.
3. Remove the guide.
4. Tilt out the parallel cutting fence.
5. Adjusting in the „A“ direction:
a) Hold the screw tight with the spanner.
b) Loosen the inner nut with a spanner.
c) Unscrew the screw by half a turn.
d) Tighten the inner nut.
6. Adjusting in the „B“ direction:
a) Hold the screw tight with the spanner.
b) Loosen the inner nut with a spanner.
c) Unscrew the screw by half a turn.
d) Tighten the inner nut.
7. Assemble the guide.
8. Tilt the parallel cutting fence back.
9. Check the adjustment of the angle with a bevelled
steel square and readjust if required.
! Guide
" Parallel cutting fence
# Screw
$ Screw
