Panel Saw
K3 basic/K3 winner
Making adjustments and preparations
8.9.2 Setting the height/angle of cut

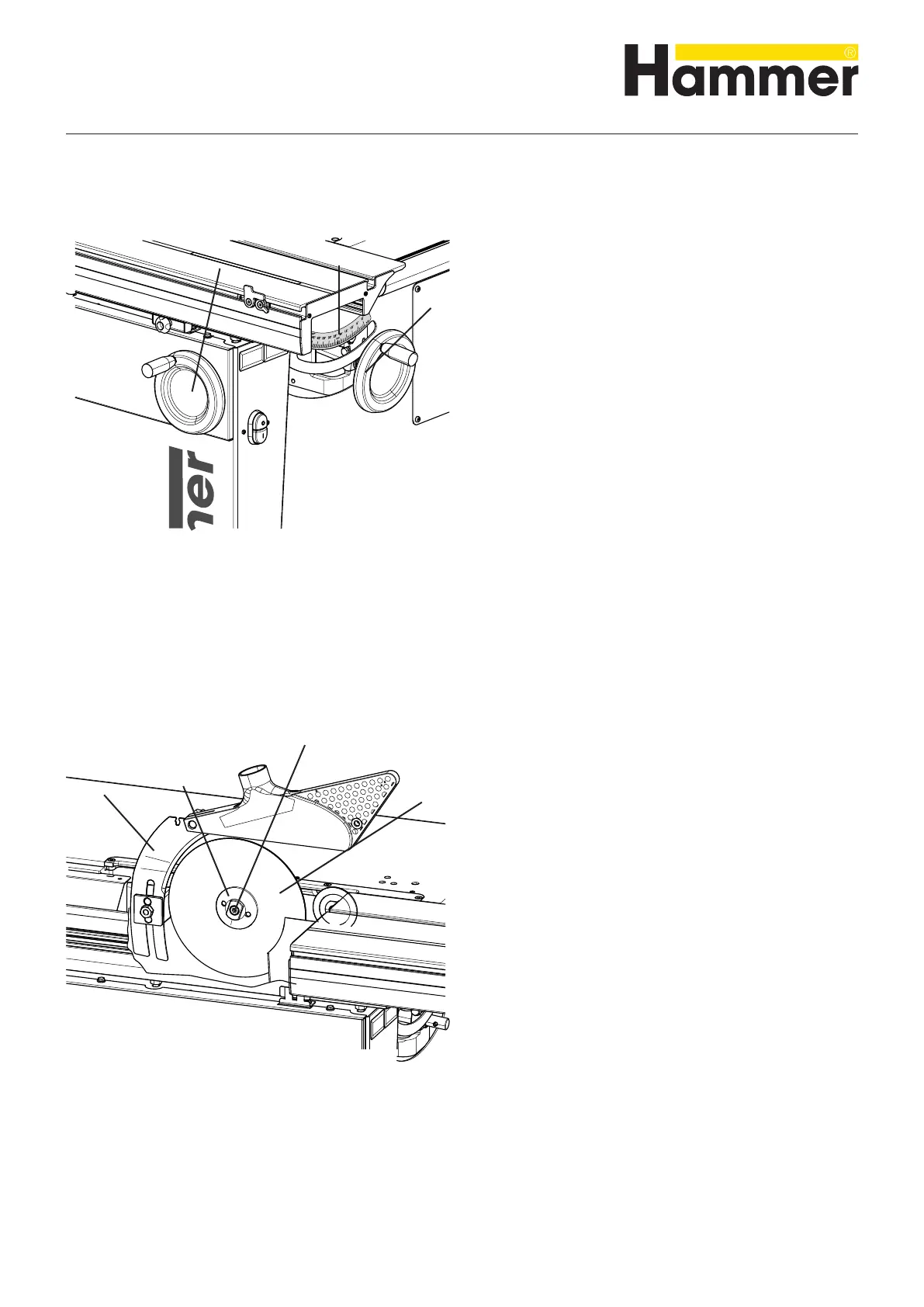

Fig. 54: Setting the height/angle of cut
The machine is only equipped with a single hand wheel.
Depending on the adjustment to be made, place the
hand wheel on the appropriate shaft.
The cutting height is set using the hand wheel on the
shaft:
- Clockwise: higher
- Anti-clockwise: lower
Only set the cutting height to the required height.
The cutting angle is set using the hand wheel on the
arbor:
- Clockwise: towards 0°
- Anti-clockwise: towards 45°
The cutting angle is displayed on the scale.
!Shaft
" Scale
# Shaft
The cutting height or alternatively the cutting angle are
adjusted with one hand wheel.
8.9.3 Changing the saw blade
Fig. 55: Changing the saw blade
Required tools:
• Allen key 10 mm
• Spanner SW 22 mm
1. Prepare to change tooling.
2. Loosen the splitter to install a larger saw blade.
3. Hold the flange tight with the spanner.
4. Loosen the socket head cap screw with an Allen key.
5. Remove the socket head cap screw and flange.
6. Remove the old saw blade and place the new saw
blade on the arbor.
7. Replace the flange (take note of the assembling posi-
tion). Hold the flange tight with the spanner.
8. Screw in the socket head cap screw with the Allen
key.
9. Adjust the splitter if a larger or smaller saw blade
has been fitted in.
10. Prepare the machine to operate.
11. Adjust the saw guard according to the saw blade.
! Splitter
" Flange
§ Socket head cap screw
$ Saw blade
