Panel Saw
K3 basic/K3 winner
Maintenance
10.3 Cleaning the bearing tracks
1. Switch the machine off and ensure that it cannot be
switched on again.
2. Remove dust and shavings from the bearing tracks.
3. Remove any resin residue: resin remover
Order No. 10.0.022 (0,5 l) or 10.0.023 (1,0 l).
! Bearing tracks

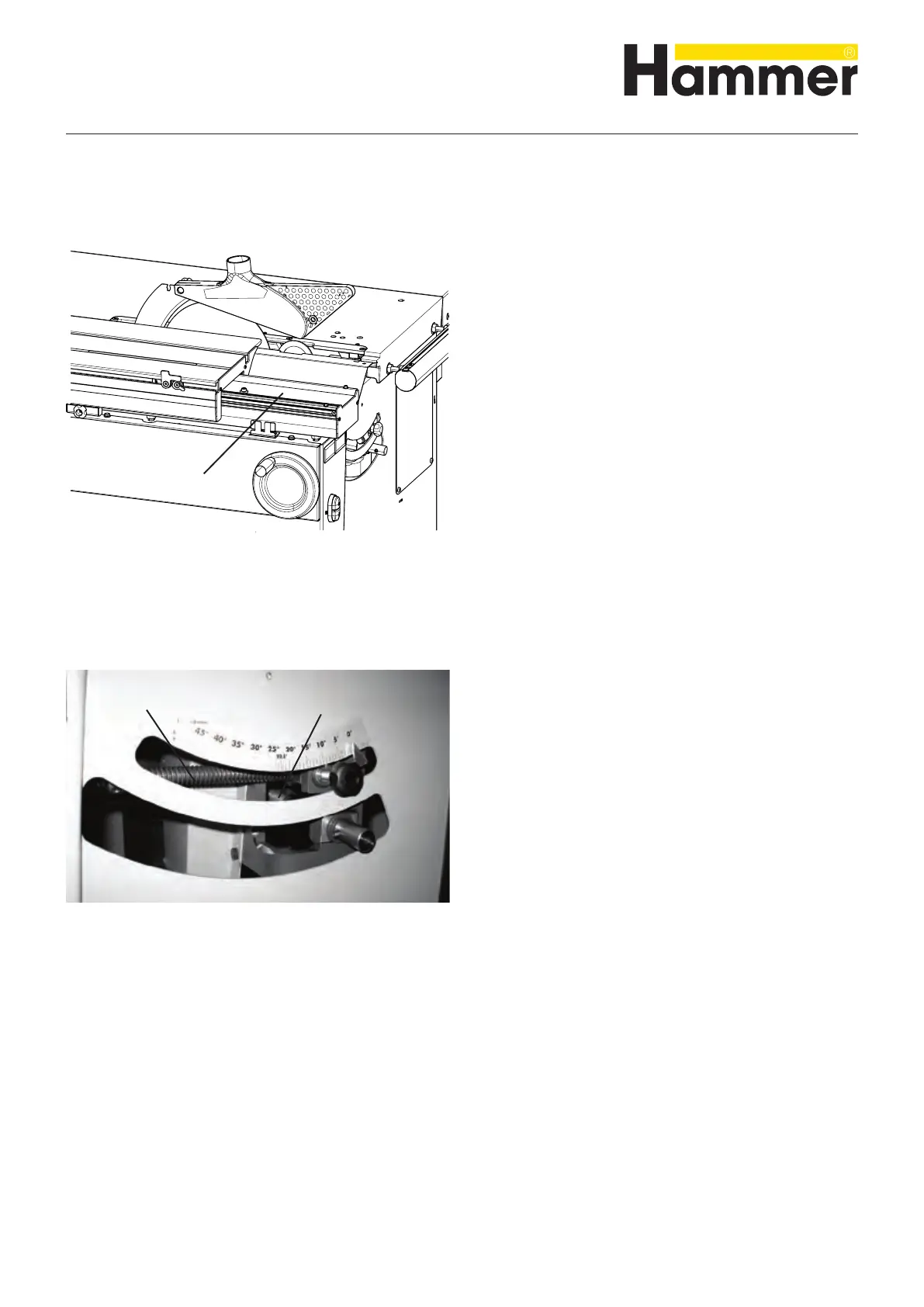

Fig. 102: Cleaning the bearing tracks
10.4 Lubricating the height spindle and tilting spindle circular saw
Fig. 103: Height spindle/Tilting spindle
1. Switch the machine off and ensure that it cannot be
switched on again.
Lubricating the height spindle:
2. Turn the circular saw into the topmost position.
3. Through the frame opening, lubricate the height
spindle with regular machine grease.
4. Turn the circular saw into the lowest and back into
the topmost position.
Lubricating the tilting spindle:
5. Tilt the circular saw to a 45° position.
6. Through the frame opening, lubricate the tilting
spindle with regular machine grease.
7. Tilt the circular saw to a 90° position and then back
to a 45° position.
! Height spindle
" Tilting spindle
