Panel Saw
K3 basic/K3 winner
Making adjustments and preparations
! Scoring blade
" Scoring flange
# Flat-head screw
$ Special spanner

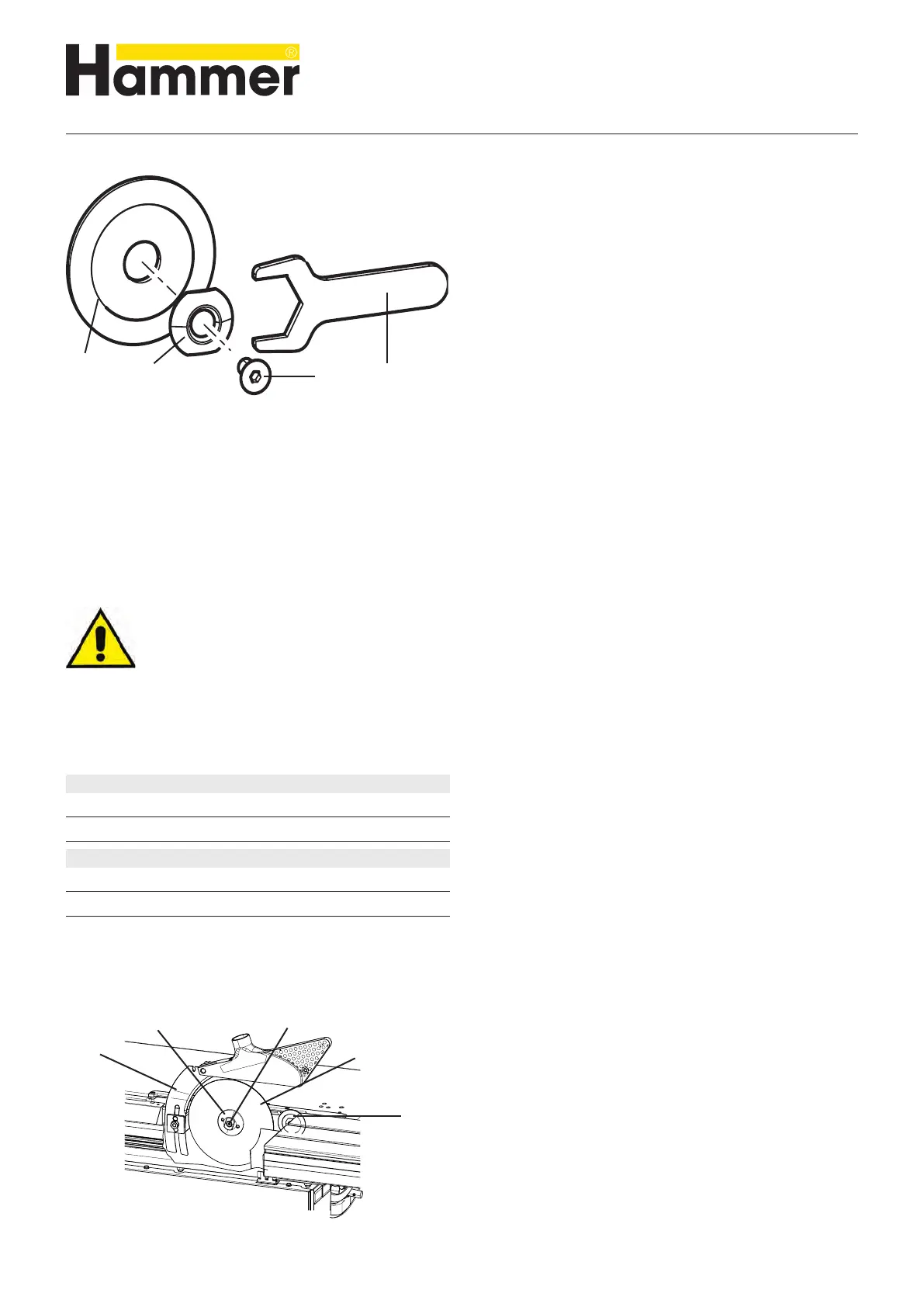

Fig. 66: Scoring blade/Scoring flange/Flat-head screw/Special spanner
8.13 Grooving tools
8.13.1 Tools
Only use original HAMMER tools (HAMMER-catalogue).
Only the following left-hand cutting tools are authorised:
Warning: Risk of injury: Only use grooving tools, which are suited to manual operation!
Slitting saw CE-Specifications
Diameter, max. 180 mm
Width 5 bis 20 mm
Slotting Cutters US-Specifications
Diameter, max. 7‘‘
Width max. 3/4‘‘
8.13.2 Chucking the grooving tools
Fig. 67: Removing the saw blade
Required tools:
• Allen key 10 mm
• Spanner SW 24 mm
• Allen key 5 mm
! Splitter
" Flange
# Socket head cap screw
$ Saw blade
% Scoring blade
