Making adjustments and preparations
8.10.2 Assembling/removing/changing the splitter

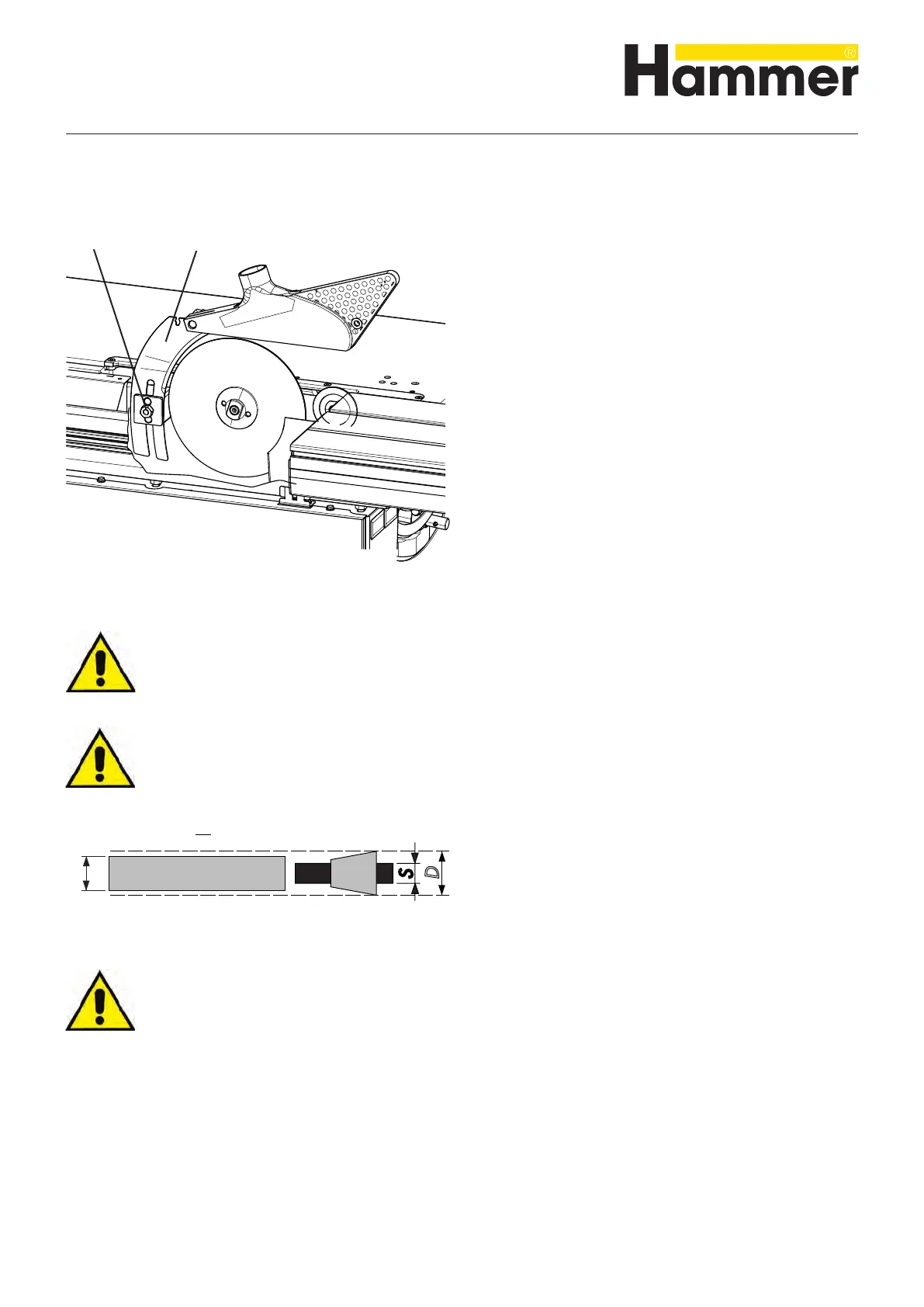

Fig. 57: Removing the splitter
Removing the splitter:
1. Loosen the nut.
2. Remove the splitter.
3. Tighten the nut.
! Nut
" Splitter
Fig. 58: Splitter thickness (d), saw blade body (S), sawtooth width (D)
Attention! Operation without the splitter is only allowed if dado tooling is used!
Attention! Minimum tightening torque: 25 Nm!
Attention! A splitter is required when working with circular saw blades!
The splitter has to be adapted to the thickness of the saw
blade. The splitter thickness has to be between that of the
saw blade body and the width of the sawtooth.
Fitting in/changing the splitter:
To Next Page
