Panel Saw
K3 basic/K3 winner
Making adjustments and preparations
8.7 Parallel cutting fence
8.7.1 Sliding

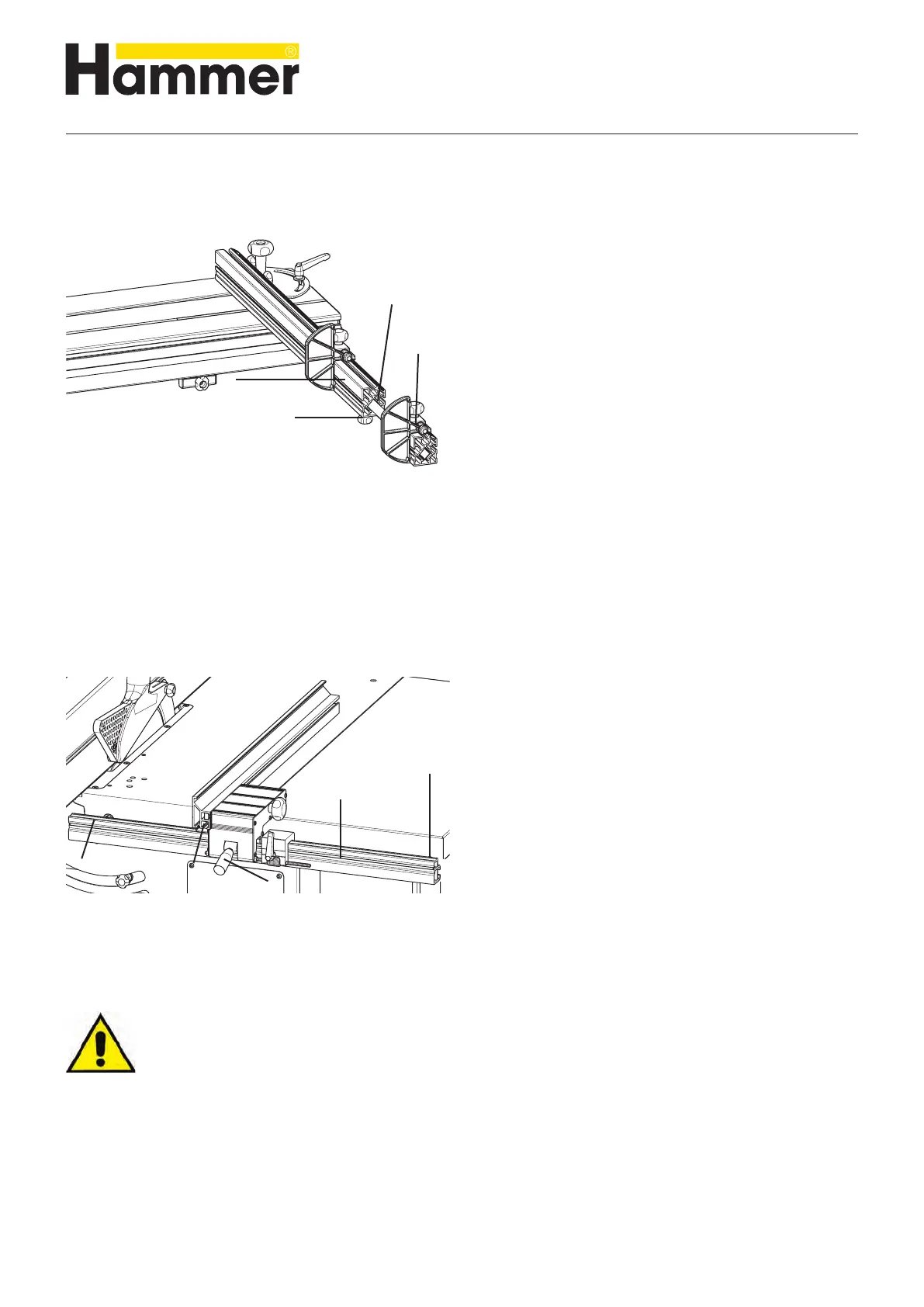

Fig.. 42: Parallel cutting fence K3 basic
K3 basic:
1. Loosen the clamping lever.
2. Read the dimension from the scale on the front edge
of the indicator.
3. Move the scale by the measurement required to
adapt the scale to the different widths of the saw
blade:
- Loosen the four flat nuts on the track.
- Move the track.
- Retighten the four flat nuts.
4. Clamp the clamping lever.
! Scale $Track
" Indicator %Nuts
# Clamping lever
Attention! When using a table extension, the distance between the upper edge of the track and the upper
edge of the table has to measure 17 mm exactly so that the position of the table extension is level with
that of the table.
8.6 Crosscut fence-extension
Fig. 41: Crosscut fence-extension
The crosscut fence may be fitted with an extension as an
option.
1. Loosen the thumb screw.
2. Move the crosscut fence extension to the desired
measurement.
The measurement (cutting width), is read from the
scale on the profile edge of the crosscut fence.
3. Tighten the thumb screw.
! Scale
" Extension
# Thumb screw
$ Crosscut fence
